MS3476A10-6S Mil-Spec Circular Connector 6-Way Plug Kit

Name: MS3476L10-6S, BLACK, PLUG CONNECTOR
SKU: MS3476A10-6S
Price: 39.01 USD
Availability: InStock

Aero-Electric

Item No. MS3476A10-6S

$39.008 / EA

Features & details

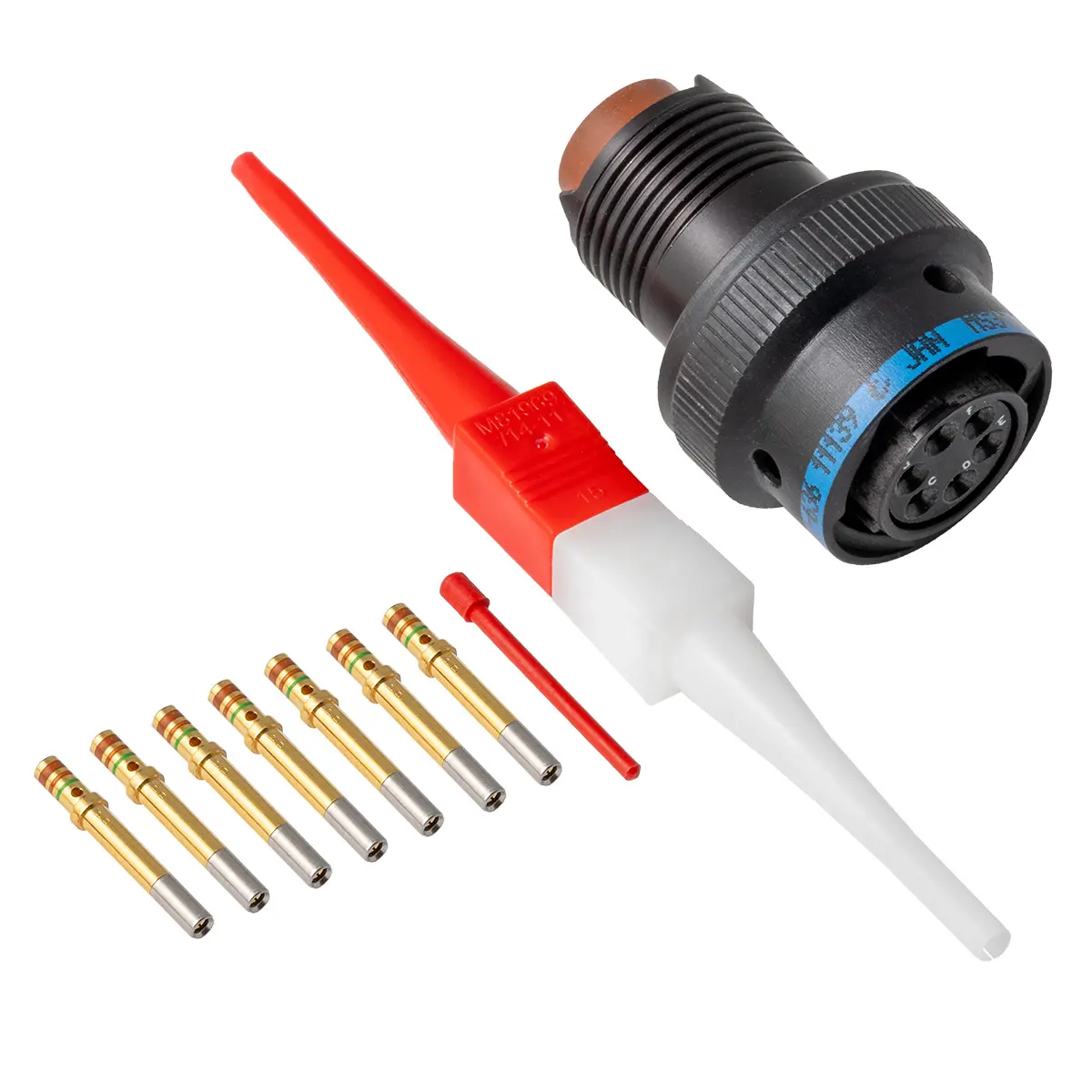

The MS3476A10-6S is a 6-way plug circular connector kit with socket (female) contacts. The connector housing is black anodized aluminum. To create a mated pair, a receptacle connector kit is required.

MS3476A10-6S Kit Includes

(1) 6-Way Plug Connector Body.
(6) Size 20 socket (female) contacts, 22-18 AWG, 7.5 A ea. M39029/5-115
(1) Insert/Removal Tool M81969/14-02
(1) Cavity Plug MS27488-20-2 The quantity included varies.

Mating Connector

Please refer to the Mating Connectors tab on this page.

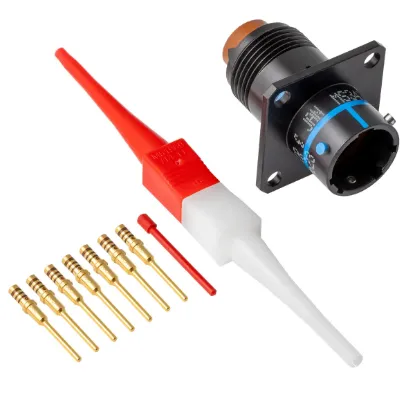

4-Bolt Flanged ReceptacleMS3470A10-6P
Jam-Nut ReceptacleMS3474A10-6P

Required Crimp Tooling

DMC Crimp FrameAF8 requires TH1A
DMC TurretTH1A requires AF8
DMC PositionerK1S requires AFM8 (size 20 contacts only)
DeutschHDT-48-00 all-in-1 tool.
Econo Tool18890 size, 20 contacts only.

Shrink Boots

Straight202K132-25-0
90°222K132-25-0

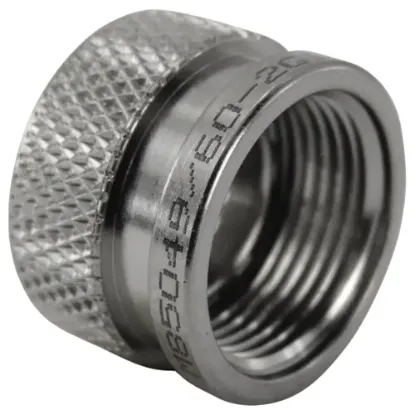

Shrink Boot Adapter

M85049/60-2G10A

Technical Information

The Specifications tab lists technical data as well as other useful information.
The Documents section lists CAD models, technical drawings, and catalog pages when available.

Notes

Please refer to the Mating Connectors, Related Items, and Crimp Tools tabs to purchase the mating connector, heat shrink boots, and accessories.

Product specification

Series / Range	Mil-Spec
Shell Size	10
Wire Range (AWG)	22-18
Contact Gender	Socket (Female)
Shell Style	Plug
Shell Plating	Black Anodized
Replacement Contacts	M39029/5-115
Insert Arrangement	10-6
No. Of Positions	6
Contact Size	20
Mixed Contact Sizes	No
90º Shrink Boot	222K132-25-0
Shrink Boot Adapter	M85049/60-2G10A
Connector O.D.	0.926" (23.52 mm)
DMC Crimp Frame	M22520/1-01
Current Rating Per Contact	7.5 A
Metal Insert Tool	DAK83-20B
Metal Removal Tool	DRK83-20B
Filler Plug	MS27488-20-2
Insert / Removal Tool	M81969/14-02
Mating Flange Connector	MS3470A10-6P
Mating Jam Nut Connector	MS3474A10-6P
DMC Positioner / Turret	M22520/1-02
Shell Material	Aluminum
Straight Shrink Boot	202K132-25-0
Alumel Contact	710104
Chromel Contact	710106
Termination Style	Crimp

Price $39.008 / EA
