MS3476A18-8P Mil-Spec Circular Connector 8-Way Plug Kit

Name: MS3476A18-8P PLUG CONNECTOR BLACK
SKU: MS3476A18-8P
Price: 57.17 USD
Availability: InStock

Aero-Electric

Item No. MS3476A18-8P

$57.167 / EA

Features & details

The MS3476A18-8P is a 8-way plug circular connector kit with pin (male) contacts. The connector housing is black anodized aluminum. To create a mated pair, a receptacle connector kit is required.

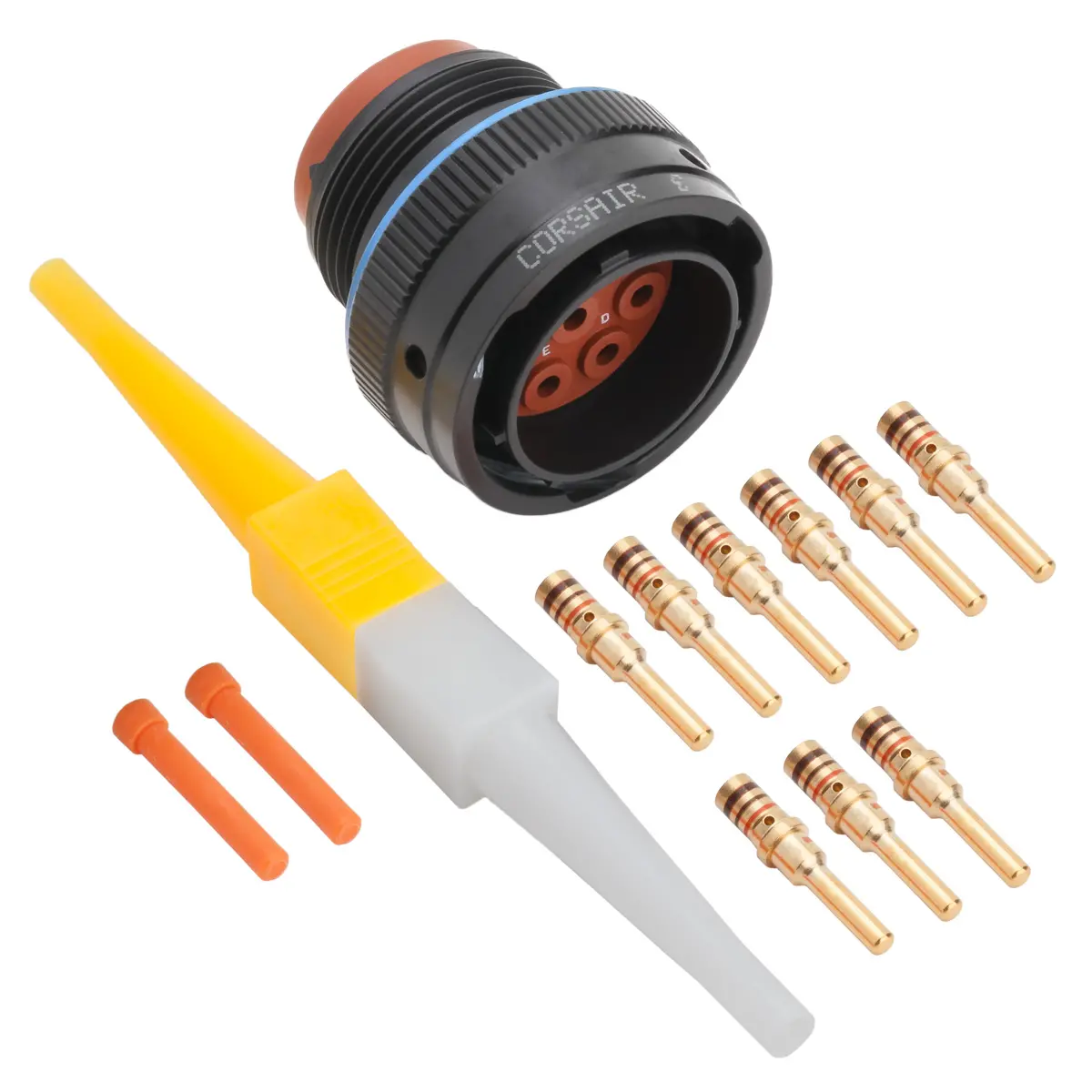

MS3476A18-8P Kit Includes

(1) 8-Way Plug Connector Body.
(8) Size 12 pin (male) contacts, 14-12 AWG, 23 A ea. M39029/4-113
(1) Insert/Removal Tool M81969/14-04
(1) Cavity Plug MS27488-12-2 The quantity included varies.

Mating Connector

Please refer to the Mating Connectors tab on this page.

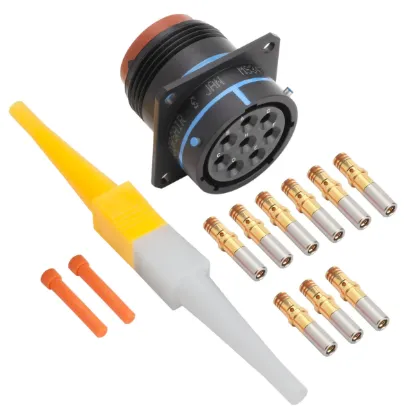

4-Bolt Flanged ReceptacleMS3470A18-8S
Jam-Nut ReceptacleMS3474A18-8S

Required Crimp Tooling

DMC Crimp FrameAF8 requires TH1A
DMC TurretTH1A requires AF8
DeutschHDT-48-00 all-in-1 tool.
Econo Tool18860 size, 12 contacts only.

Shrink Boots

Straight202K153-25-0
90°222K152-25-0

Shrink Boot Adapter

M85049/60--2G18A

Technical Information

The Specifications tab lists technical data as well as other useful information.
The Documents section lists CAD models, technical drawings, and catalog pages when available.

Notes

Please refer to the Mating Connectors, Related Items, and Crimp Tools tabs to purchase the mating connector, heat shrink boots, and accessories.

Product specification

Series / Range	Mil-Spec
Shell Size	18
Wire Range (AWG)	14-12
Contact Gender	Pin (Male)
Shell Style	Plug
Shell Plating	Black Anodized
Replacement Contacts	M39029/4-113
Insert Arrangement	18-8
No. Of Positions	8
Contact Size	12
Mixed Contact Sizes	No
90º Shrink Boot	222K152-25-0
Shrink Boot Adapter	M85049/60-2G18A
Connector O.D.	1.391" (35.33 mm)
DMC Crimp Frame	M22520/1-01
Current Rating Per Contact	23 A
Metal Insert Tool	DAK83-12B
Metal Removal Tool	DRK83-12B
Filler Plug	MS27488-12-2
Insert / Removal Tool	M81969/14-04
Mating Flange Connector	MS3470A18-8S
Mating Jam Nut Connector	MS3474A18-8S
DMC Positioner / Turret	M22520/1-02
Shell Material	Aluminum
Straight Shrink Boot	202K153-25-0
Termination Style	Crimp

Price $57.167 / EA

Shipping details

Availability: 14 Each In Stock, ready to be shipped

Quantity:

Configure as matched kit

Documents

Pinout sheet (18-8)

MS3476A18-8P Mil-Spec Connector Datasheet

AS9120B & ISO 9001 certified
Genuine components
We only sell genuine components and have a strict counterfeit policy.
How we prevent counterfeits
- Vetted suppliers only. We buy from thoroughly vetted suppliers, and every receipt is inspected and stored securely.
- Manufacturer markings kept. Where the manufacturer brands or marks its parts, those markings stay on them. Not every manufacturer marks its parts.
- Suspect parts are quarantined. If we encounter a suspect part, it's quarantined and investigated, and reported to the relevant authorities.
Our processes are audited under AS9120B. Buying from the gray market carries a real counterfeit risk, even when lead times are long. If you suspect a counterfeit, quarantine it and contact us. Read more
Aero-Electric
Aero Electric is our main product line for this item. We also reserve the right to supply an equivalent part from any MIL QPL (Qualified Products List) manufacturer in case of shortages or long lead times from our main vendor.
