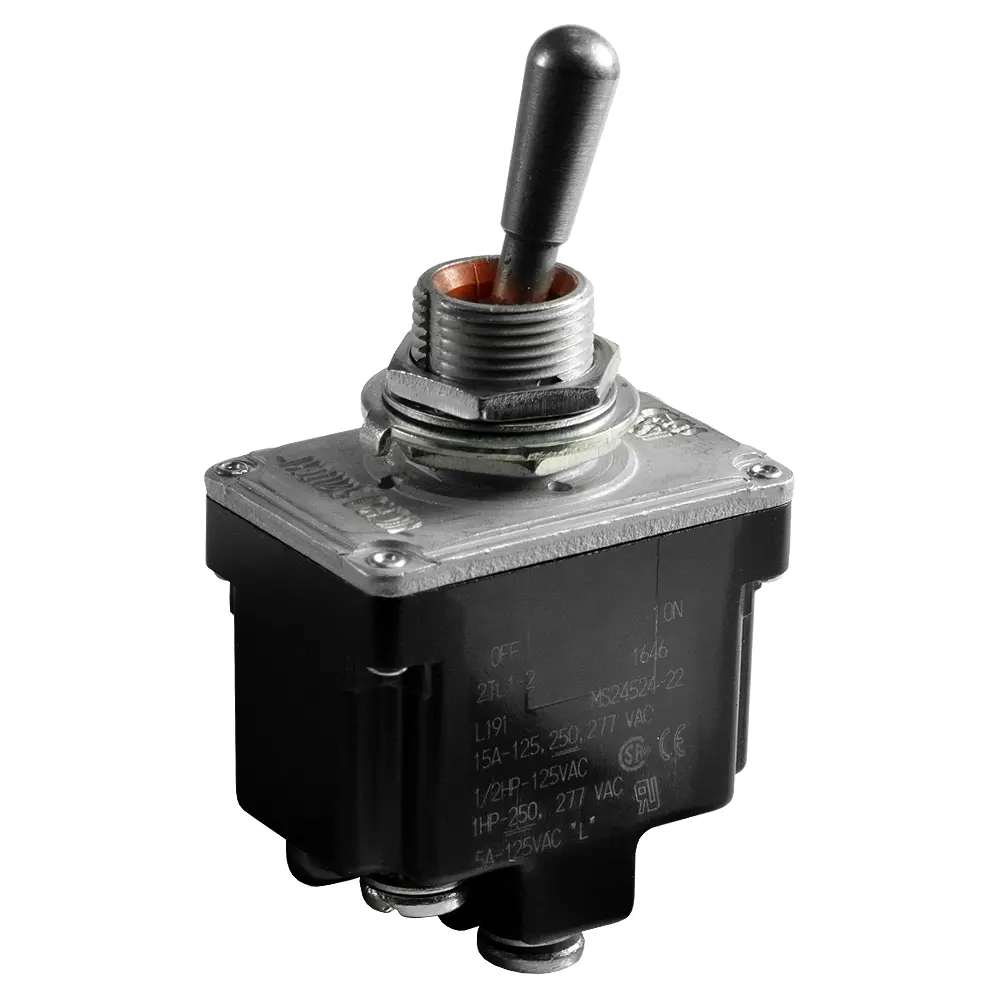

MS24524-22 Mil-Spec OFF-ON Sealed Switch DPST 2TL1-2

Honeywell
Item No. MS24524-22
$41.089 / EA

Price Breaks

PRICE BREAKS - The more you buy, the more you save
Quantity / EA Price / EA Ext. Price
1 $41.089 $41.09
10 $39.585 $395.85
25 $38.333 $958.33
50 $36.829 $1841.45
100 $36.078 $3607.80
250 $35.577 $8894.25
Features & details

The Honeywell Micro Switch MS24524-22 TL series toggle switch is an ideal switch for demanding applications, compliant to MIL-DTL-3950, this high performance switch is a logical choice for use in environments where sealing and resistance to shock and vibration are required. The MS24524-22 is particularly suitable for applications in off-highway, aviation, commercial and industrial equipment. This compact, environmentally sealed switch is available in single and double pole configurations.

Switch Operation:

With the switch mounted with the keyway facing down , The switch acts as an OFF-ON switch that Latches in the ON position. bridge both poles together to get a full 30 amp capacity switch.

Common Uses
  • Cooling fans
  • Pumps
  • Ignition systems
  • Weapons systems

  • Switch Specs:
    • Double Pole -Single Throw (DPST)
    • 4 screw
    • Screw mounting holes are #6
    • Mounting threads are 15/32
    • .05-28 Volts DC switch will transfer 15 amps
    • .05-277 Volts AC switch will transfer 10 amps
    • A 2 screw SPST verison of this switch is available Here
    • Silver cadmium oxide contacts
  • Circuitry / Operating Action:

    MS24523-22 diagram

    Datasheets:

     MS24524-22 / 2TL1-2 Datasheet
