MS3476L22-12P Mil-Spec Circular Connector 12-Way Plug Kit

Name: MS3476L22-12P PLUG CONNECTOR
SKU: MS3476L22-12P
Price: 73.48 USD
Availability: InStock

Aero-Electric

Item No. MS3476L22-12P

$73.484 / EA

Features & details

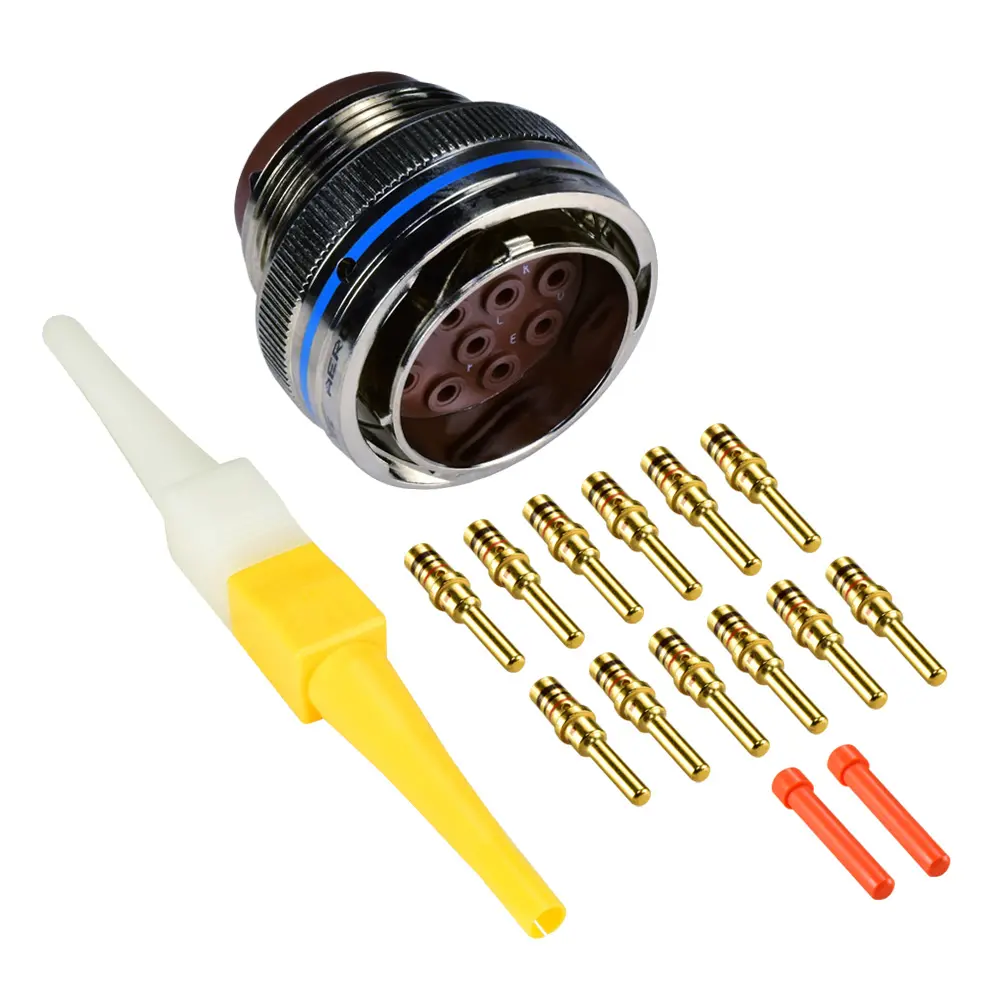

The MS3476L22-12P is a 12-way plug circular connector kit with pin (male) contacts. The connector housing is electroless nickel aluminum. To create a mated pair, a receptacle connector kit is required.

MS3476L22-12P Kit Includes

(1) 12-Way Plug Connector Body.
(12) Size 12 pin (male) contacts, 14-12 AWG, 23 A ea. M39029/4-113
(1) Insert/Removal Tool M81969/14-04
(1) Cavity Plug MS27488-12-2 The quantity included varies.

Mating Connector

Please refer to the Mating Connectors tab on this page.

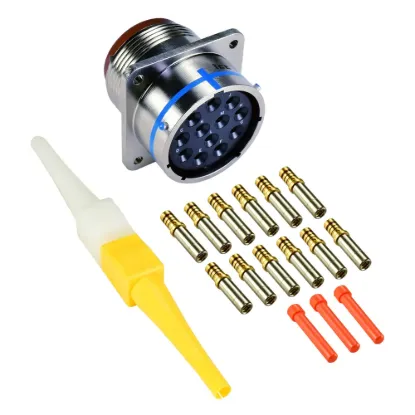

4-Bolt Flanged ReceptacleMS3470L22-12S

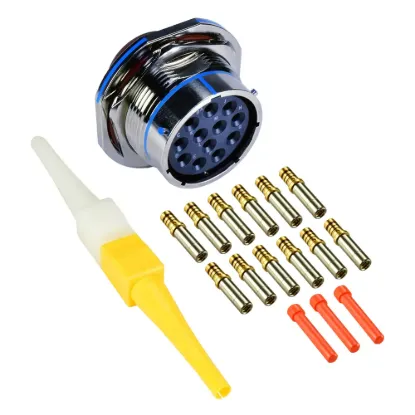

Jam-Nut ReceptacleMS3474L22-12S

Required Crimp Tooling

DMC Crimp FrameAF8 requires TH1A
DMC TurretTH1A requires AF8
DeutschHDT-48-00 all-in-1 tool.
Econo Tool18860 size, 12 contacts only.

Shrink Boots

Straight202K163-25-0
90°222K163-25-0

Shrink Boot Adapter

M85049/60--2G22N

Technical Information

The Specifications tab lists technical data as well as other useful information.
The Documents section lists CAD models, technical drawings, and catalog pages when available.

Notes

Please refer to the Mating Connectors, Related Items, and Crimp Tools tabs to purchase the mating connector, heat shrink boots, and accessories.

Product specification

Series / Range	Mil-Spec
Shell Size	22
Wire Range (AWG)	14-12
Contact Gender	Pin (Male)
Shell Style	Plug
Shell Plating	Electroless Nickel
Replacement Contacts	M39029/4-113
Insert Arrangement	22-12
No. Of Positions	12
Contact Size	12
Mixed Contact Sizes	No
90º Shrink Boot	222K163-25-0
Shrink Boot Adapter	M85049/60-2G22N
Connector O.D.	1.656" (42.06 mm)
DMC Crimp Frame	M22520/1-01
Current Rating Per Contact	23 A
Metal Insert Tool	DAK83-12B
Metal Removal Tool	DRK83-12B
Filler Plug	MS27488-12-2
Insert / Removal Tool	M81969/14-04
Mating Flange Connector	MS3470L22-12S
Mating Jam Nut Connector	MS3474L22-12S
DMC Positioner / Turret	M22520/1-02
Shell Material	Aluminum
Straight Shrink Boot	202K163-25-0
Termination Style	Crimp

Price $73.484 / EA

Shipping details

Availability: 13 Each In Stock, ready to be shipped

Quantity:

Configure as matched kit

Documents

Pinout sheet (22-12)

MS3476L22-12P Mil-Spec Connector Datasheet
