AS616-35SA Deutsch AS Series 55-Way Plug Kit

Name: AS,55 WAY,PLG,SKT,A KEY,YELLOW
SKU: AS616-35SA
Price: 135.60 USD
Availability: InStock

Deutsch

Item No. AS616-35SA

$135.60 / EA

Features & details

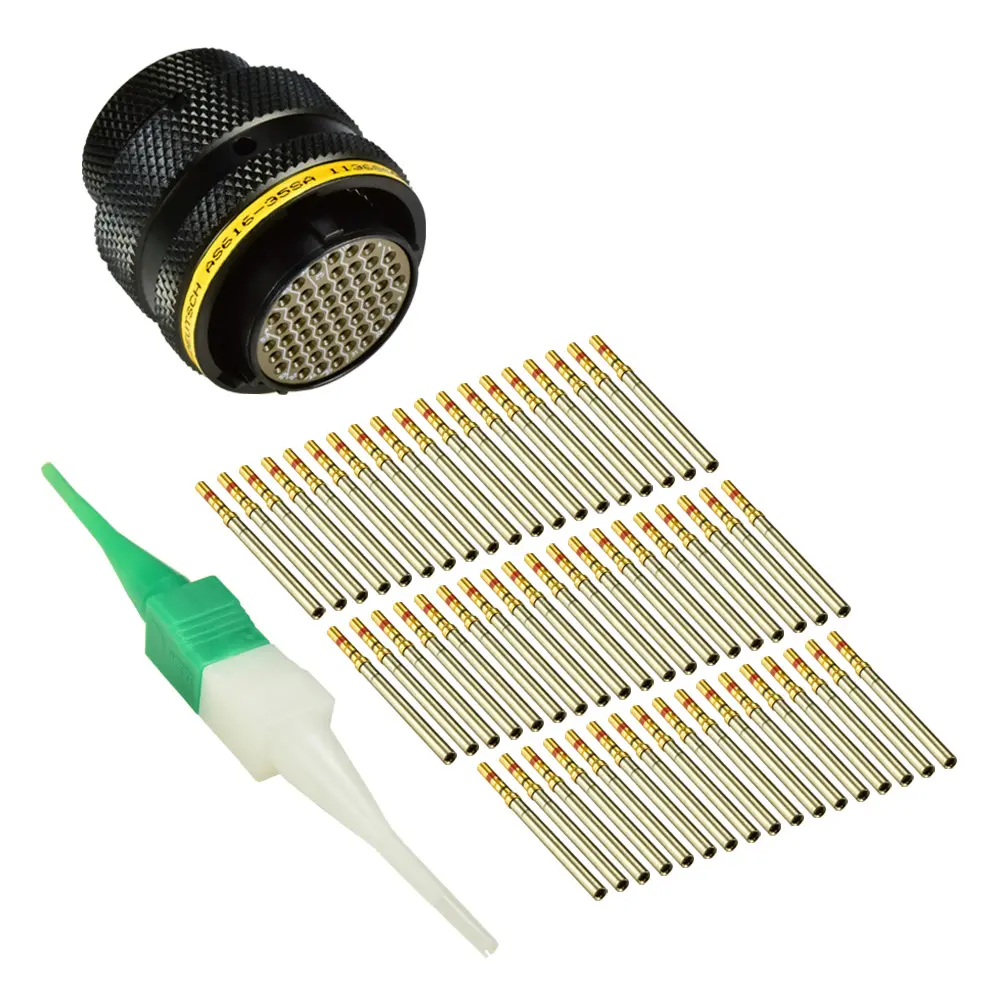

Deutsch Autosport AS616-35SA 55-way plug connector kit with socket (female) contacts in the A (yellow) key configuration.

The connector's yellow band identifies the A keyway (only the same color keyways will mate together)

Kit Includes

(1) 55-Way Plug Connector Body with Screen and Boot Termination Feature.
(55) Size 22 socket (female) contacts (26-22 AWG, 5 A each) 38943-22
(1) Insert/Removal Tool M81969/14-01

Required Crimp Tooling

Crimp FrameM22520/2-01
Positioner/TurretM22520/2-07

Shrink Boots

Straight202K153-25-0
90°222K152-25-0

Technical Information

The Specifications Tab lists technical data as well as other helpful information.
The Documents section lists CAD models, technical drawings, and catalog pages when available.

Notes

Please see the Mating Connector, Related Items, and Crimp Tools tabs to purchase the mating connector, heat shrink boots, and accessories.

Product specification

Keyway	A (Yellow)
Series / Range	AS
Shell Size	16
Wire Range (AWG)	26-22
Contact Gender	Socket (Female)
Shell Style	Plug
Shell Plating	Zinc (Black)
Replacement Contacts	38943-22
Insert Arrangement	16-35
No. Of Positions	55
Contact Size	22
90º Shrink Boot	222K152-25-0
Connector O.D.	1.24" (31.5 mm)
DMC Crimp Frame	M22520/2-01
Current Rating Per Contact	5 A
Filler Plug	600300-22
Insert / Removal Tool	M81969/14-01
MFG.	TE Connectivity

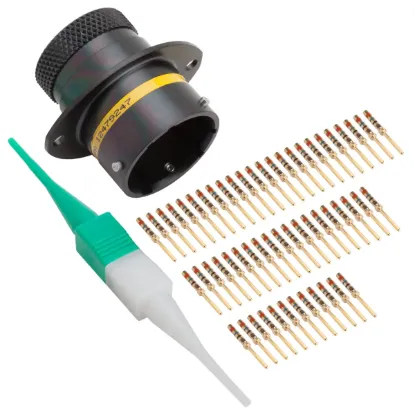

Mating Flange Connector	AS016-35PA

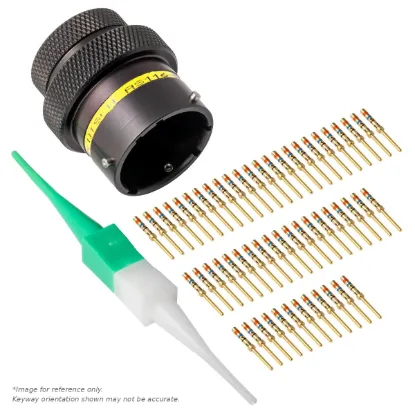

Mating Inline Connector	AS116-35PA
Mating PCB Connector	AS216-35PA
Protective Cap	AS816
DMC Positioner / Turret	M22520/2-07
Shell Material	Aluminum
Souriau Part Nbr	8STA61635SA
Souriau Part Nbr_1	8STA6-16-35SA
Straight Shrink Boot	202K153-25-0
Alumel Contact	605348
Chromel Contact	605346
Termination Style	Crimp

Price $135.60 / EA
