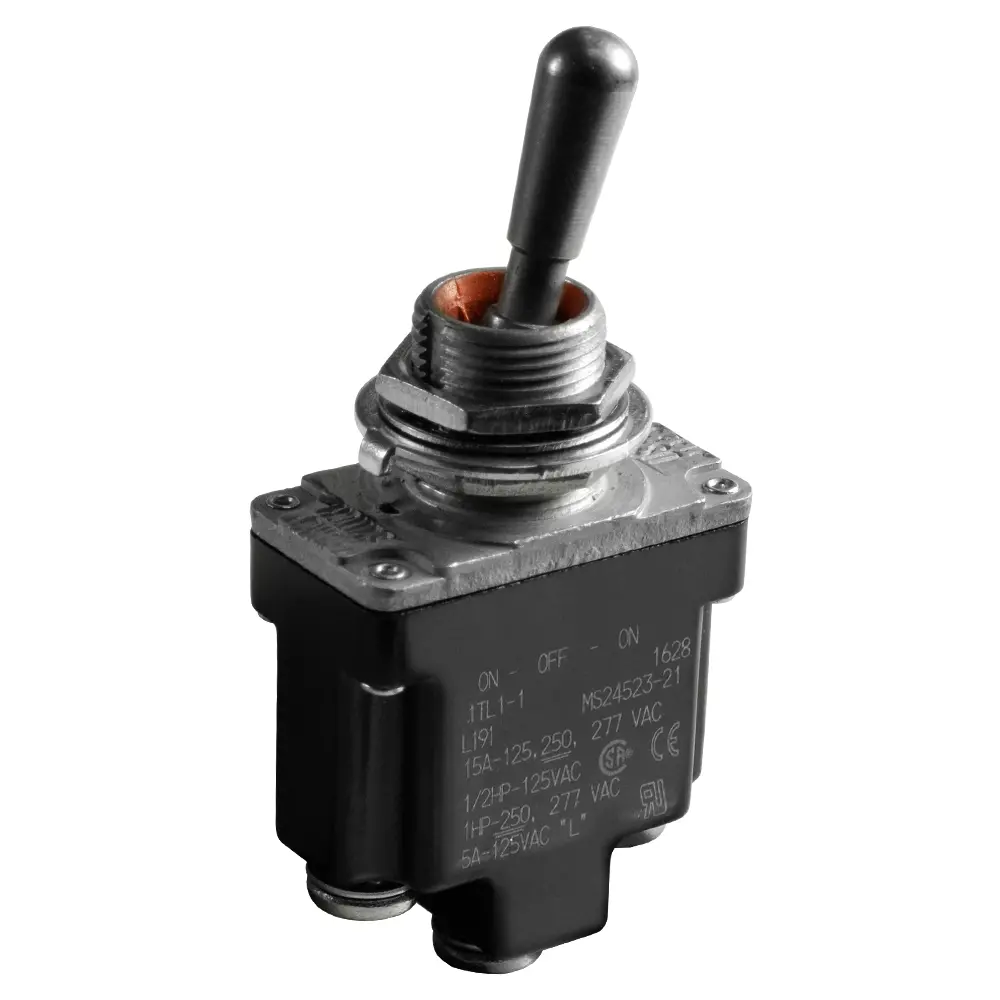

MS24523-21 Mil-Spec ON-OFF-ON Sealed Switch SPDT 1TL1-1

The Honeywell Micro Switch MS24523-21 TL series toggle switch is an ideal switch for demanding applications, compliant to MIL-DTL-3950, this high performance switch is a logical choice for use in environments where sealing and resistance to shock and vibration are required. The MS24523-21 is particularly suitable for applications in off-highway, aviation, commercial and industrial equipment. This compact, environmentally sealed switch is available in single and double pole configurations.

Switch Operation:

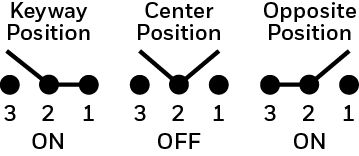

With the switch mounted with the keyway facing in any direction, The switch acts as an ON-OFF-ON switch that is Latched ON in both the upper and lower positions. The center position is OFF.

Common Uses:

• Hi/ low speed motor functions
• Up/down motor function
• Winch controls
• Defense systems
