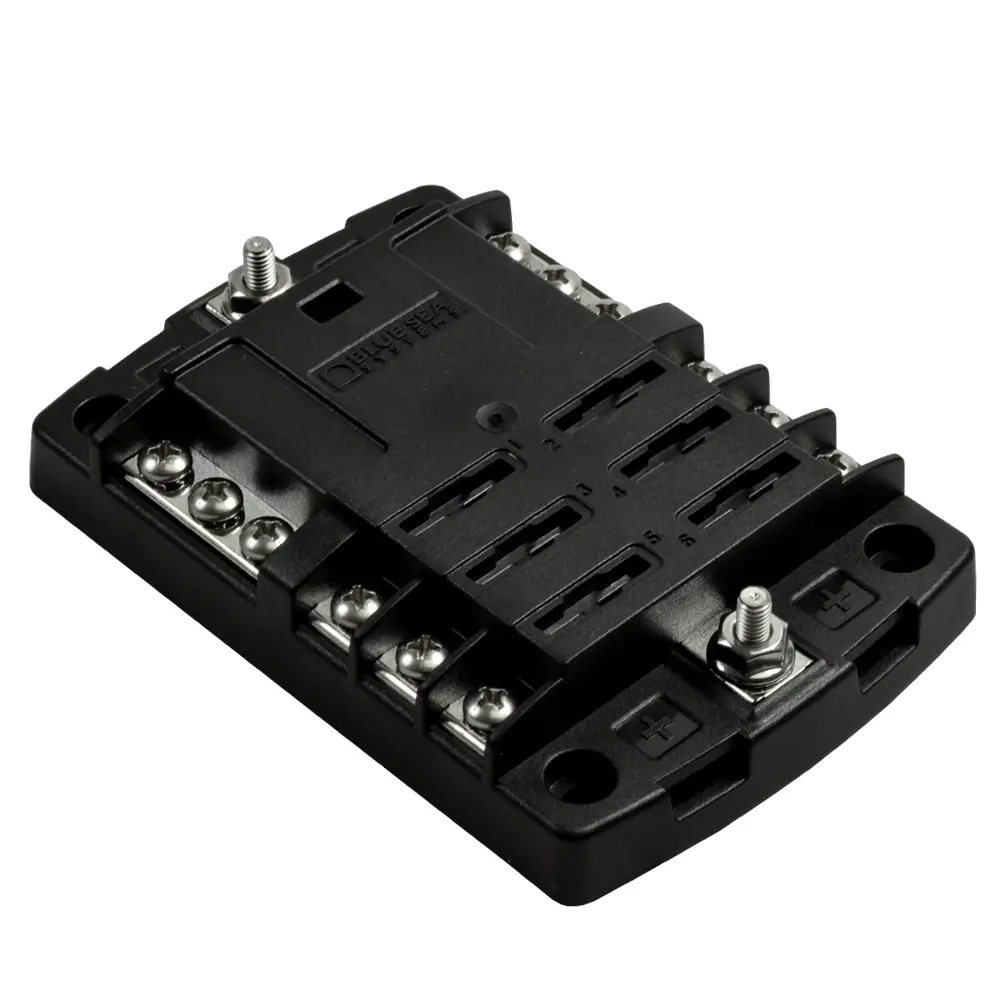

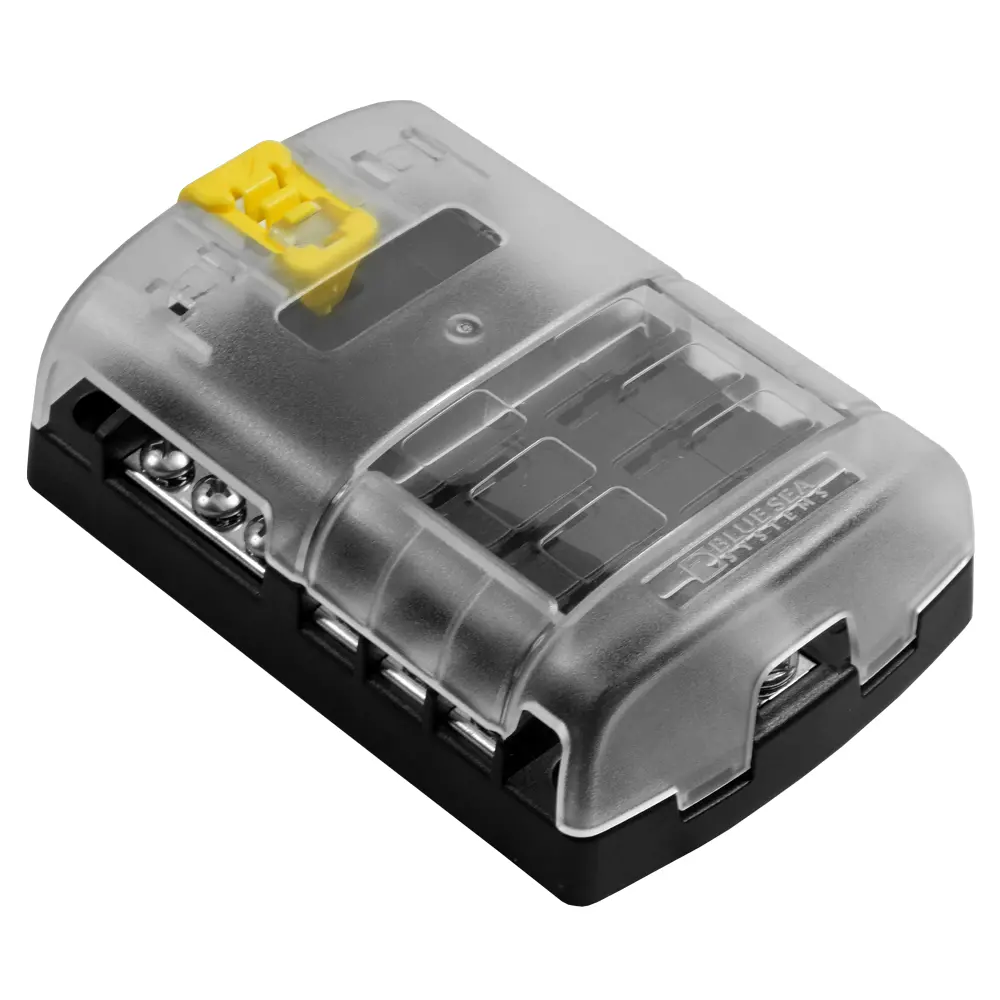

5025 ST Blade Fuse Block - 6 Circuits with NEGATIVE BUS and Cover

Blue Sea Systems
Item No. 5025
$57.712 / EA
Features & details
Consolidates branch circuits and in-line fuses
  • Positive distribution bus with #10-32 stud
  • Can be used for 24-hour circuits
  • Models available with or without a cover
  • Cover satisfies ABYC/USCG requirements for insulation, incorporates an easy to open push button latch providing easy access to fuses, storage for two spare fuses, and label recesses that accept Blue Sea
  • Systems" Small Format Labels for circuit identification
  • Fuse blocks with covers include 20 write-on circuit labels
  • Tin-plated copper buses and fuse clips
  • Accepts ring or snap fork type terminals
  • Accepts ATO® and ATC® fast acting blade fuses
  • Fuses sold separately

    Circuits 6

  • 100A per block
  • 30A per circuit
  • Maximum Voltage 32V DC
  • Mounting #8 Screw (M4)
  • Negative Bus #10-32 Stud
  • Positive Bus #10-32 Stud
  • Recommended Torque 24 in-lb (2.71 N·m)
  • Screw Terminal Type #8-32 Screws with captive star lock washer
  • Weight 0.55lb (0.25 kg
    Maximum Amperage Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.
