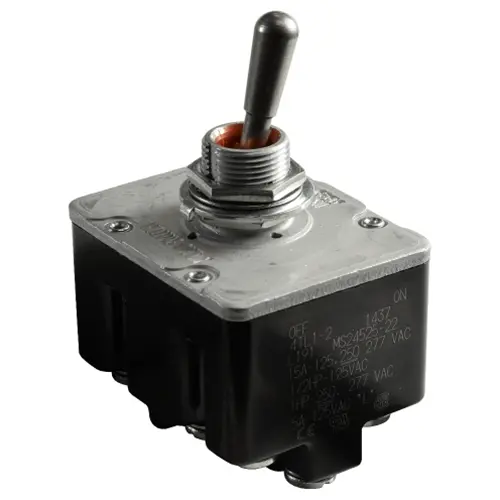

The Honeywell Micro Switch MS24525-22 TL series toggle switch is an ideal switch for demanding applications, compliant to MIL-DTL-3950, this high performance switch is a logical choice for use in environments where sealing and resistance to shock and vibration are required. The MS24524-22 is particularly suitable for applications in off-highway, aviation, commercial and industrial equipment. This compact, environmentally sealed switch is available in single and double pole configurations.
Switch Operation:
With the switch mounted with the keyway facing down , The switch acts as an OFF-ON switch that Latches in the ON position. bridge all 4 poles together to get a full 60 amp capacity switch.
Common Uses
- Cooling fans
- Pumps
- Ignition systems
- Weapons systems
Switch Specs
- Quad Pole -Single Throw (4PST)
- 8 screw
- Screw mounting holes are #6
- Mounting threads are 15/32
- .05-28 Volts DC switch will transfer 15 amps
- .05-277 Volts AC switch will transfer 10 amps
