MS3476L22-95S Plug Connector
MS3476L22-95S Plug Connector
Questions about this part?

Fitment, mating parts, tooling, certs: a wire specialist will get back to you.

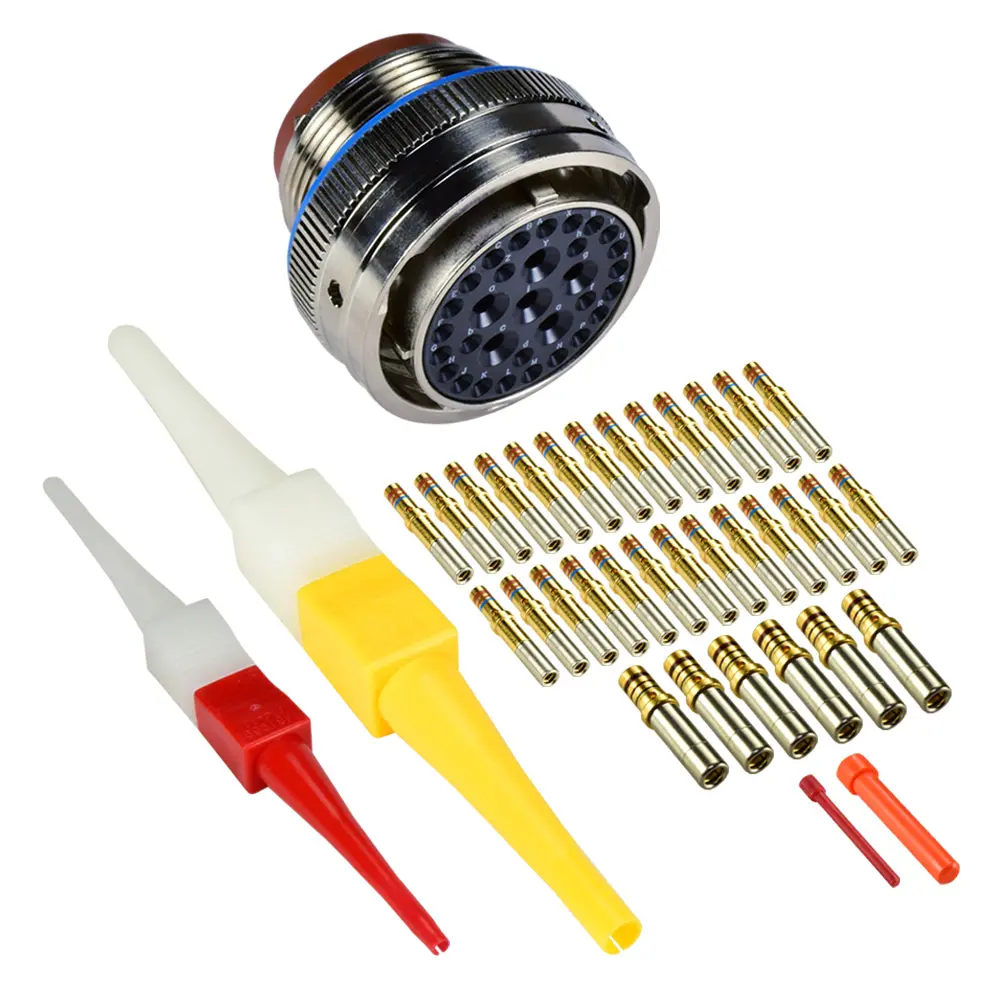

MS3476L22-95S Mil-Spec Circular Connector 32-Way Plug Kit

Aero-Electric
Item No. MS3476L22-95S
$79.975 / EA
Features & details

The MS3476L22-95S is a 32-way plug circular connector kit with socket (female) contacts. The connector housing is electroless nickel over aluminum. To create a mated pair, a receptacle connector kit is required.

This connector features a mixed arrangement, utilizing two different contact sizes.

MS3476L22-95S Kit Includes
  • (1) 32-Way Plug Connector Body.
  • (6) Size 12 socket (female) contacts, 14-12 AWG, 23 A ea. M39029/5-118
  • (26) Size 20 socket (female) contacts, 18-22 AWG, 7.5 A ea. M39029/5-115
  • (1) Insert/Removal Tool M81969/14-02
  • (1) Insert/Removal Tool M81969/14-04
  • (1) Cavity Plug MS27488-20-2 The quantity included varies.
  • (1) Cavity Plug MS27488-12-2 The quantity included varies.
Mating Connector

Please refer to the Mating Connectors tab on this page.

Required Crimp Tooling
Shrink Boots
Shrink Boot Adapter
Technical Information
  • The Specifications tab lists technical data as well as other useful information.
  • The Documents section lists CAD models, technical drawings, and catalog pages when available.
Notes
  • Please refer to the Mating Connectors, Related Items, and Crimp Tools tabs to purchase the mating connector, heat shrink boots, and accessories.
  • Size 16 contacts can accept 14-AWG Tefzel wire if the stripped wire is perfect without stray conductor strands. The current rating remains the same at 13 amps each.
Product specification
Series / Range Mil-Spec
Shell Size 22
Wire Range (AWG) 26 x 22-18GA & 6 x 14-12GA
Contact Gender Socket (Female)
Shell Style Plug
Shell Plating Electroless Nickel
Replacement Contacts M39029/5-118 & M39029/5-115
Insert Arrangement 22-95
No. Of Positions 32
Contact Size 20 & 12
Mixed Contact Sizes YES
90º Shrink Boot 222K163-25-0
Shrink Boot Adapter M85049/60-2G22N
Connector O.D. 1.656" (42.06 mm)
DMC Crimp Frame M22520/1-01
Current Rating Per Contact 26 x 7.5 A / 6 x 23 A
Metal Insert Tool DAK83-20B & DAK83-12B
Metal Removal Tool DRK83-20B & DRK83-12B
Filler Plug MS27488-20-2 & MS27488-12-2
Insert / Removal Tool M81969/14-02 & M81969/14-04

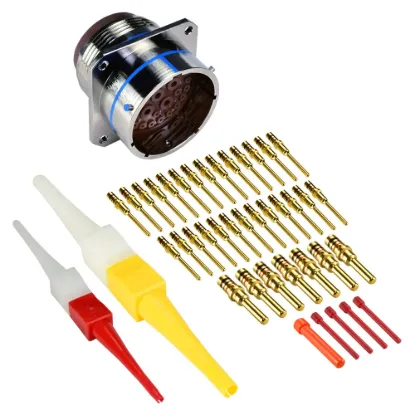

Mating Flange Connector MS3470L22-95P

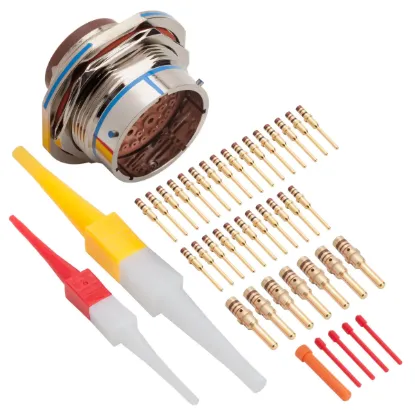

Mating Jam Nut Connector MS3474L22-95P
DMC Positioner / Turret M22520/1-02
Shell Material Aluminum
Straight Shrink Boot 202K163-25-0
Termination Style Crimp
