MS3470L16-14P Mil-Spec Circular Connector 14-Way Receptacle Kit

Name: 14 WAY FLANGED RECEPTACLE-PIN
SKU: MS3470L16-14P
Price: 63.61 USD
Availability: InStock

Aero-Electric

Item No. MS3470L16-14P

$63.613 / EA

Features & details

The MS3470L16-14P is a 14-way flanged receptacle circular connector kit with pin (male) contacts. The connector housing is electroless nickel over aluminum. To create a mated pair, a plug connector kit is required.

This connector features a mixed arrangement, utilizing two different contact sizes.

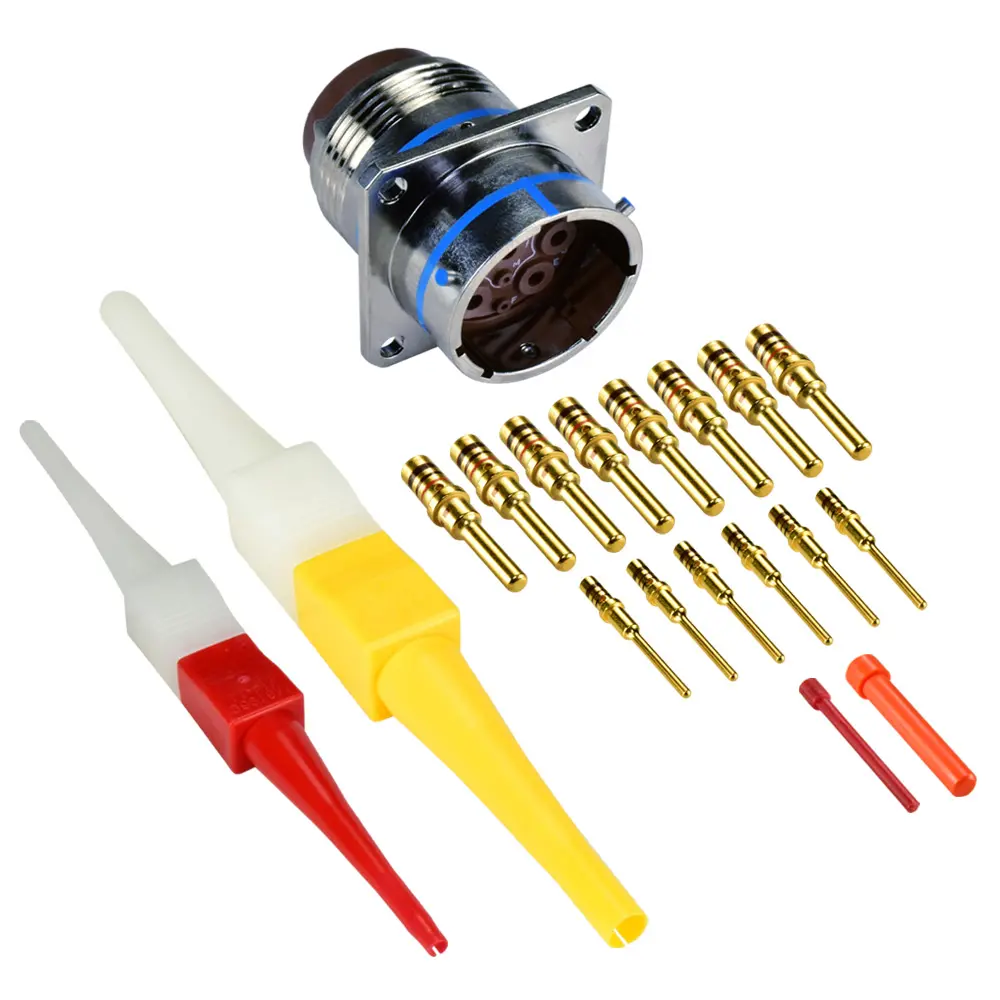

MS3470L16-14P Kit Includes

(1) 14-Way Flanged Receptacle Connector Body.
(6) Size 12 pin (male) contacts, 14-12 AWG, 23 A ea. M39029/4-113
(8) Size 20 pin (male) contacts, 18-22 AWG, 7.5 A ea. M39029/4-110
(1) Insert/Removal Tool M81969/14-02
(1) Insert/Removal Tool M81969/14-04
(1) Cavity Plug MS27488-20-2 The quantity included varies.
(1) Cavity Plug MS27488-12-2 The quantity included varies.

Mating Connector

Please refer to the Mating Connectors tab on this page.

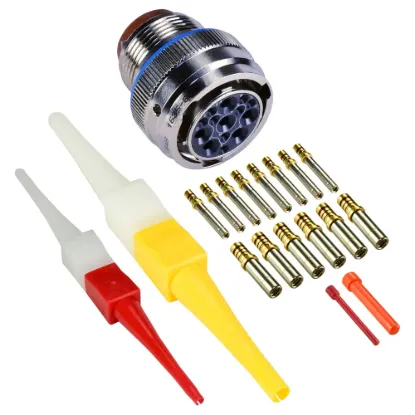

PlugMS3476L16-14S

Required Crimp Tooling

DMC Crimp FrameM22520/1-01 (AF8) requires TH1A
DMC TurretM22520/1-02 (TH1A) requires AF8
DMC PositionerK1S requires AFM8 (size 20 contacts only)
DeutschHDT-48-00 all-in-1 tool.
Econo Tool18860 size 20 contacts only.
Econo Tool18890 size 12 contacts only.

Shrink Boots

Straight202K142-25-0
90°222K142-25-0

Shrink Boot Adapter

M85049/60-2G16N

Nut Plate

M85049/95-16A

Technical Information

The Specifications tab lists technical data as well as other useful information.
The Documents section lists CAD models, technical drawings, and catalog pages when available.

Notes

Please refer to the Mating Connectors, Related Items, and Crimp Tools tabs to purchase the mating connector, heat shrink boots, and accessories.
Size 16 contacts can accept 14-AWG Tefzel wire if the stripped wire is perfect without stray conductor strands. The current rating remains the same at 13 amps each.

Product specification

Mounting Type	4 Bolt Flange
Contact Gender	Pin, Pin (Male)
Plating	Nickle
Boot 90	222K142-25-0
Shrink Boot Adapter	M85049/60-2G16N, M85049/60-2G16N
Shrink Boot Finish	Nickle
Straight Boot	202K142-25-0
Receptacle Type	Flange/Pin
Series / Range	Mil-Spec
Shell Size	16
Wire Range (AWG)	8 x 22-18GA & 6 x 14-12GA
Shell Style	4 Bolt Flange
Shell Plating	Electroless Nickel
Replacement Contacts	M39029/4-113 & M39029/4-110
Insert Arrangement	16-14
No. Of Positions	14
Contact Size	20 & 12
Mixed Contact Sizes	YES
90º Shrink Boot	222K142-25-0
Connector O.D.	1.234" (31.34 mm)
DMC Crimp Frame	M22520/1-01
Current Rating Per Contact	8 x 7.5 A / 6 x 23 A
Metal Insert Tool	DAK83-20B & DAK83-12B
Metal Removal Tool	DRK83-20B & DRK83-12B
Filler Plug	MS27488-20-2 & MS27488-12-2
Insert / Removal Tool	M81969/14-02 & M81969/14-04
Mating Plug Connector	MS3476L16-14S
Nut Plate	M85049/95-16A
Panel Cutout	1.113" (28.27 mm)
DMC Positioner / Turret	M22520/1-02
Shell Material	Aluminum
Straight Shrink Boot	202K142-25-0
Termination Style	Crimp

Price $63.613 / EA

Shipping details

Availability: 6 Each In Stock, ready to be shipped

Quantity:

Configure as matched kit

Documents

Pinout sheet (16-14)

MS3470L16-14P Mil-Spec Connector Datasheet
