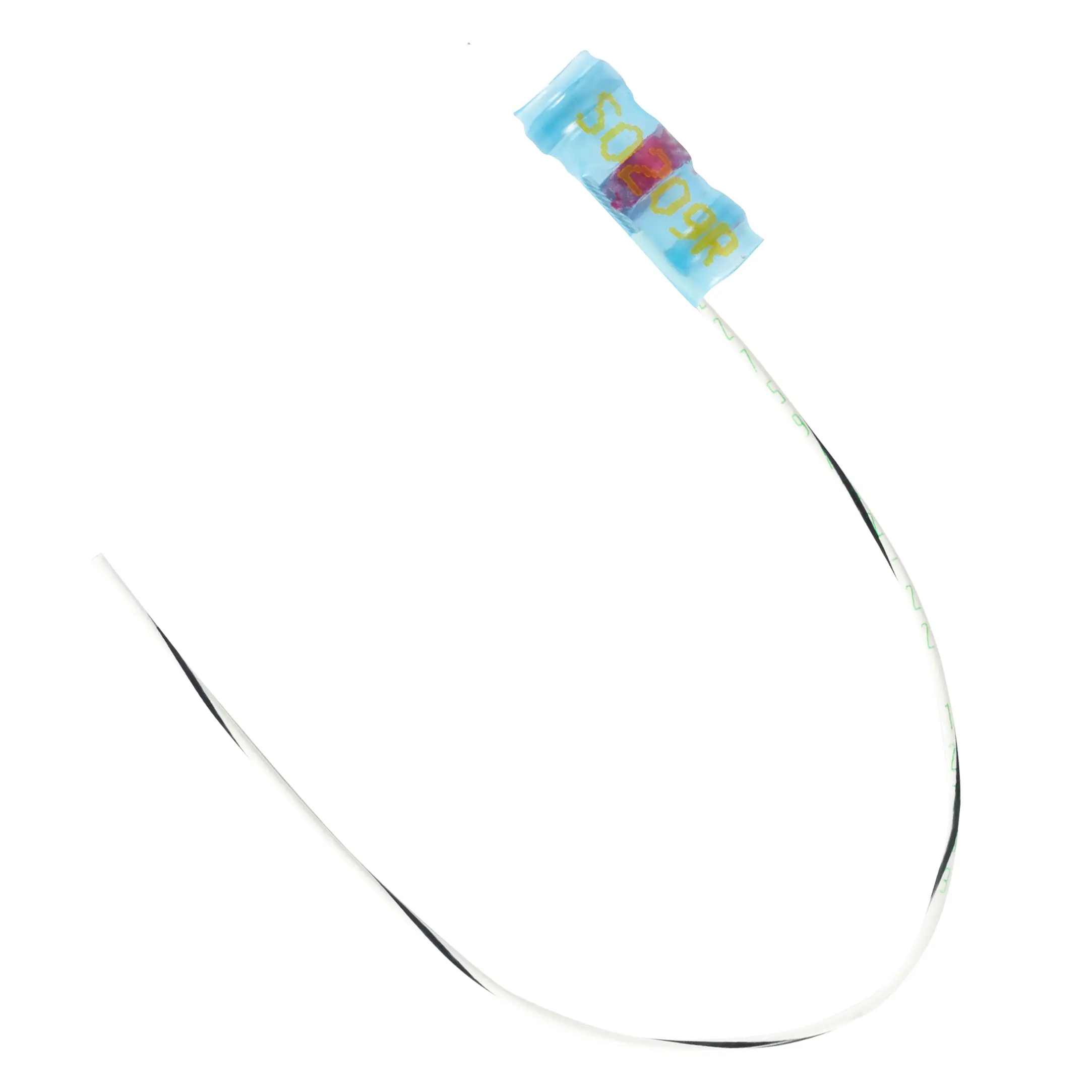

Raychem/TE Solder Sleeve S02-0-9-R Shield Terminator

SUMITOMO
Item No. S02-09-R
$1.859 / EA
Features & details

Shield terminators allow the technician to attach a wire to the outer braid/shield om a shielded cable.This terminator has a 6" 22 Gauge wire attached.

  • Insualtion Sleeve: Crosslinked,Modified Polyvinyl Flouride
  • Tempurature Range: -55ºC TO +150ºC
  • Pre-Installed M22759/32-22-9 Lead 6" Long
  • Meltable Sealing Ring On Both Ends

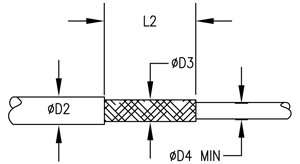

RECOMMENDED CABLE PREP:

  • øD2: 6.47mm .(255")
  • øD4: 5.96mm (.235")
  • øD3: 3.02mm (.130")
  • L2: 6.3-8.2mm (.250"-.325")
