AS620-39PN Deutsch AS Series 39-Way Plug Kit

Deutsch
Item No. AS620-39PN
$252.00 / EA
Features & details

The Deutsch Autosport AS620-39PN 39-way plug connector kit with pin (male) contacts in the N (red) key configuration.

The connector's red band identifies the N keyway (only the same color keyways will mate together).

This connector features a mixed arrangement, utilizing two different contact sizes.

AS620-39PN Kit Includes

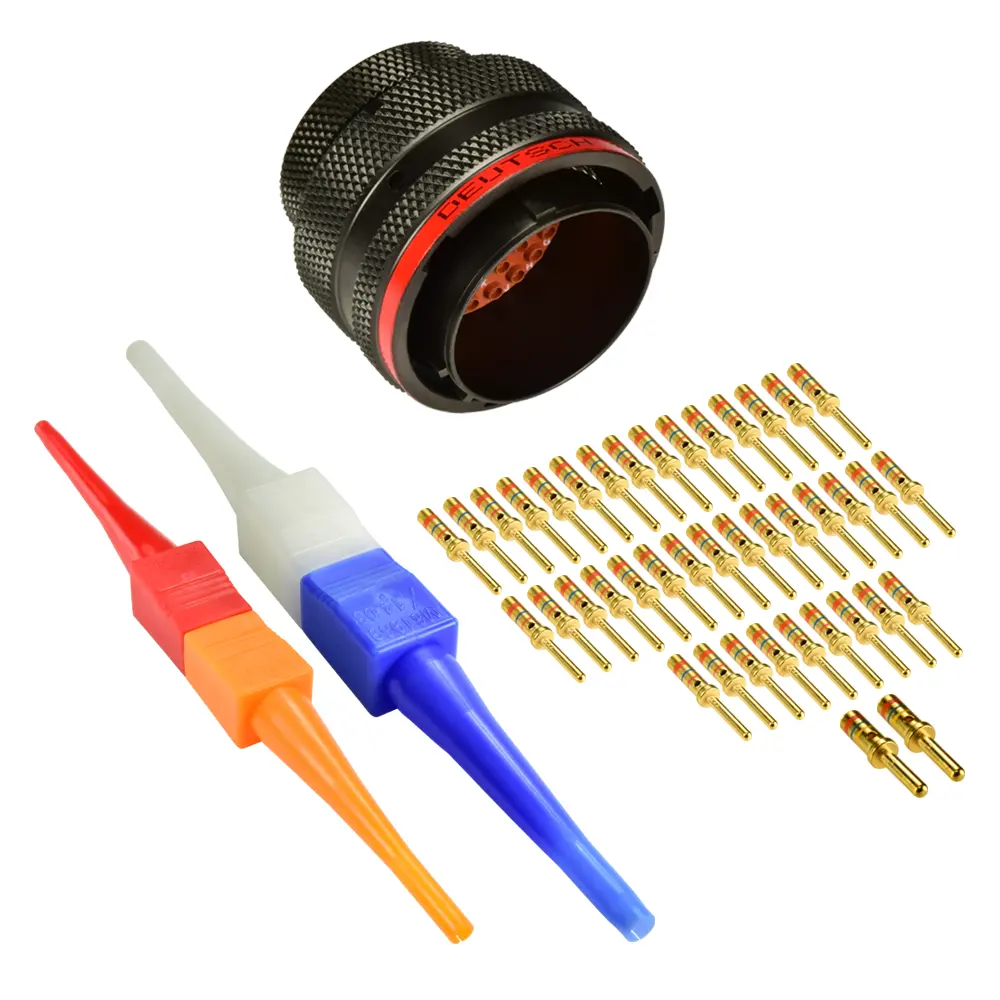

  • (1) 39-Way Plug Connector Body with Screen and Boot Termination Feature.
  • (37) Size 20 pin (male) contacts (22-18 AWG, 7.5 A each) 38941-20
  • (2) Size 16 pin (male) contacts (20-16 AWG, 13 A each) 38941-16
  • (1) Insert/Removal Tool M81969/14-03
  • (1) Insert/Removal Tool M81969/14-10
  • (1) Cavity Plug 600300-20 qty varies by part number.
  • (1) Cavity Plug 600300-16 qty varies by part number.
Required crimp tooling
Shrink Boots
Technical Information
  • The Specifications Tab lists technical data as well as other helpful information.
  • The Documents section lists CAD models, technical drawings, and catalog pages when available.
Notes
  • Please see the Mating Connector, Related Items, and Crimp Tools tabs to purchase the mating connector, heat-shrink boots, and accessories.
  • Size 16 contacts can accept 14-AWG Tefzel wire if the stripped wire is perfect without stray conductor strands. The current rating remains the same at 13 amps each.
Product specification
Keyway N (Red)
Series / Range AS
Shell Size 20
Wire Range (AWG) (37) 20-24GA & (2) 20-16GA
Contact Gender Pin (Male)
Shell Style Plug
Shell Plating Zinc (Black)
Replacement Contacts 38941-20,38941-16
Insert Arrangement 20-39
No. Of Positions 39
Contact Size 20 & 16
Mixed Contact Sizes YES
90º Shrink Boot 222K163-25-0
Connector O.D. 1.504" (38.2 mm)
DMC Crimp Frame M22520/2-01 & M22520/1-01
Current Rating Per Contact 37 x 7.5 A / 2 x 20 A
Filler Plug 600300-20,600300-16
Insert / Removal Tool M81969/14-03,M81969/14-10
MFG. TE Connectivity

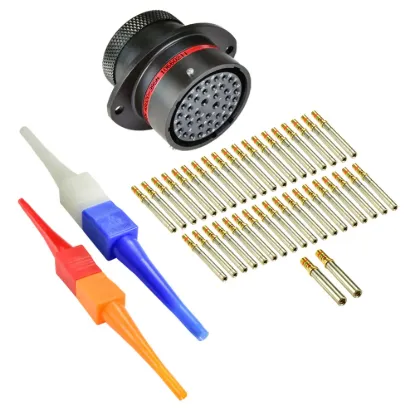

Mating Flange Connector AS020-39SN

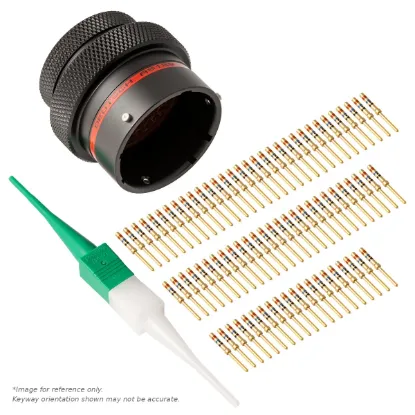

Mating Inline Connector AS120-39SN
Mating PCB Connector AS220-39SN
Protective Cap AS820
DMC Positioner / Turret M22520/2-10 & M22520/1-04
Shell Material Aluminum
Souriau Part Nbr 8STA62039PN
Souriau Part Nbr_1 8STA6-20-39PN
Straight Shrink Boot 202K163-25-0
Alumel Contact 720102
Chromel Contact 720103
Termination Style Crimp
