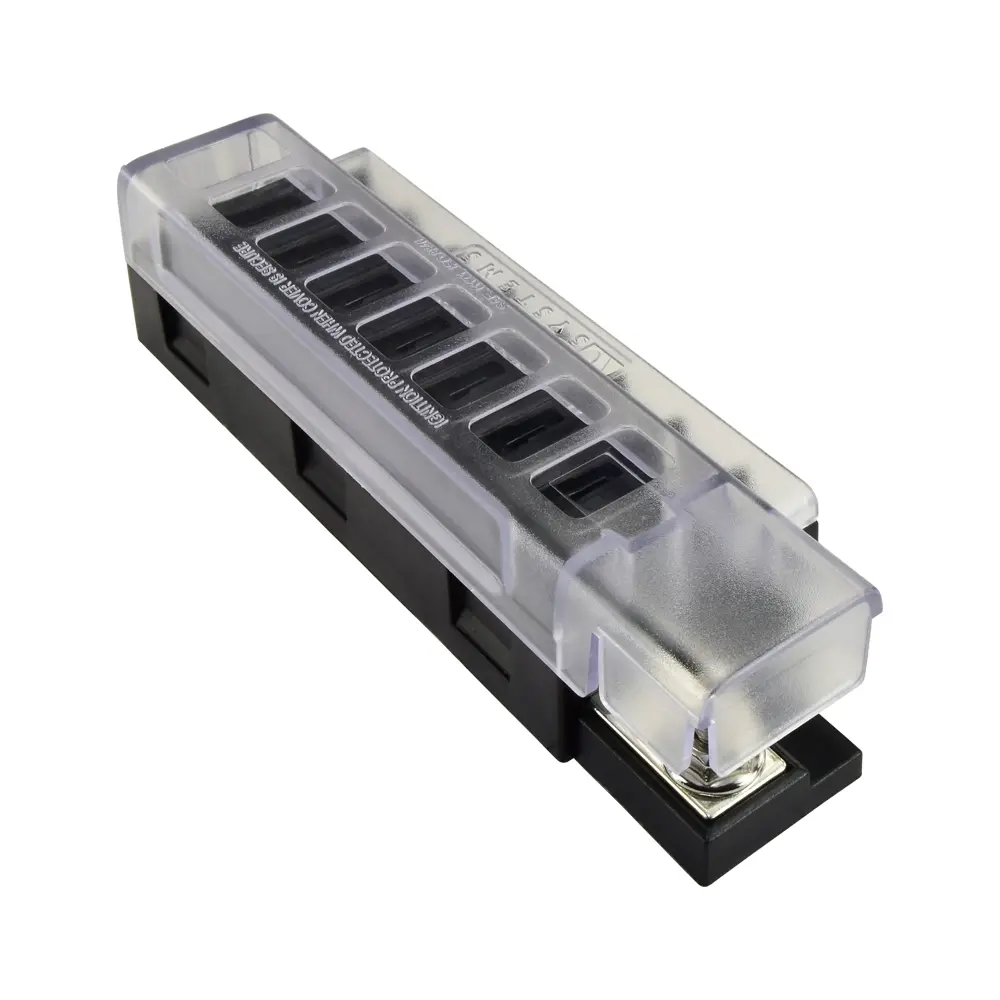

Provides surface mount circuit protection for ATO®/ATC® Fuses in a compact footprint.
- Ignition protected when cover is secure –meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment
- Single side design allows wire entry from one side to minimize footprint

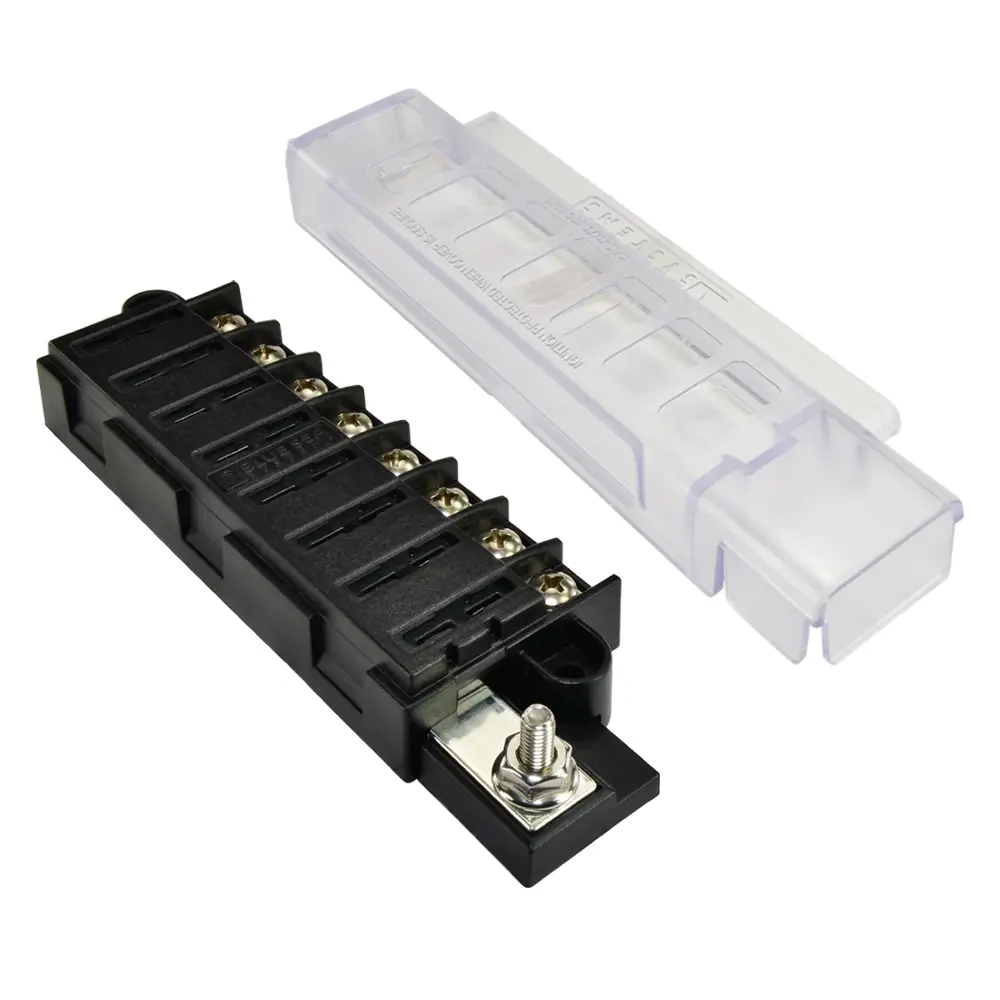

- Insulating cover meets ABYC/USCG insulation requirements
- Tin-plated copper buses and fuse clips
- Accepts ring or snap fork type terminals
- Includes 8 write-on circuit labels
- Fuses sold separately
| Specifications |
| Mfg | Blue Seas Model 5046 |
| Circuits | 8 |
| Max Amperage | 100A Per Block |
| 30A Per Circuit |
| Mounting Type | #8 Screw (M4) |
| Torque
| Terminal Stud 24in-lb |
| Screw Terminal 15 in-lb |
| Screw Terminal | #8-32 Scews with captive star lock washer |
| Terminal Stud | #10-32 |
