ASL606-05SC-HE Deutsch ASL (AS MicroLite) Series 5-Way Plug Kit

Name: ASL,5 WAY,PLG,SKT,C KEY,ORANGE
SKU: ASL606-05SC-HE
Price: 43.20 USD
Availability: InStock

Deutsch

Item No. ASL606-05SC-HE

$43.20 / EA

Features & details

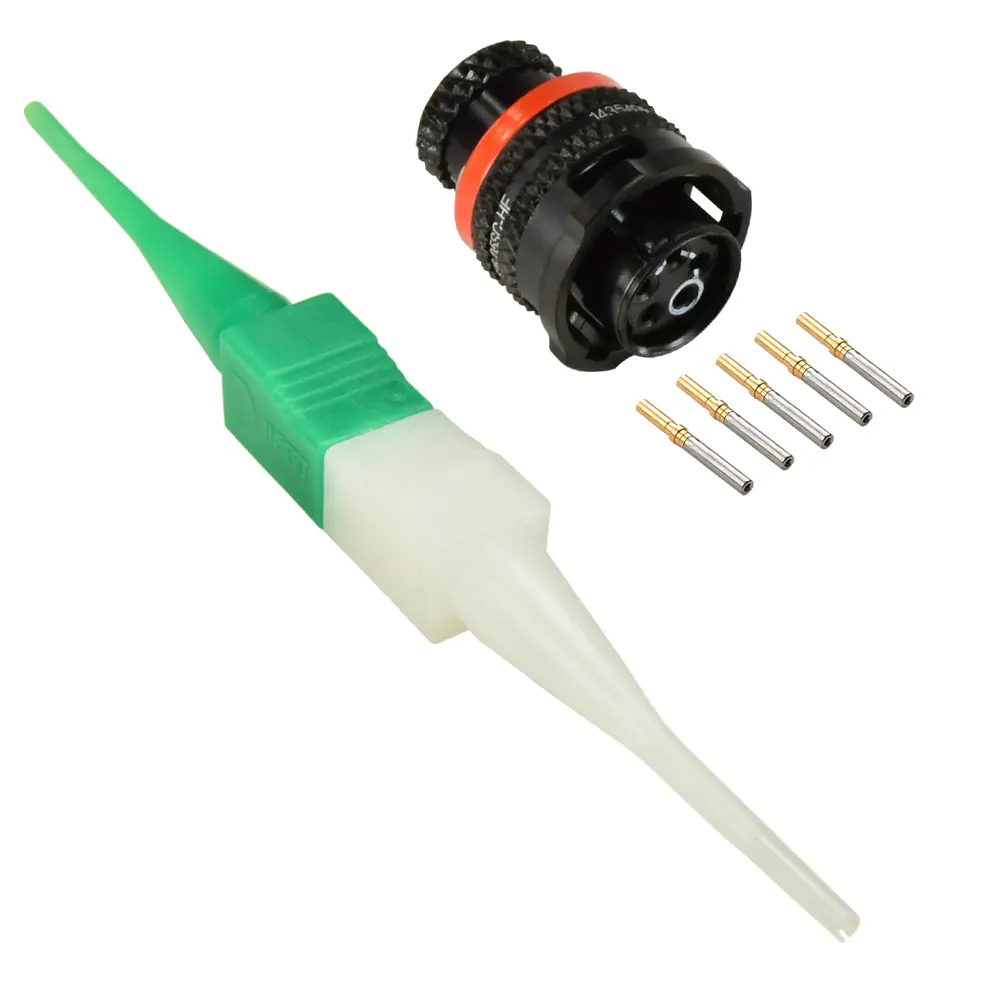

Deutsch Autosport ASL606-05SC-HE 5-way plug connector kit with socket (female) contacts in the C (orange) key configuration.

The connector's orange band identifies the C keyway (only the same color keyways will mate together)

Kit Includes

(1) 5-Way Plug Connector Body with Screen and Boot Termination Feature.
(5) Size 23 socket (female) contacts (22-28 AWG, 3 A each) 604935
(1) Insert/Removal Tool M81969/14-01

Required Crimp Tooling

Crimp FrameM22520/2-01
Positioner/TurretK1414

Shrink Boots

Straight204W221-25-0
90°224W221-25-0

Technical Information

The Specifications Tab lists technical data as well as other helpful information.
The Documents section lists CAD models, technical drawings, and catalog pages when available.

Notes

Please see the Mating Connector, Related Items, and Crimp Tools tabs to purchase the mating connector, heat shrink boots, and accessories.

Product specification

Receptacle Type	Flange/Socket
Connector Key	B-BLUE
Keyway	C (Orange)
Series / Range	ASL
Shell Size	6
Wire Range (AWG)	22-28
Contact Gender	Socket (Female)
Shell Style	Plug
Shell Plating	Zinc (Black)
Replacement Contacts	604935
Insert Arrangement	46178
No. Of Positions	5
Contact Size	23
90º Shrink Boot	224W221-25-0
Connector O.D.	.563" (14.3 mm)
DMC Crimp Frame	M22520/2-01
Current Rating Per Contact	3 A
Filler Plug	600300-22
Receptacle Gasket	605378-AL
Insert / Removal Tool	M81969/14-01
MFG.	TE Connectivity
Mating Flange Connector	ASL006-05PC-HE
Mating Inline Connector	ASL106-05PC-HE
Mating PCB Connector	ASL206-05PC-HE
Protective Cap	604027
DMC Positioner / Turret	K1414
Shell Material	Aluminum
Straight Shrink Boot	204W221-25-0
Alumel Contact	605380-AL
Chromel Contact	605380-CR
Termination Style	Crimp

Price $43.20 / EA
