ASL106-05SA-HE Deutsch ASL (AS MicroLite) Series 5-Way Receptacle Kit

Name: ASL,5 WAY,INLINE,SKT,A KEY,YELLOW
SKU: ASL106-05SA-HE
Price: 34.80 USD
Availability: InStock

Deutsch

Item No. ASL106-05SA-HE

$34.80 / EA

Features & details

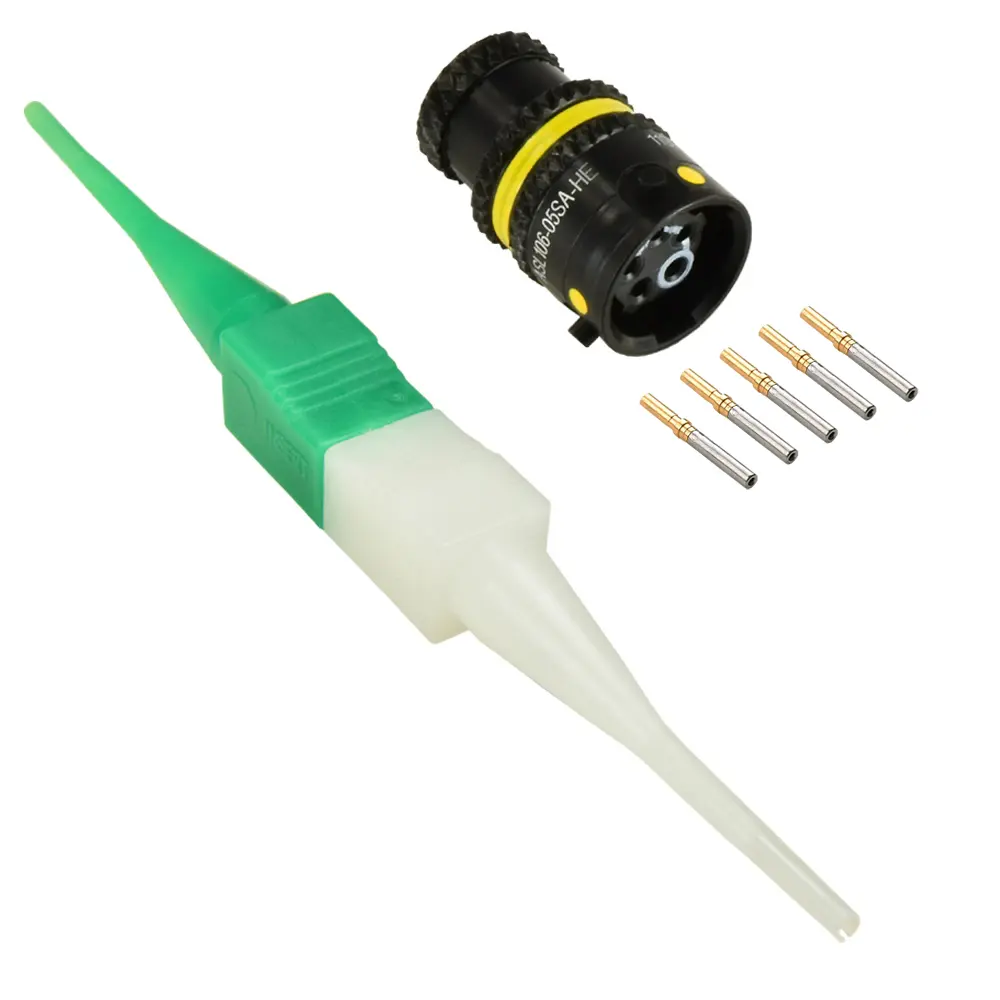

Deutsch Autosport ASL106-05SA-HE 5-way inline receptacle connector kit with socket (female) contacts in the A (yellow) key configuration.

The connector's yellow band identifies the A keyway (only the same color keyways will mate together)

Kit Includes

(1) 5-Way Inline Receptacle Connector Body with Screen and Boot Termination Feature.
(5) Size 23 socket (female) contacts (22-28 AWG, 3 A each) 604935
(1) Insert/Removal Tool M81969/14-01

Required Crimp Tooling

Crimp FrameM22520/2-01
Positioner/TurretK1414

Shrink Boots

Straight204W221-25-0
90°224W221-25-0

Technical Information

The Specifications Tab lists technical data as well as other helpful information.
The Documents section lists CAD models, technical drawings, and catalog pages when available.

Notes

Please see the Mating Connector, Related Items, and Crimp Tools tabs to purchase the mating connector, heat shrink boots, and accessories.

Product specification

Connector Key	A-YELLOW
Keyway	A (Yellow)
Series / Range	ASL
Shell Size	6
Wire Range (AWG)	22-28
Contact Gender	Socket (Female)
Shell Style	Inline Receptacle
Shell Plating	Zinc (Black)
Receptacle Type	Inline/Socket
Replacement Contacts	604935
Insert Arrangement	46178
No. Of Positions	5
Contact Size	23
90º Shrink Boot	224W221-25-0
Connector O.D.	.433" (11 mm)
DMC Crimp Frame	M22520/2-01
Current Rating Per Contact	3 A
Filler Plug	600300-22
Insert / Removal Tool	M81969/14-01
MFG.	TE Connectivity
Mating Plug Connector	ASL606-05PA-HE
Protective Cap	604029
DMC Positioner / Turret	K1414
Shell Material	Aluminum
Straight Shrink Boot	204W221-25-0
Alumel Contact	605378-AL
Chromel Contact	605378-CR
Termination Style	Crimp

Price $34.80 / EA
