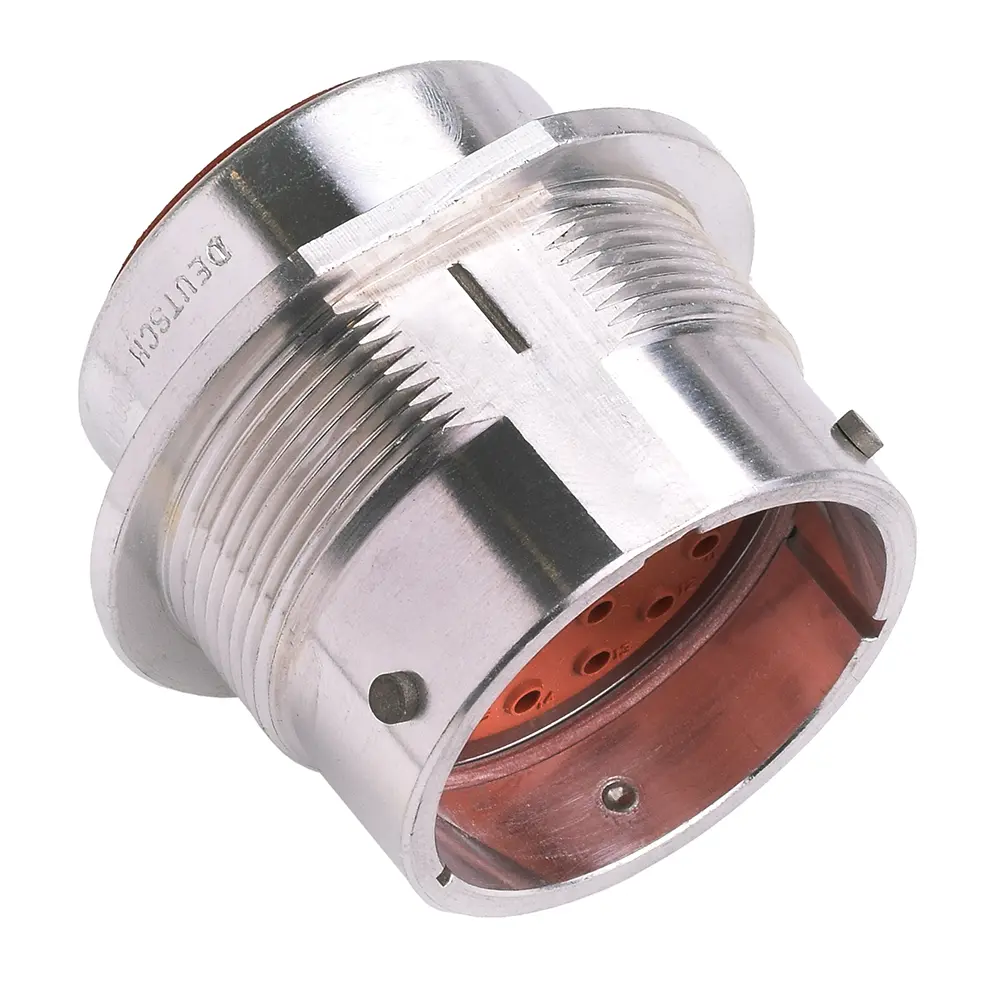

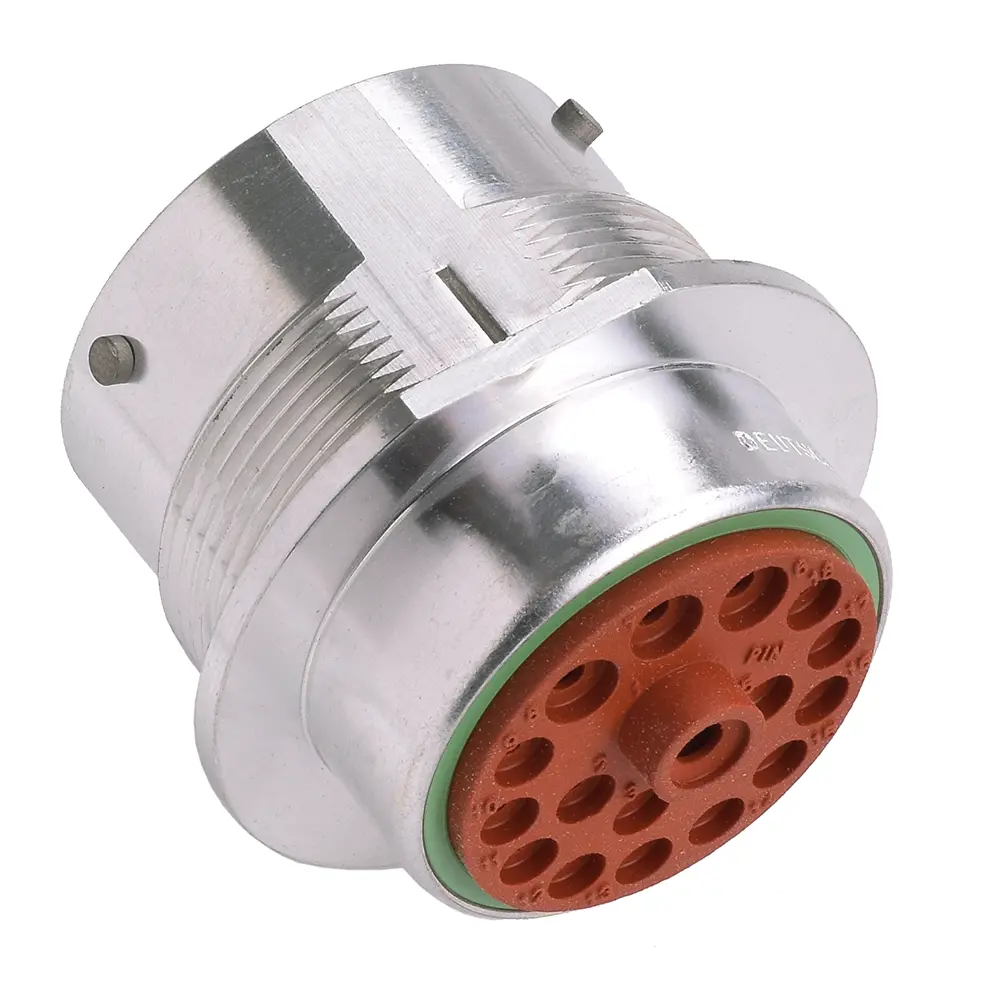

HD34-24-18PN Receptacle Connector

Deutsch
Item No. HD34-24-18PN
$23.092 / EA
Features & details

Deutsch HD30 series 18 way jam nut receptacle connector housing.

  • Number of Positions: 18
  • 16 X size 16 contacts 20-14 ga 13 amp max per contact
  • 3 X size 12 contacts 14-10** ga 25 amp max per contact
  • 1 X size 8 contacts 10-8 ga 60 amp max per contact

Additional parts will be required to assemble this connector, not included in price of HD34-24-18PN

Required/Additional Components
  • (1) Panel nut
  • (1) Lock washer
  • (14) size 16 male (pin) contacts
  • (3) size 12 male (pin) contacts
  • (1) size 8 male (pin) contact
Dimensions
  • Mounting Hole: 1.579"
  • Overall Length: 1.647"
  • Overall Diamater: 2"

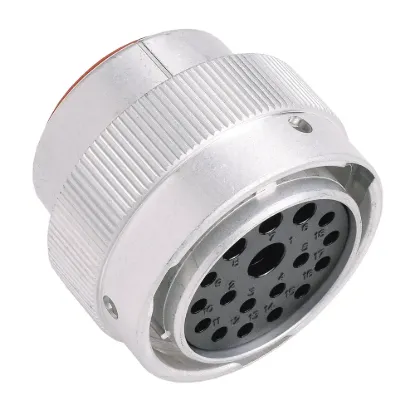

 See related items and mating connector tabs below for more information
** For 10 ga wire, you will need to use a stamped & formed contact to accomplish this.When using 10 ga wire the max amperage is still 25 amps.
