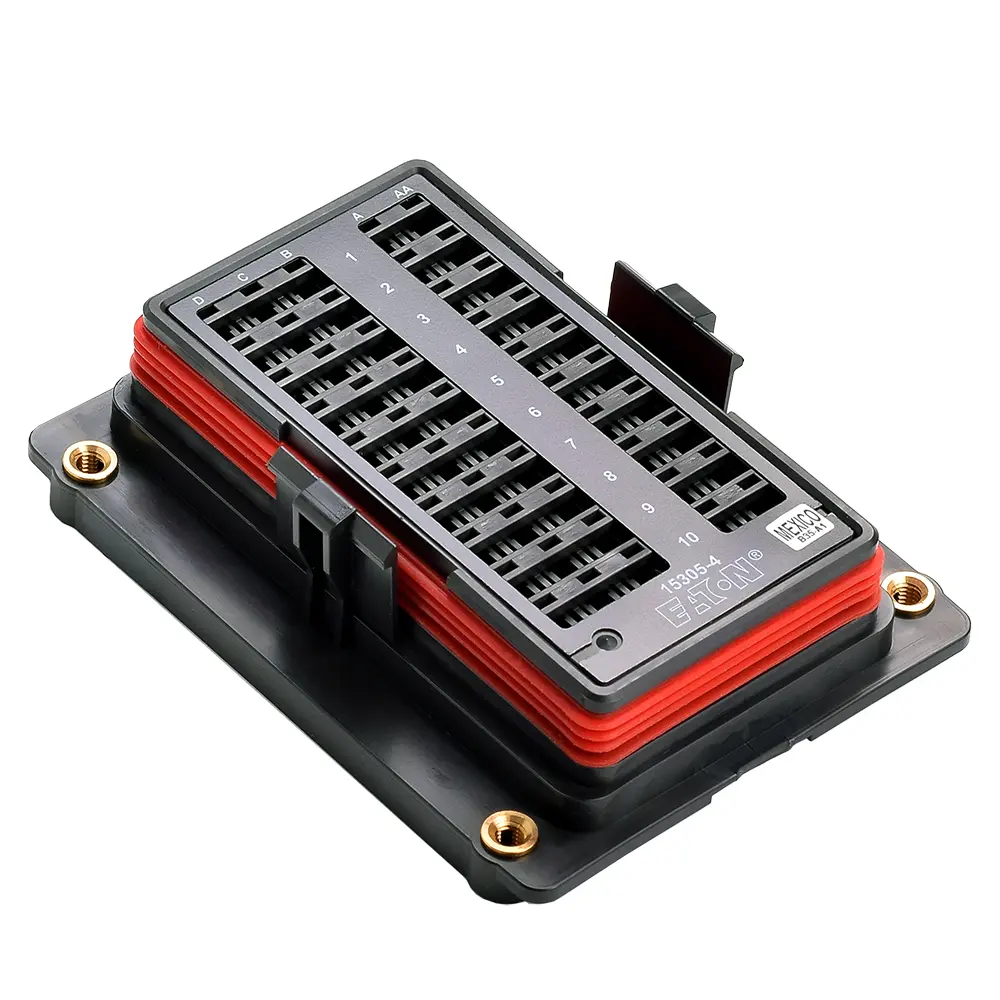

Bussman Mini Fuse Panel 15305-4-0-4

The EATON-Bussamn Series 15305-4-0-4 offers a main power distribution module capable of operating in harsh environment applications. Based on the industry standard 2.8mm (mini) footprint, the Eaton RFRM accepts plug-in fuses, relays, circuit breakers, resistors and diodes to meet numerous power management requirements. Terminals and wire seals and relays sold seperately see related items

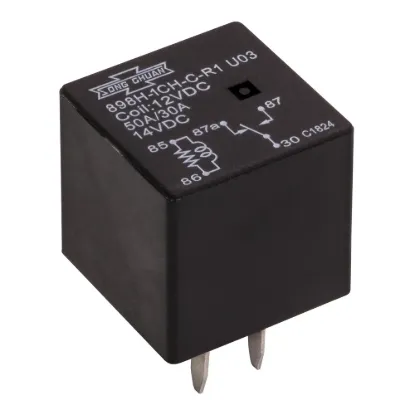

Plug-in component capacity: Up to 5 (35 Amp) ISO-280 mini relays and a combination of 10 fuses/circuit breakers (2.8mm blade / 8.1mm center line) Up to 3 (50 Amp) relays can be used Sold seperately
Material: 94V-0 thermoplastic, plated copper bus bar, silicone rubber gasket, EPDM - internal tether
Mounting: #10-32,4 in-lbs max
Wire size: Accepts #12-22 AWG wire sizes
Terminals: Delphi Packard 280 Series Metri-Pack® sealed/tangless terminals, see related items below
Cavity plugs: Delphi Packard 280 Series cavity plug (where output wires are not used), see related items below

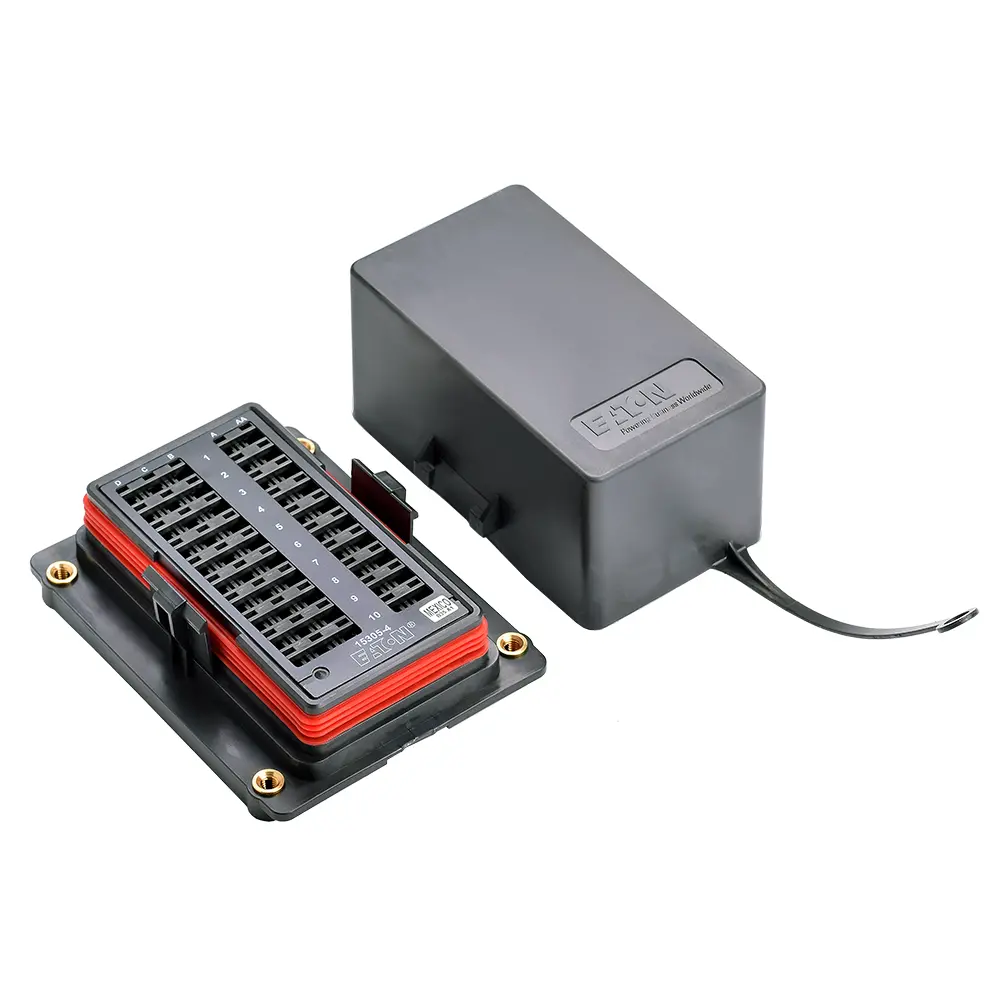

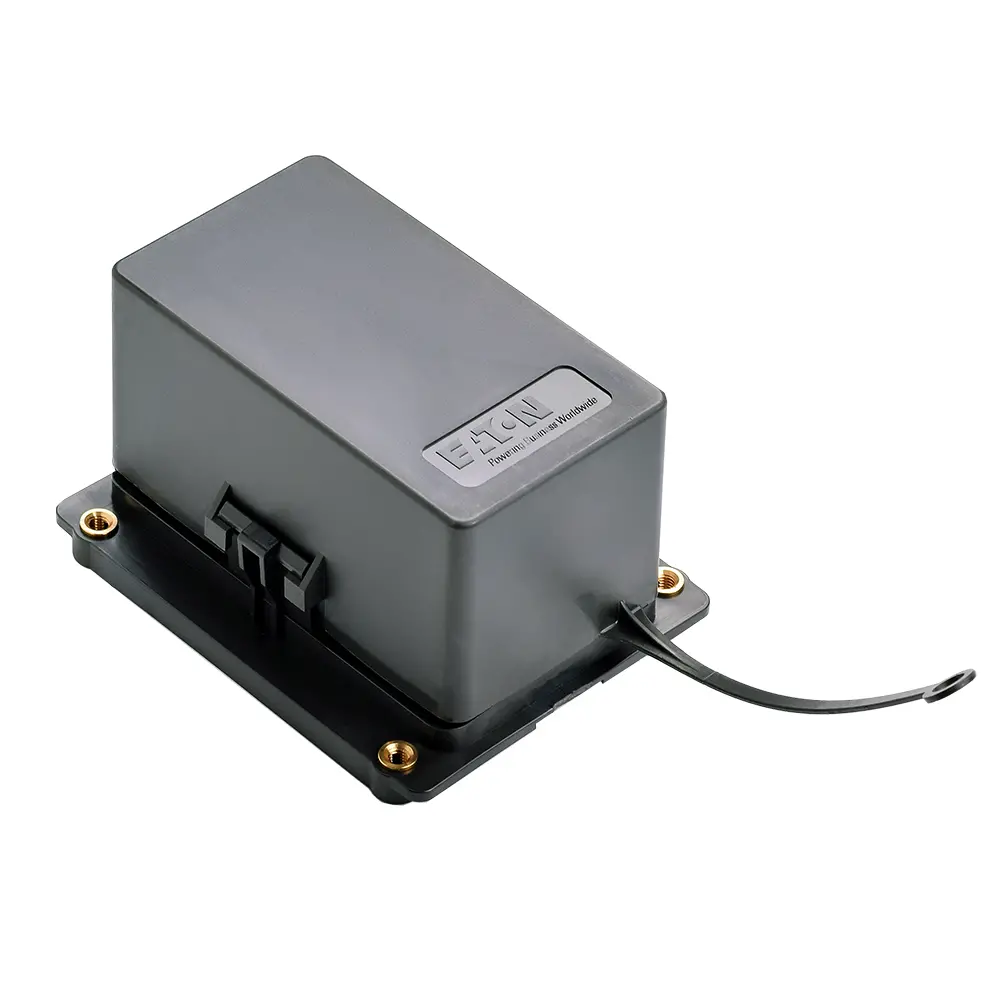

Cover is tall enough for mini "plugin" style breakers
Temperature rating: -40F (-40°C) to 185°F (85°C)

Dimesions with cap installed

Height: 4.300"
Width: 3.300"
Depth 2.710"
Terminals and wire seals and relays sold seperately see related items
