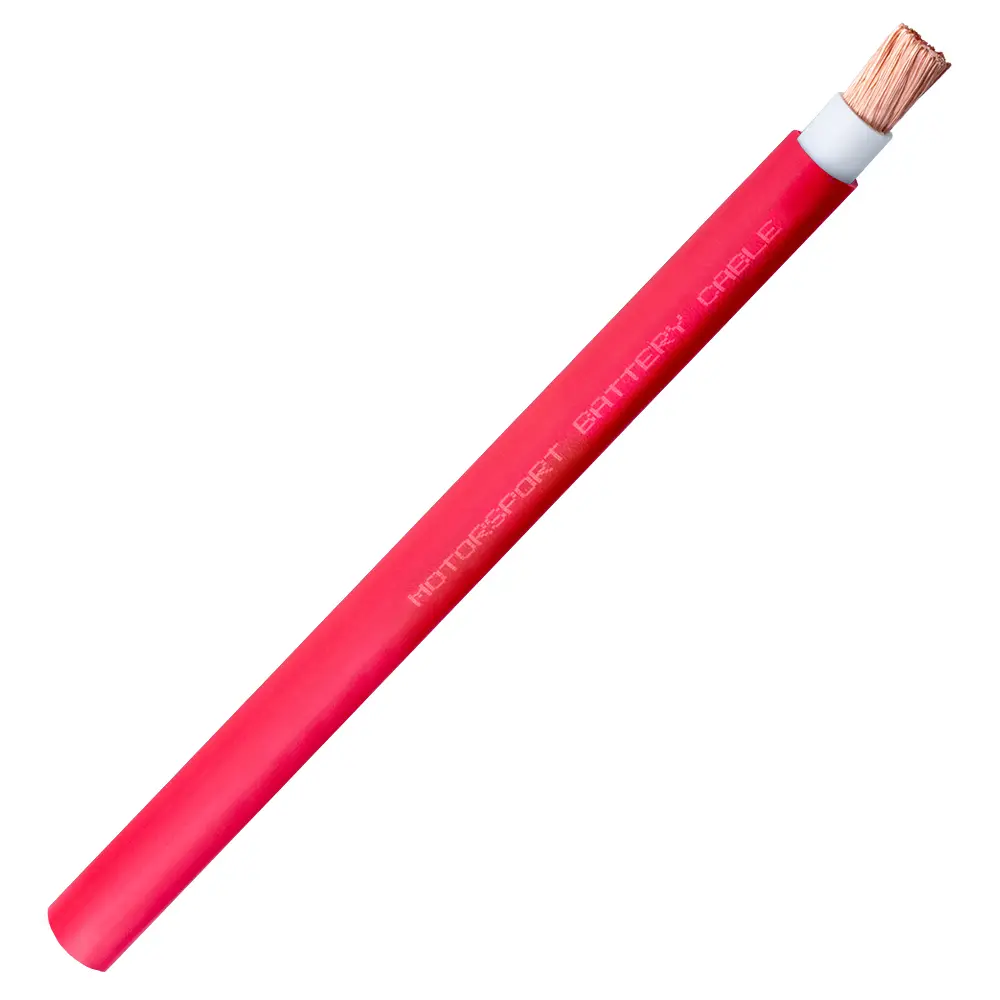

1/0CBL-RD 1/0 AWG Motorsport Battery Cable - Red

Product Overview: This 1/0 AWG dual-jacketed battery cable is designed specifically for motorsport applications and offers exceptional flexibility and durability. It's built to withstand abrasion, heat, and chemical damage, making it a reliable choice for demanding environments. Available for purchase by foot, with quantity discounts available.

Conductor Specifications:

• Material: Bare, annealed electrolytic copper
• Stranding: 30 AWG Class K rope lay, 1064 X 30 strands
• Conductor Diameter: 0.397 inches

Outer Jacket Specifications:

• Type: TPE (FT1)
• Features: Oil, water, acid, and fuel resistance
• Operating Temperature Range: -49°C to 105°C
• Outer Diameter: 0.610 inches

Inner Jacket Specifications:

• A white vinyl separator for added safety and flexibility
• Easy identification of damage or wear

General Specifications:

• Stranding: Extra Flexible Class K, 1064 X 30 strands
• Temperature Range: -49°C to 105°C
• Voltage Rating: 600 Volts
• Amperage Rating: 350 Amps
• Features: Moisture, oil, and water resistance and protection against cuts, tears, and abrasion
• Flexibility: Maintains flexibility in cold weather
• Weight: 426 lbs per 1000 ft

Note: Printing color may vary between different batches.
