AS112-35SN Deutsch AS Series 22-Way Receptacle Kit

Name: AS,22 WAY,INLINE,SKT,N KEY,RED
SKU: AS112-35SN
Price: 70.50 USD
Availability: InStock

Deutsch

Item No. AS112-35SN

$70.50 / EA

Features & details

Deutsch Autosport AS112-35SN 22-way inline receptacle connector kit with socket (female) contacts in the N (red) key configuration.

The connector's red band identifies the N keyway (only the same color keyways will mate together)

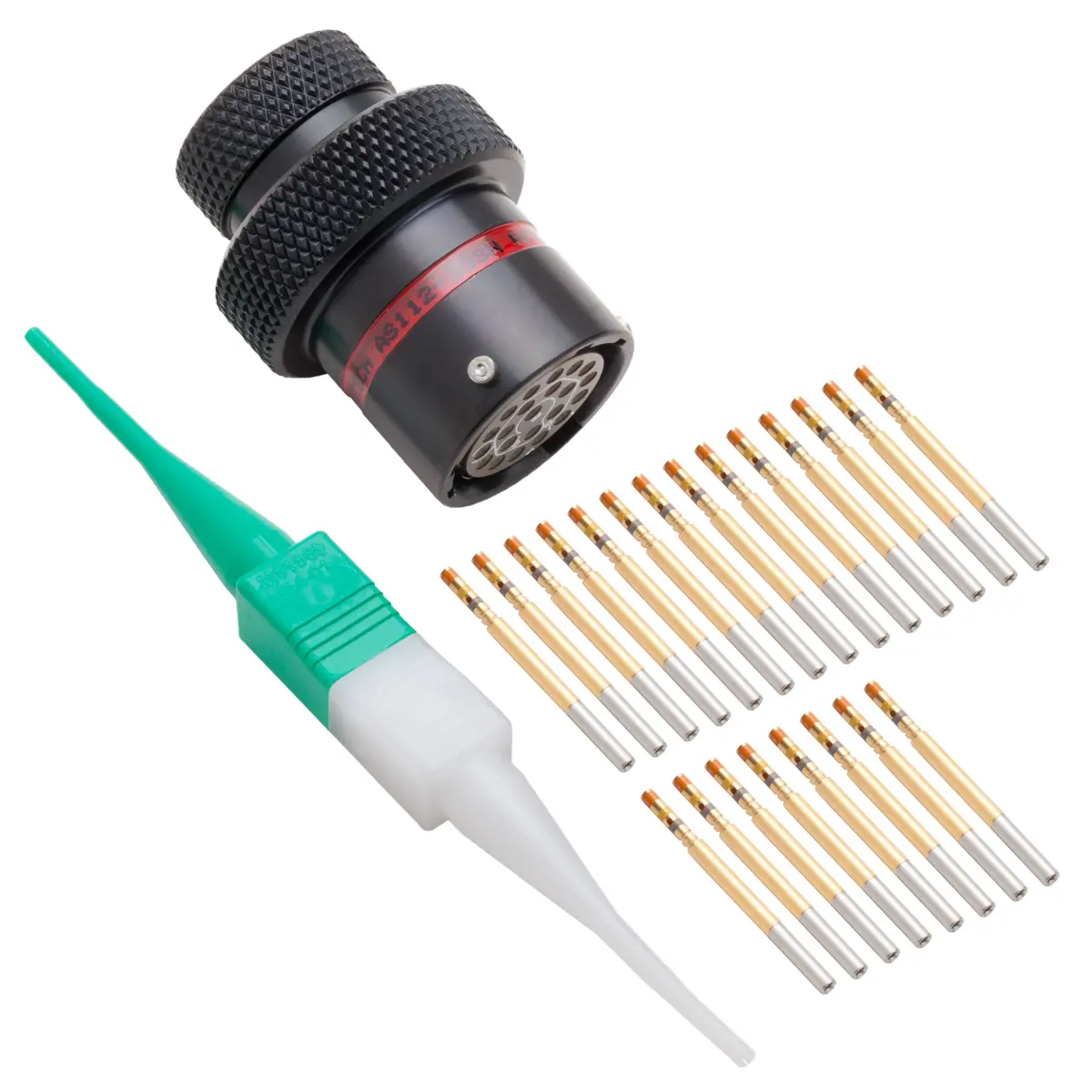

Kit Includes

(1) 22-Way Inline Receptacle Connector Body with Screen and Boot Termination Feature.
(22) Size 22 socket (female) contacts (26-22 AWG, 5 A each) 38943-22
(1) Insert/Removal Tool M81969/14-01

Required Crimp Tooling

Crimp FrameM22520/2-01
Positioner/TurretM22520/2-07

Shrink Boots

Straight202K142-25-0
90°222K121-25-0

Technical Information

The Specifications Tab lists technical data as well as other helpful information.
The Documents section lists CAD models, technical drawings, and catalog pages when available.

Notes

Please see the Mating Connector, Related Items, and Crimp Tools tabs to purchase the mating connector, heat shrink boots, and accessories.

Product specification

Keyway	N (Red)
Series / Range	AS
Shell Size	12
Wire Range (AWG)	26-22
Contact Gender	Socket (Female)
Shell Style	Inline Receptacle
Shell Plating	Zinc (Black)
Replacement Contacts	38943-22
Insert Arrangement	49644
No. Of Positions	22
Contact Size	22
90º Shrink Boot	222K121-25-0
Connector O.D.	.992" (25.2 mm)
DMC Crimp Frame	M22520/2-01
Current Rating Per Contact	5 A
Filler Plug	600300-22
Insert / Removal Tool	M81969/14-01
MFG.	TE Connectivity
Mating Plug Connector	AS612-35PN
Protective Cap	AS912
DMC Positioner / Turret	M22520/2-07
Shell Material	Aluminum
Souriau Part Nbr	8STA11235SN
Souriau Part Nbr_1	8STA1-12-35SN
Straight Shrink Boot	202K142-25-0
Alumel Contact	605348
Chromel Contact	605346
Termination Style	Crimp

Price $70.50 / EA

Shipping details

Availability: 9 Each In Stock, ready to be shipped

Quantity:

Documents

Drawing AS112-35SN

Deutsch AS Series Catalog Pages
