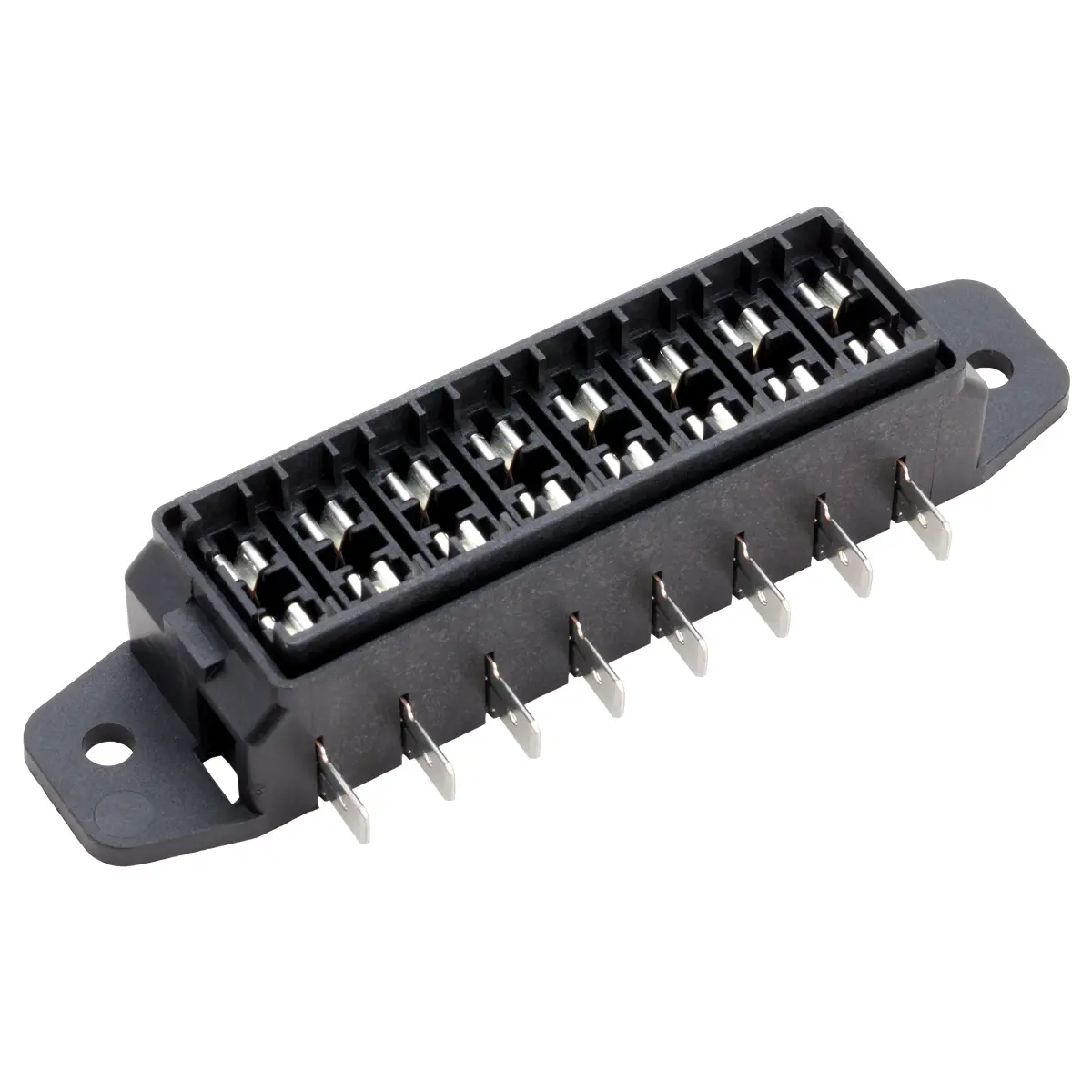

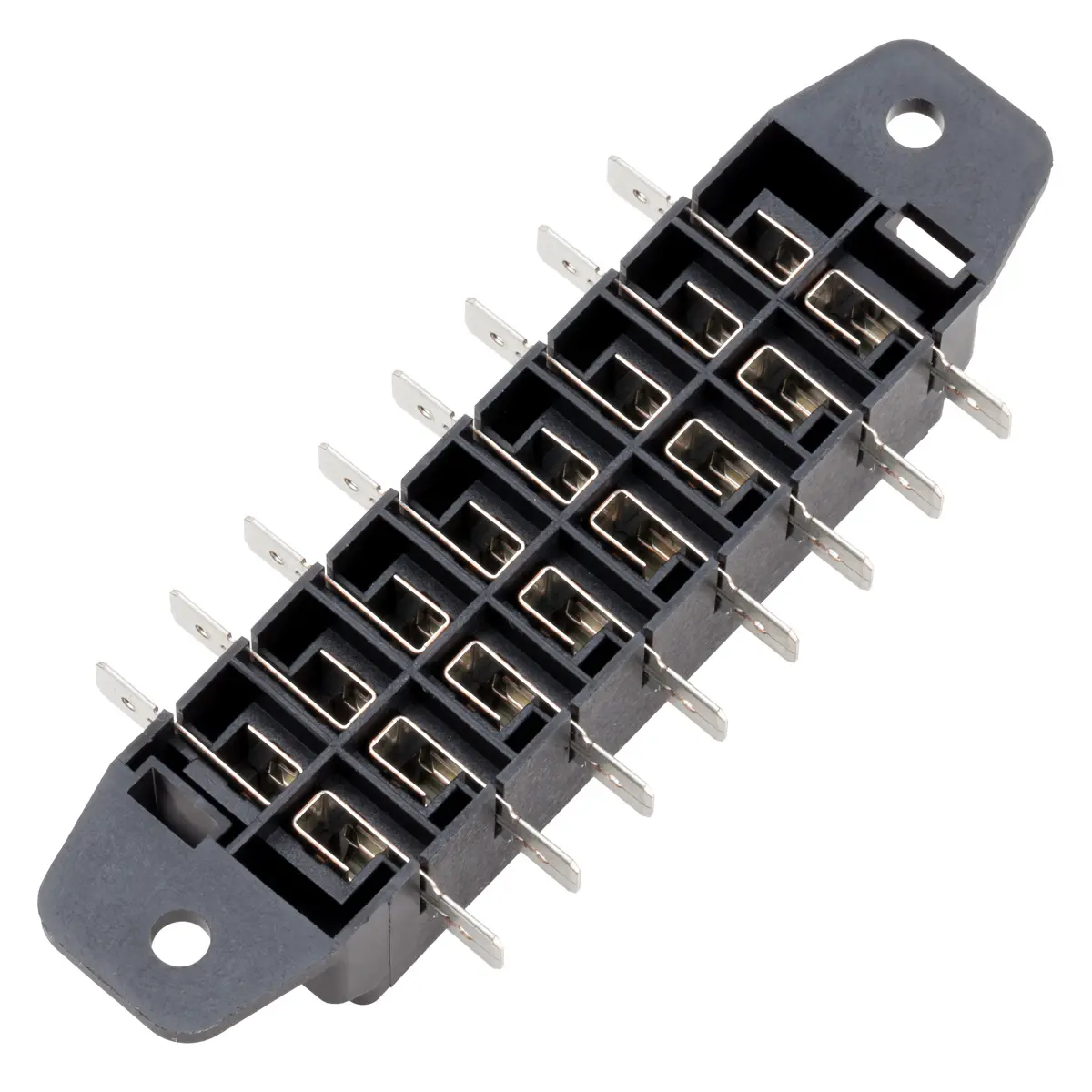

8 way ATC/ATO fuse holder with lateral (side) entry. Uses standard 1/4" push on terminals.
Fuseblock Details
- Termination: 1/4" push on terminals CuSN tin plated
- Temperature: -30/+85 ºC
- Body Material: PA 66-GF30 HB
- Overall Width: 120mm
- Overall Depth: 29.6mm
- Mounting Holes: 2 X 5.3mm
- IP Rating: IP22
- Max Voltage 32V
- Fuse Size 19mm
- Flamability Rating: UL94V-2
High Quality Made In Italy
