MS3476L14-19P Mil-Spec Circular Connector 19-Way Plug Kit

Name: MS3476L14-19P PLUG CONNECTOR
SKU: MS3476L14-19P
Price: 47.56 USD
Availability: InStock

Aero-Electric

Item No. MS3476L14-19P

$47.563 / EA

Features & details

The MS3476L14-19P is a 19-way plug circular connector kit with pin (male) contacts. The connector housing is electroless nickel aluminum. To create a mated pair, a receptacle connector kit is required.

MS3476L14-19P Kit Includes

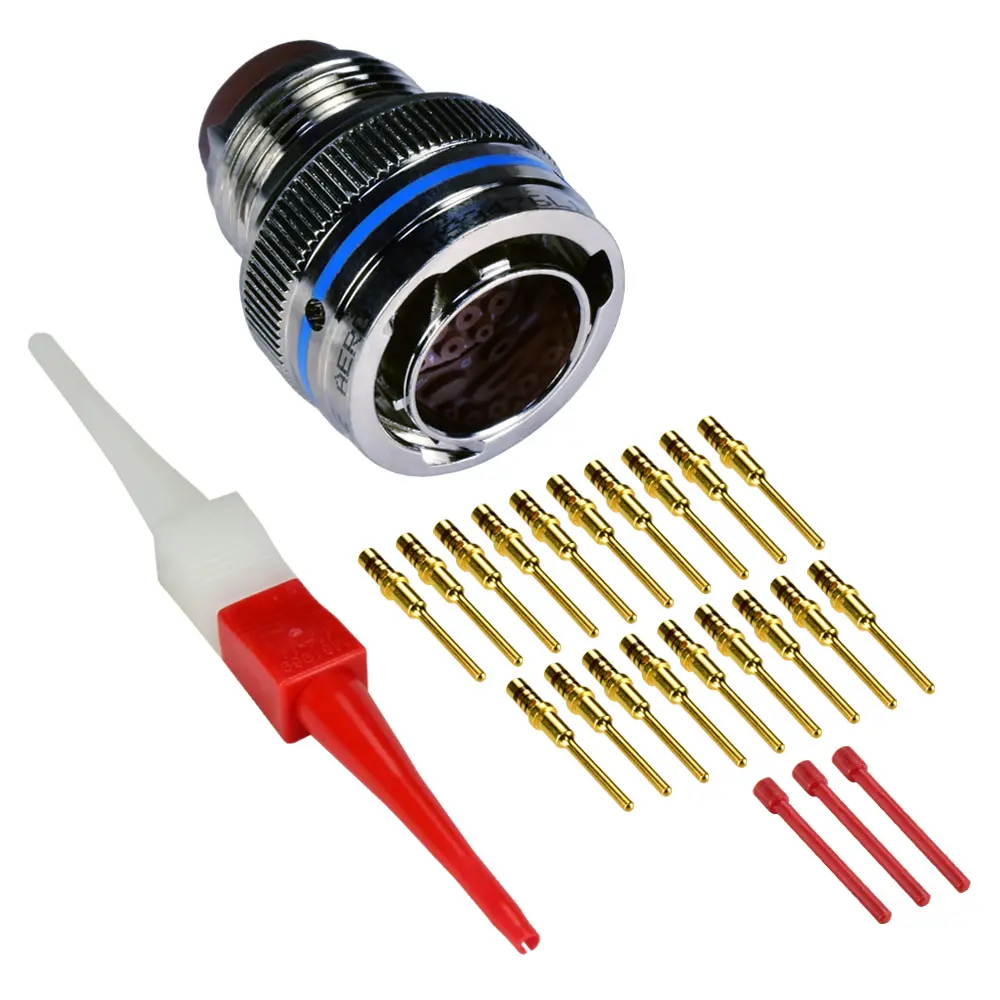

(1) 19-Way Plug Connector Body.
(19) Size 20 pin (male) contacts, 22-18 AWG, 7.5 A ea. M39029/4-110
(1) Insert/Removal Tool M81969/14-02
(1) Cavity Plug MS27488-20-2 The quantity included varies.

Mating Connector

Please refer to the Mating Connectors tab on this page.

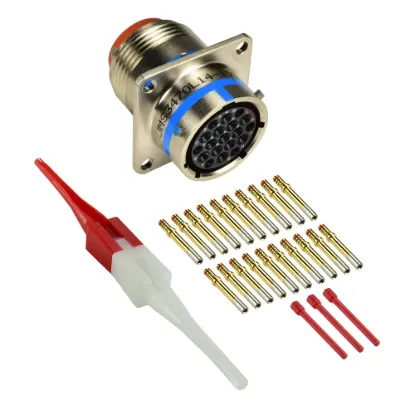

4-Bolt Flanged ReceptacleMS3470L14-19S

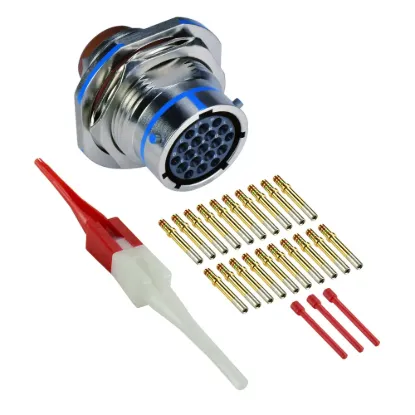

Jam-Nut ReceptacleMS3474L14-19S

Required Crimp Tooling

DMC Crimp FrameAF8 requires TH1A
DMC TurretTH1A requires AF8
DMC PositionerK1S requires AFM8 (size 20 contacts only)
DeutschHDT-48-00 all-in-1 tool.
Econo Tool18890 size, 20 contacts only.

Shrink Boots

Straight202K142-25-0
90°222K142-25-0

Shrink Boot Adapter

M85049/60-2G14N

Deutsch Autosport Variant (will not mate with Mil-Spec connectors)

AS614-19PN

Technical Information

The Specifications tab lists technical data as well as other useful information.
The Documents section lists CAD models, technical drawings, and catalog pages when available.

Notes

Please refer to the Mating Connectors, Related Items, and Crimp Tools tabs to purchase the mating connector, heat shrink boots, and accessories.

Product specification

Series / Range	Mil-Spec
Shell Size	14
Wire Range (AWG)	22-18
Contact Gender	Pin (Male)
Shell Style	Plug
Shell Plating	Electroless Nickel
Replacement Contacts	M39029/4-111
Insert Arrangement	14-19
No. Of Positions	19
Contact Size	20
Mixed Contact Sizes	No
90º Shrink Boot	222K142-25-0
Shrink Boot Adapter	M85049/60-2G14N
Connector O.D.	1.183" (30.05 mm)
DMC Crimp Frame	M22520/1-01
Current Rating Per Contact	7.5 A
Metal Insert Tool	DAK83-20B
Metal Removal Tool	DRK83-20B
Filler Plug	MS27488-20-2
Insert / Removal Tool	M81969/14-02
Mating Flange Connector	MS3470L14-19S
Mating Jam Nut Connector	MS3474L14-19S
DMC Positioner / Turret	M22520/1-02
Shell Material	Aluminum
Straight Shrink Boot	202K142-25-0
Alumel Contact	710102
Chromel Contact	710103
Termination Style	Crimp

Price $47.563 / EA
