MiniSeal High-Performance, Immersion-Resistant Crimp Splices

MiniSeal wire-to-wire splicing products offer solutions for hundreds of aerospace and defense applications. These environment-resistant splices provide excellent reliability, long-term performance, MIL-S-81824/1 qualification, and a low installed cost. MiniSeal crimp splices consist of a plated copper crimp barrel and a separate, heat-shrinkable, transparent sealing sleeve. They can be used on a combination of wires, from 1:1 to 10:10. MiniSeal splices are one of the smallest, lightest, and most environment-resistant splices available.

The recommended crimp tool is 3137 CT

Types of MiniSeal splices:

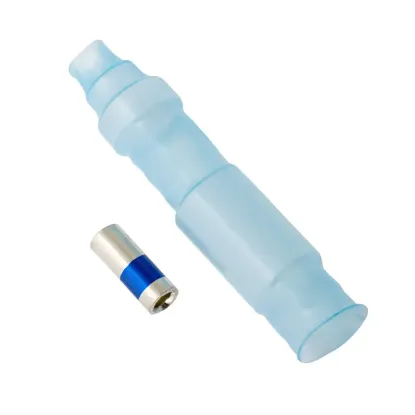

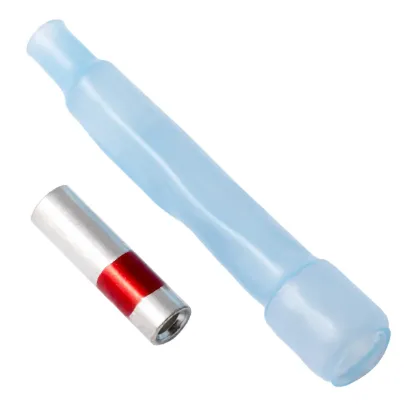

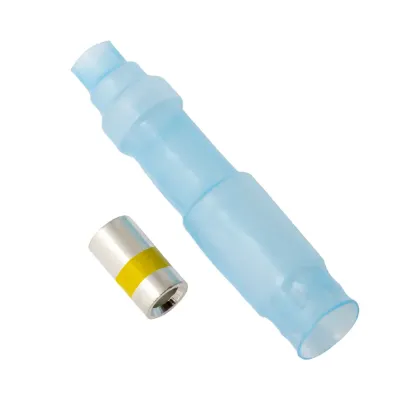

• Stub: D-609 series will need to be covered with either SCL, ATUM, or W5DL tubing (not included in the purchase of splice)

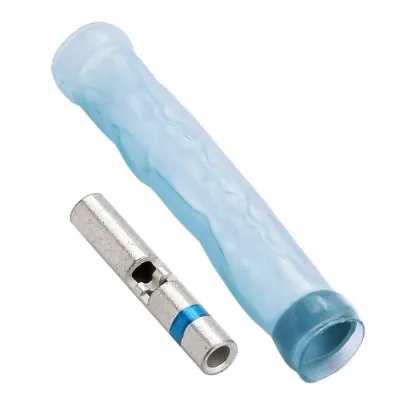

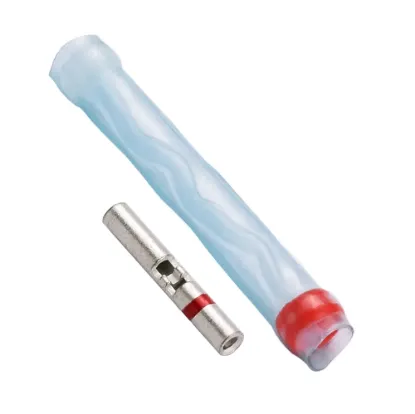

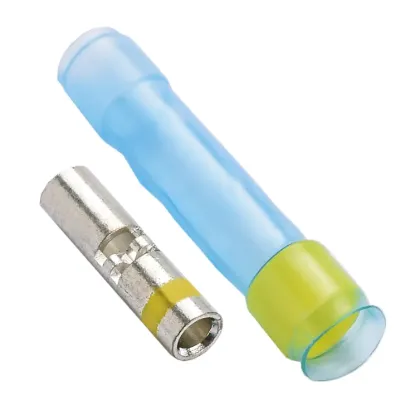

• Butt: M81824/1 series comes with a color-coordinated heat-shrink sleeve

Color Bands:

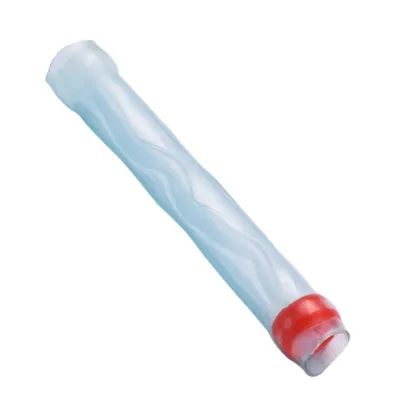

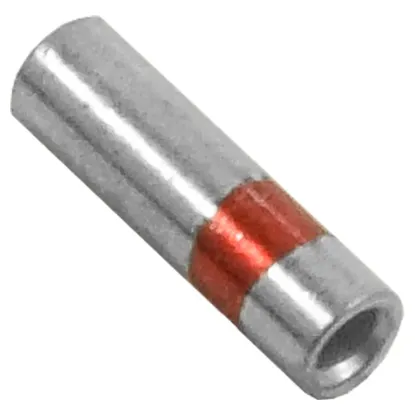

• Red 18-22AWG

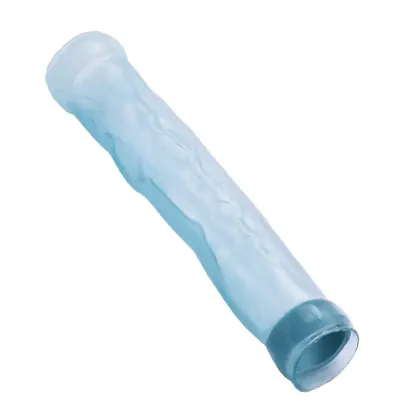

• Blue 16-14AWG

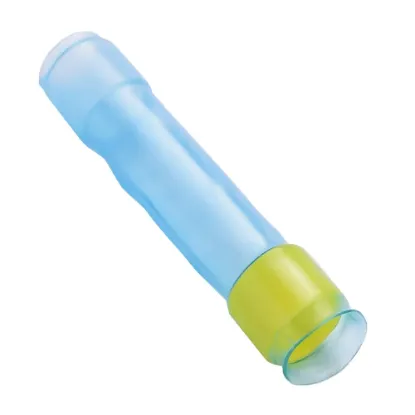

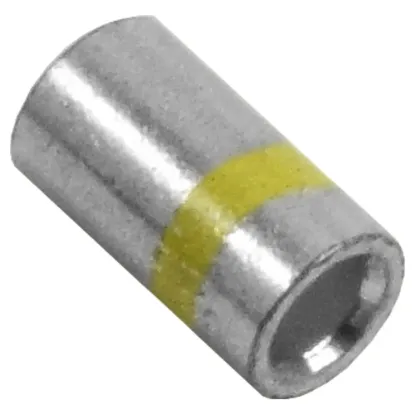

• Yellow 12-10AWG
