ASDD108-11SD Deutsch ASDD Series 11-Way Receptacle Kit

Name: ASDD,11 WAY,INLINE,SKT,D KEY,GREEN
SKU: ASDD108-11SD
Availability: InStock

Deutsch

Item No. ASDD108-11SD

Special order item Price on request

Features & details

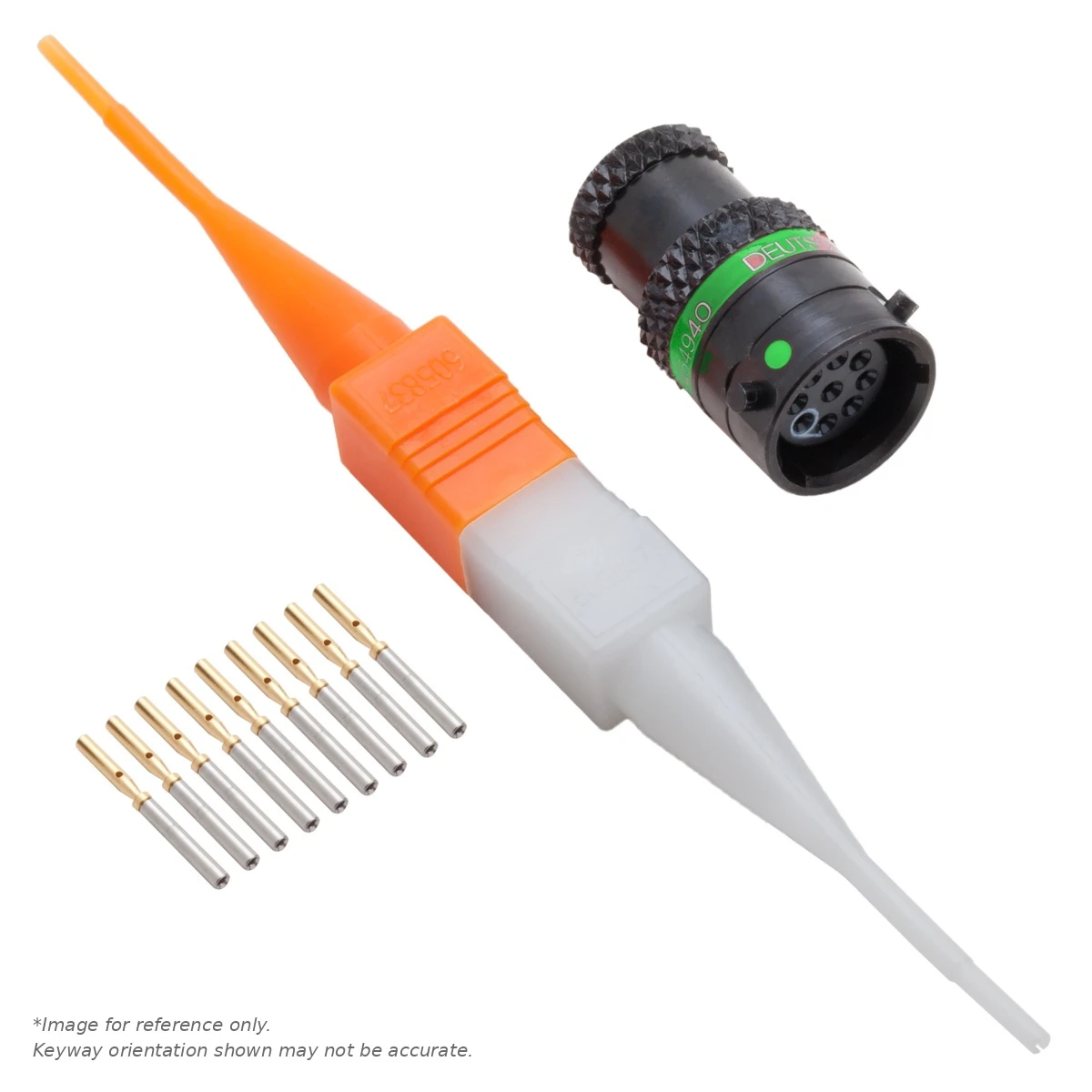

Deutsch Autosport ASDD108-11SD 11-way flanged receptacle connector kit with socket (female) contacts in the D (green) key configuration.

The connector's green band identifies the D keyway (only the same color keyways will mate together)

Kit Includes

(1) 11-Way Flanged Receptacle Connector Body with Screen and Boot Termination Feature.
(11) Size 24 socket (female) contacts (30-24 AWG, 3 A each) 605721
(1) Insert/Removal Tool 605837

Required Crimp Tooling

Crimp FrameM22520/2-01
Positioner/TurretK1639

Shrink Boots

Straight202K121-25-0
90°222K121-25-0

Technical Information

The Specifications Tab lists technical data as well as other helpful information.
The Documents section lists CAD models, technical drawings, and catalog pages when available.

Notes

Please see the Mating Connector, Related Items, and Crimp Tools tabs to purchase the mating connector, heat shrink boots, and accessories.

Product specification

Keyway	D (Green)
Series / Range	ASDD
Shell Size	8
Wire Range (AWG)	30-24
Contact Gender	Socket (Female)
Shell Style	Inline Receptacle
Shell Plating	Zinc (Black)
Replacement Contacts	605721
Insert Arrangement	46245
No. Of Positions	11
Contact Size	24
90º Shrink Boot	222K121-25-0
Connector O.D.	.697" (17.7 mm)
DMC Crimp Frame	M22520/2-01
Current Rating Per Contact	3 A
Filler Plug	600300-24
Insert / Removal Tool	605837
MFG.	TE Connectivity
Mating Plug Connector	ASDD608-11PD

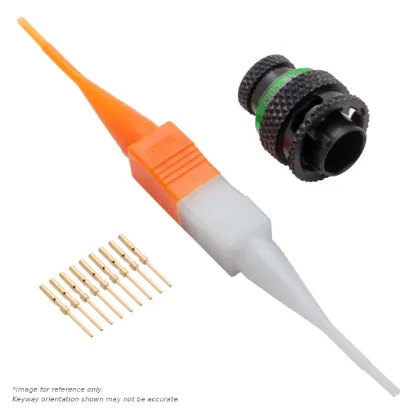

Protective Cap	AS908
DMC Positioner / Turret	K1639
Shell Material	Aluminum
Straight Shrink Boot	202K121-25-0
Termination Style	Crimp

Shipping details

Special order item

This part isn't stocked. Tell us the quantity you need and we'll send pricing and lead time.
