Raychem 202K121-25-0 is used on shell size 8 Mil-Spec connectors and Deutsch AS connectors. The 202K series of lipped boots are also used for straight harness transitions.
Raychem heat shrink boots used in conjunction with Raychem DR-25 sleeving and M22759/32 Tefzel Wire provides a proper motorsport/military-grade wiring loom. Need to seal your shrink boots to your tubing? by far, the best choice is ResinTech RT125 Adhesive.

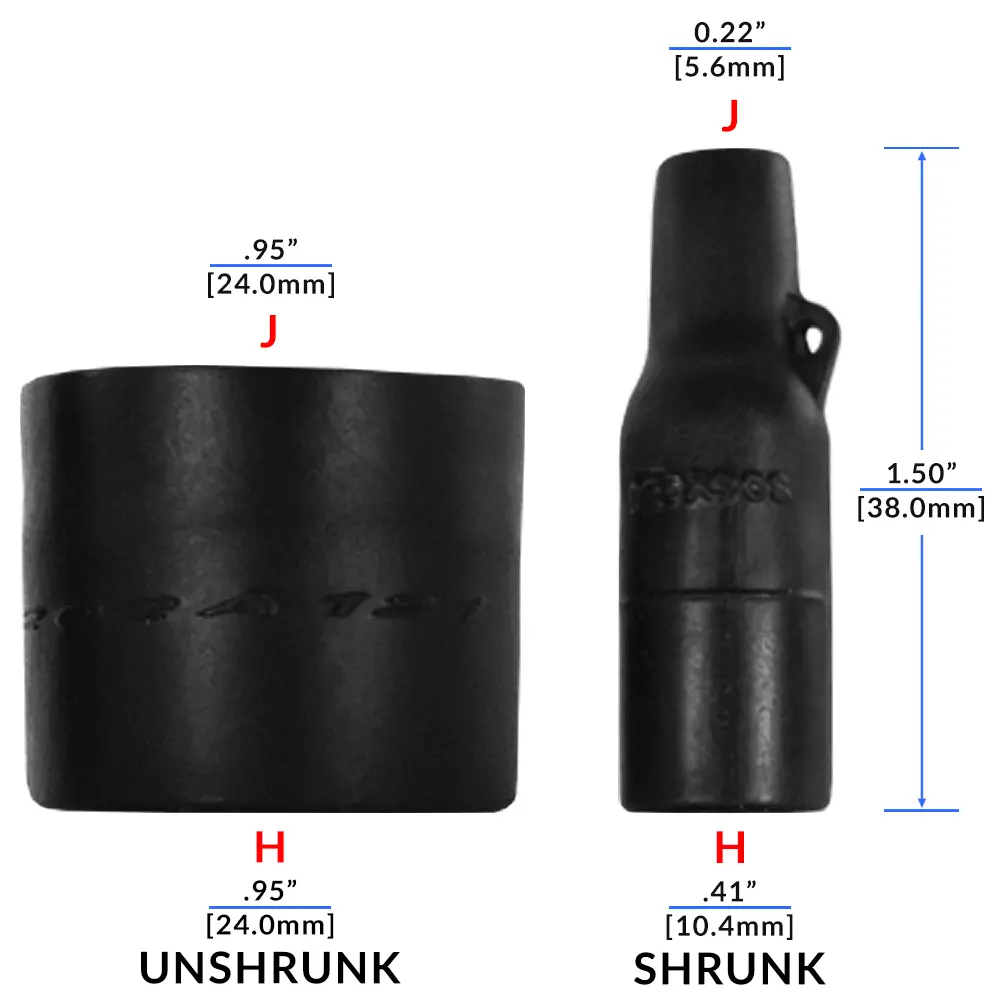

| Raychem 202K121-25-0 Boot Dimensions |
 |
Part Number | (H) Big End | ( J) Small End | P |
UN SHRUNK | SHRUNK | UN SHRUNK | SHRUNK | Total Length |
| 202K121-25-0 | 24mm [.94"] | 10.4mm [.041"] | 24mm [.094"] | 5.6mm [.22"] | 38mm {1.50"] |
| Motorsport/Military-Grade Heat Shrink Tubing |
| DR-25 Yellow Print | DR-25 White Print | V25 No Print |
