ASX602-03PA-HE Deutsch ASX (Micro Xtra Lite) Series 3-Way Plug Kit

Name: ASX,3 WAY,PLG,PIN,A KEY,YELLOW
SKU: ASX602-03PA-HE
Price: 62.17 USD
Availability: InStock

Deutsch

Item No. ASX602-03PA-HE

$62.172 / EA

Features & details

Deutsch ASX602-03PA-HE 3-way plug connector kit with pin (male) contacts in the A (yellow) key configuration.

The connector's yellow band identifies the A keyway (only the same color keyways will mate together)

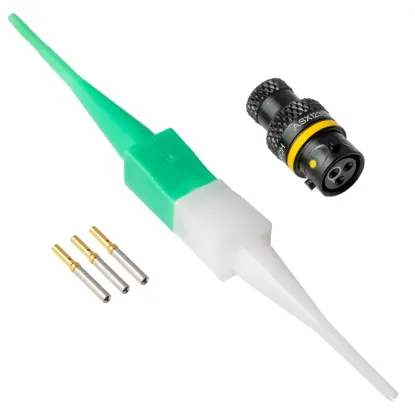

Kit Includes

(1) 3-Way Plug Connector Body with Screen and Boot Termination Feature.
(3) Size 22 pin (male) contacts (28-22 AWG, 3 A each) 604946-31
(1) Insert/Removal Tool M81969/14-01

Required Crimp Tooling

Crimp FrameM22520/2-01
Positioner/TurretK1493

Shrink Boots

Straight203W301-25-G02-0
90°223W601-25-0

Technical Information

The Specifications Tab lists technical data as well as other helpful information.
The Documents section lists CAD models, technical drawings, and catalog pages when available.

Notes

Please see the Mating Connector, Related Items, and Crimp Tools tabs to purchase the mating connector, heat shrink boots, and accessories.

Product specification

Keyway	A (Yellow)
Series / Range	ASX
Shell Size	2
Wire Range (AWG)	28-22
Contact Gender	Pin (Male)
Shell Style	Plug
Shell Plating	Zinc (Black)
Replacement Contacts	604946-31
Insert Arrangement	46056
No. Of Positions	3
Contact Size	22
90º Shrink Boot	223W601-25-0
Connector O.D.	.406" (10.3 mm)
DMC Crimp Frame	M22520/2-01
Current Rating Per Contact	3 A
Filler Plug	600300-22
Insert / Removal Tool	M81969/14-01
MFG.	TE Connectivity
Mating Flange Connector	ASX002-03SA-HE
Mating Inline Connector	ASX102-03SA-HE
Mating PCB Connector	ASX202-03SA
Protective Cap	611546
DMC Positioner / Turret	K1493
Shell Material	Aluminum
Straight Shrink Boot	203W301-25-G02-0
Termination Style	Crimp

Price $62.172 / EA

Shipping details

Availability: 2 Each In Stock, ready to be shipped

Quantity:

Documents

CAD File for ASX602-03PA-HE

DRAWING ASX602-03PA-HE

Deutsch ASX (Micro Xtra Lite) Series Catalog Page
