Deutsch ASX Micro Xtra Lite Series Connectors

Deutsch Autosport ASX Micro Xtra LITE series offers either a 3,5 or 6-way arrangement packed nicely in a tiny #2 shell. Each of the 3 arrangements use a size 24 contact which will handle up to 3 amps per contact and will accepts wires ranging from 24-30awg.

Specifications:

• No. Of Positions: 3,5,6
• Shell Size: 2
• Contact Size: 24 (3 Amp)
• Wire Range: 24-30
• Environmentally sealed to IP67
• Built In Shrink Boot Lip
• Conductive Black Finish

Shrink Boot Options:

• Straight: 203W301-25-0
• 90º: 223W601-25-0

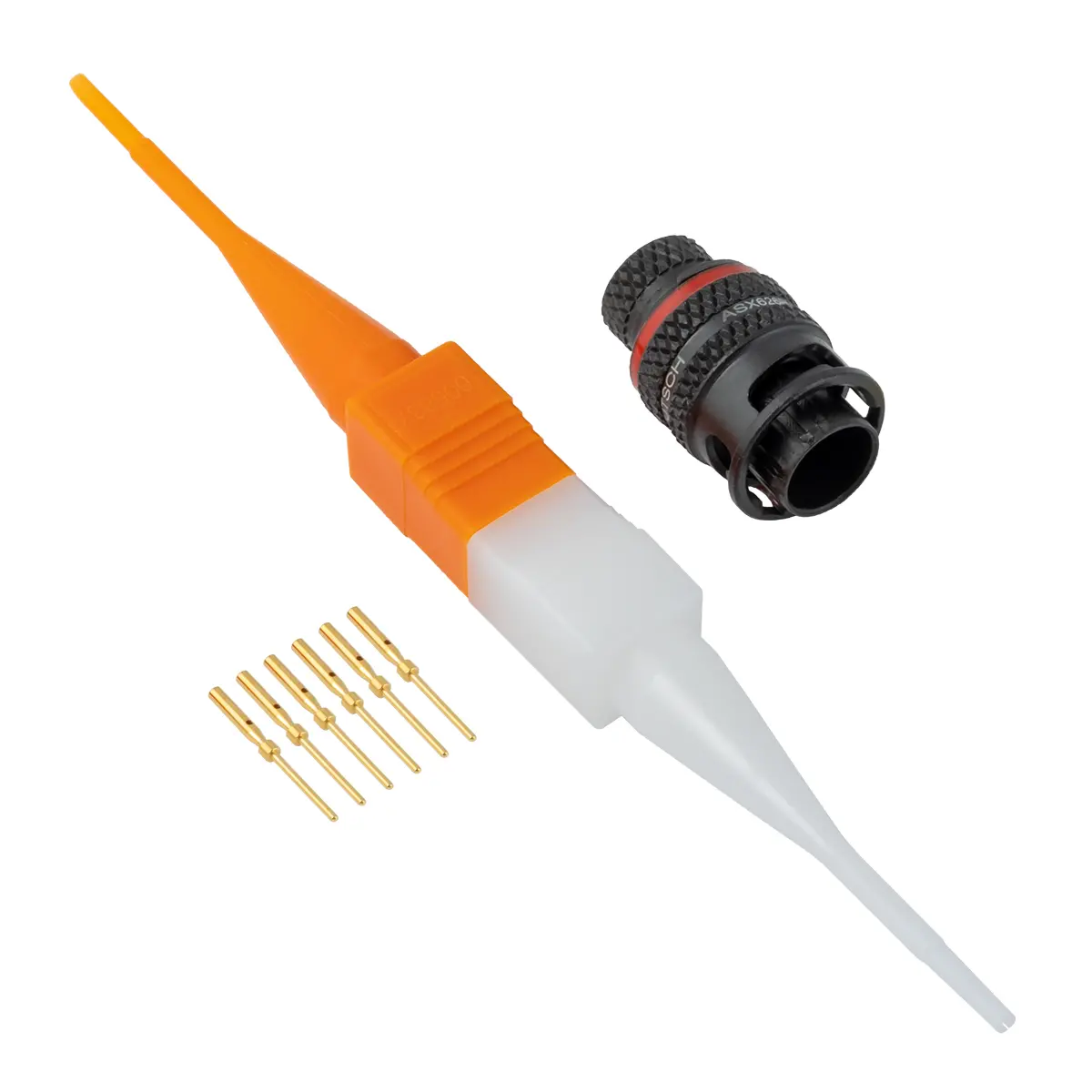

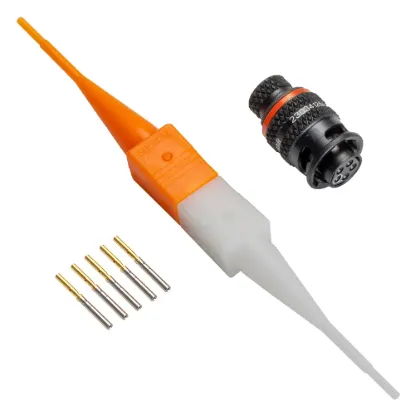

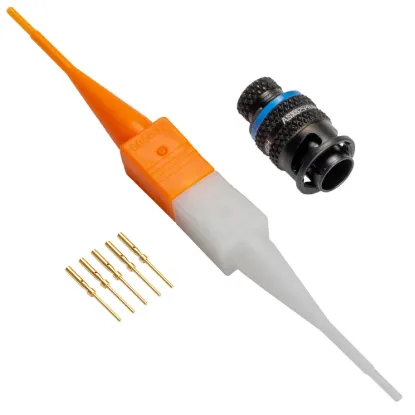

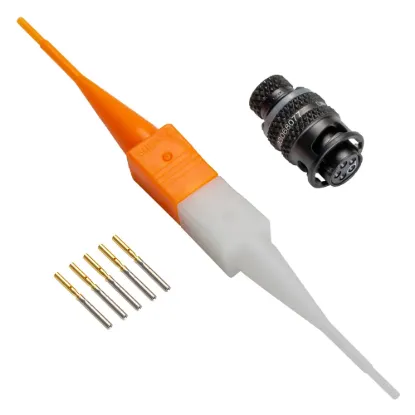

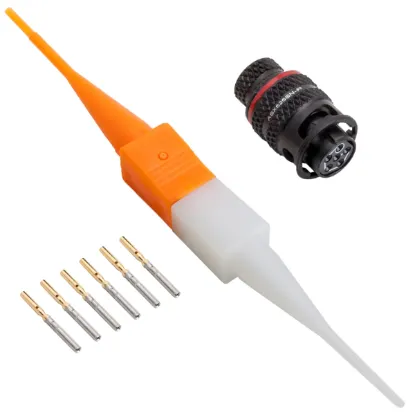

• Plug ASX6: Male connector available in either pin or socket. Mates to ASX0 or ASX1

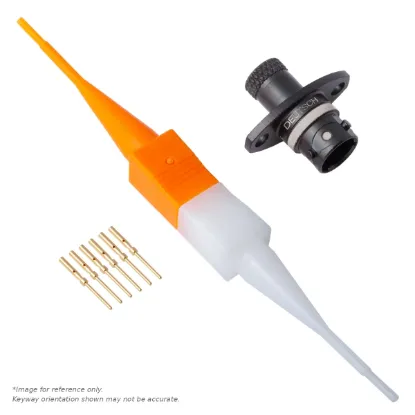

• Flange Receptacle ASX0: Female 2 bolt flanged receptacle available in either pin or socket. Mates to ASX6

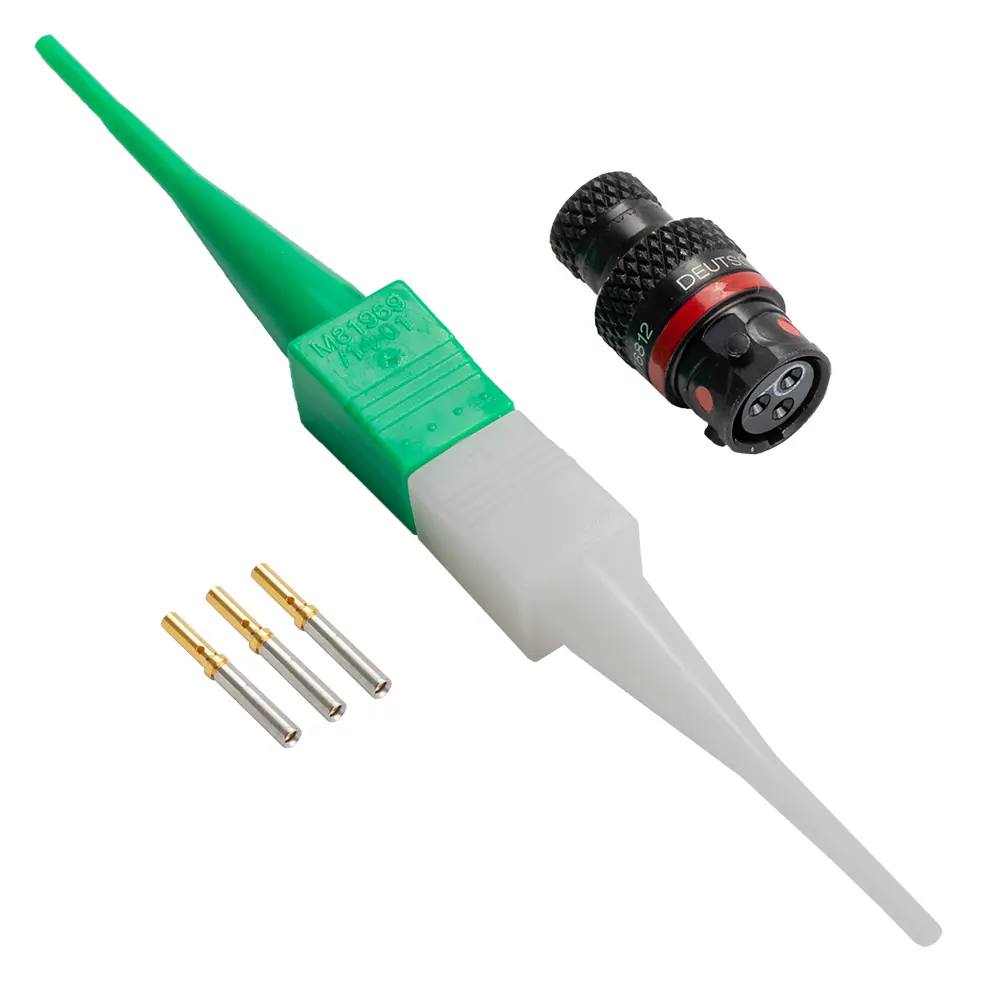

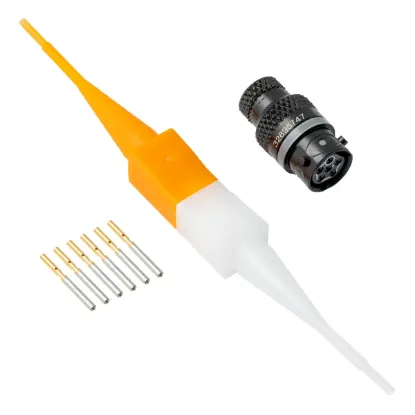

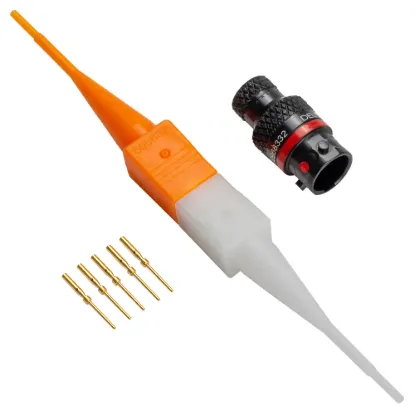

• Inline Receptacle ASX1: Female inline receptacle available in either pin or socket. Mates to ASX6

Keyway Colors:

• N = Red
• A = Yellow
• B = Blue
• C = Orange
• D = Green
• E = Gray
• U = Violet (Universal for test harness only available on plug side only)
