M22759/16-22-14-PRSP Mil-W-22759/16

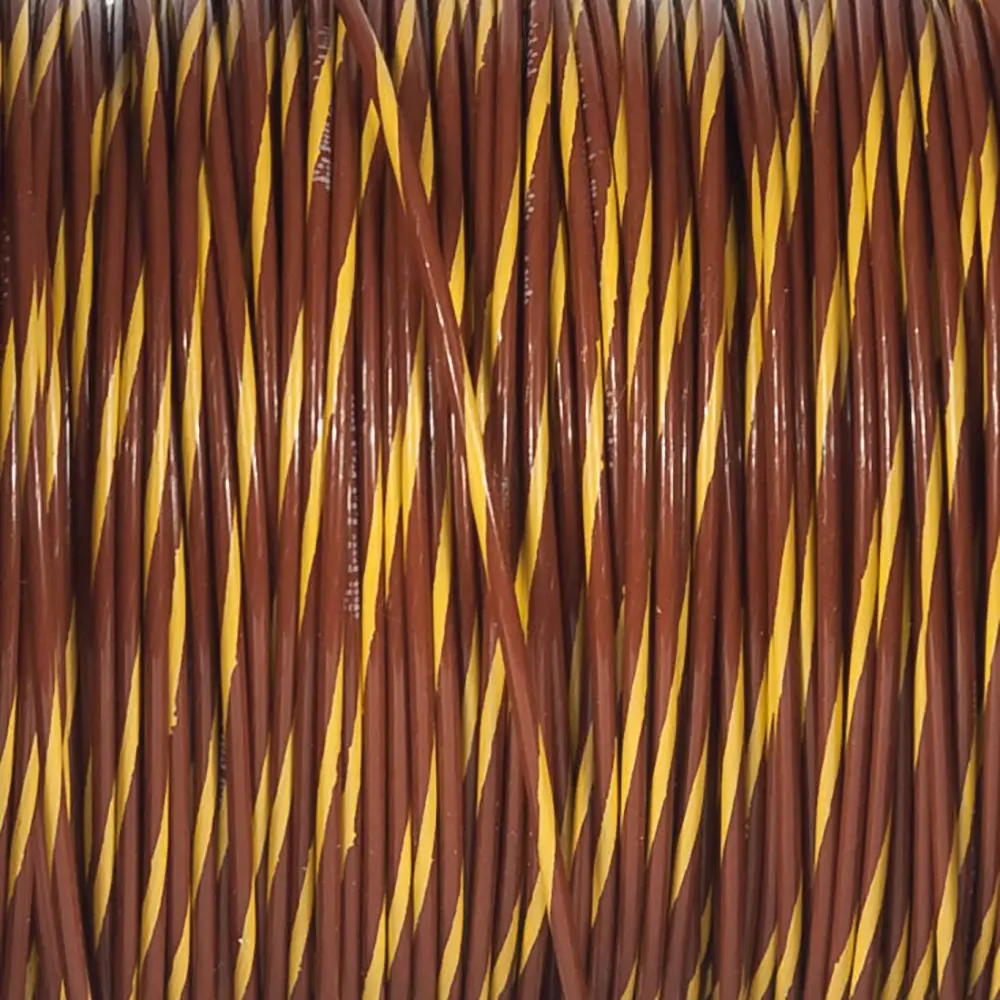

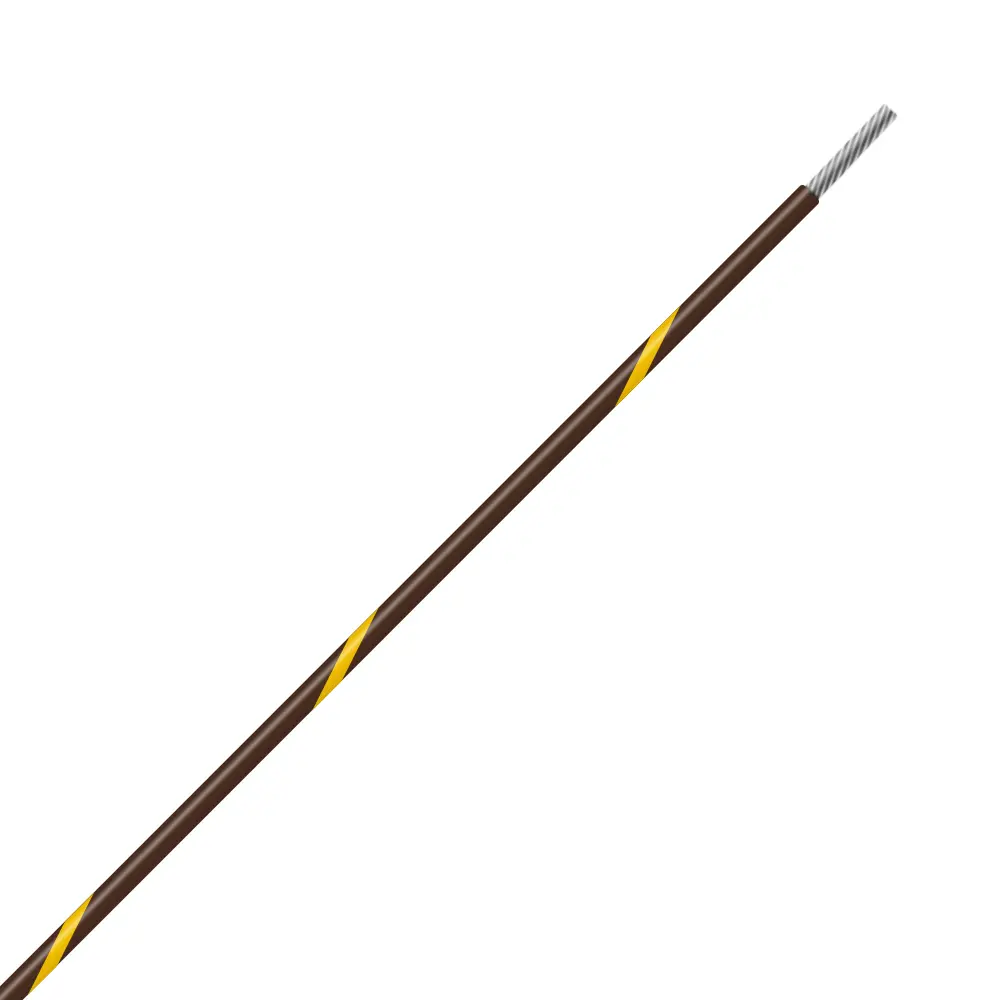

Name: M22759/16-22-14 BROWN/YELLOW BTF STRIPE
SKU: M22759/16-22-14-PRSP
Price: 0.57 USD
Availability: InStock

Thermax

Item No. M22759/16-22-14-PRSP

$0.566 / FT

Features & details

ALL WIRE IS CUT TO LENGTH — RETURNS ARE NOT ACCEPTED

Standard-wall extruded ETFE insulation, also known as Tefzel, over a tin-plated copper conductor. Built for aerospace and other work that needs low weight, tight diameter tolerance and mechanical toughness, and it stands up well to chemicals and radiation. Also specified as SAE AS22759/16 and MS22759/16.

Specifications

Specification: MIL-W-22759/16, SAE AS22759/16, MS22759/16
Conductor: Tin-plated copper, 19/34 stranding
Insulation: Extruded ethylene tetrafluoroethylene (ETFE), standard wall
Voltage rating: 600 V
Temperature rating: −55°C to 150°C (−67°F to 302°F)
Color coding: MIL-STD-104

22 AWG Dimensions and Electrical Data

Stranding	19/34
Conductor diameter	.030 in 0.76 mm
Insulation diameter, minimum	.050 in 1.27 mm
Insulation diameter, maximum	.054 in 1.37 mm
Weight	3.52 lb/1000 ft 5.24 kg/1000 m
Maximum resistance @ 20°C	16.2 Ω/1000 ft 53.1 Ω/km

Nominal values unless stated otherwise.

Wire Identification

Green or white print on the insulation
Military part number including AWG size

Standard Uses

Aircraft wire
Marine wire
Automotive wire
Motorsport and race car wire
Data acquisition looms
Chassis looms

Mil-Spec Wiring Color Codes

0 Black	1 Brown	2 Red	3 Orange	4 Yellow
5 Green	6 Blue	7 Violet	8 Grey	9 White

Price $0.566 / FT

Shipping details

Availability: 3,261 Feet In Stock, ready to be shipped

Wire and cable are supplied as continuous, unspliced lengths and are subject to Prowire's minimum cut-length policy. Click here for more details

Quantity:

Documents

M22759/16 Datasheet

AS9120B & ISO 9001 certified
Genuine components
We only sell genuine components and have a strict counterfeit policy.
How we prevent counterfeits
- Vetted suppliers only. We buy from thoroughly vetted suppliers, and every receipt is inspected and stored securely.
- Manufacturer markings kept. Where the manufacturer brands or marks its parts, those markings stay on them. Not every manufacturer marks its parts.
- Suspect parts are quarantined. If we encounter a suspect part, it's quarantined and investigated, and reported to the relevant authorities.
Our processes are audited under AS9120B. Buying from the gray market carries a real counterfeit risk, even when lead times are long. If you suspect a counterfeit, quarantine it and contact us. Read more
Thermax
Thermax is our main product line for this item. We also reserve the right to supply an equivalent part from any MIL QPL (Qualified Products List) manufacturer in case of shortages or long lead times from our main vendor.
