ASU103-05SB-HE Deutsch ASU Series 5-Way Receptacle Kit

Name: ASU,5 WAY,INLINE,SKT,B KEY,BLUE
SKU: ASU103-05SB-HE
Price: 44.75 USD
Availability: InStock

Deutsch

Item No. ASU103-05SB-HE

$44.748 / EA

Features & details

Deutsch Autosport ASU103-05SB-HE 5-way inline receptacle connector kit with socket (female) contacts in the B (blue) key configuration.

The connector's blue band identifies the B keyway (only the same color keyways will mate together)

Kit Includes

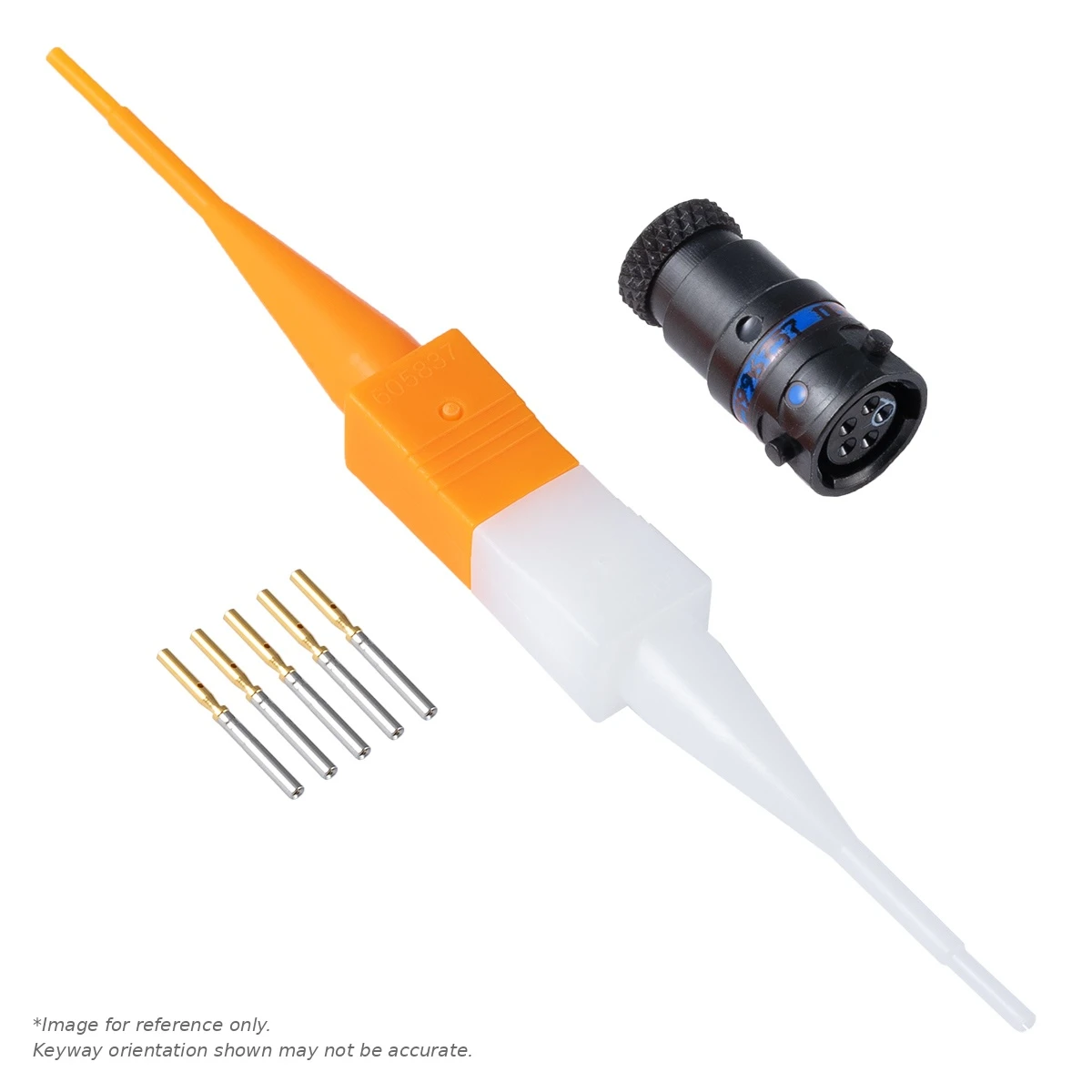

(1) 5-Way Inline Receptacle Connector Body with Screen and Boot Termination Feature.
(5) Size 24 socket (female) contacts (30-24 AWG, 5 A each) 605704
(1) Insert/Removal Tool 605837

Required Crimp Tooling

Crimp FrameM22520/2-01
Positioner/TurretK1586

Shrink Boots

Straight204W221-25-G03-0
90°224W221-25-G03-0

Technical Information

The Specifications Tab lists technical data as well as other helpful information.
The Documents section lists CAD models, technical drawings, and catalog pages when available.

Notes

Please see the Mating Connector, Related Items, and Crimp Tools tabs to purchase the mating connector, heat shrink boots, and accessories.

Product specification

Keyway	B (Blue)
Series / Range	ASU
Shell Size	3
Wire Range (AWG)	30-24
Contact Gender	Socket (Female)
Shell Style	Inline Receptacle
Shell Plating	Zinc (Black)
Replacement Contacts	605704
Insert Arrangement	46086
No. Of Positions	5
Contact Size	24
90º Shrink Boot	224W221-25-G03-0
Connector O.D.	.358" (9.1 mm)
DMC Crimp Frame	M22520/2-01
Current Rating Per Contact	5 A
Filler Plug	600300-24
Insert / Removal Tool	605837
MFG.	TE Connectivity
Mating Plug Connector	ASU603-05PB-HE
Protective Cap	605684
DMC Positioner / Turret	K1586
Shell Material	Aluminum
Straight Shrink Boot	204W221-25-G03-0
Termination Style	Crimp

Price $44.748 / EA
