ASX002-06SN-HE Deutsch ASX (Micro Xtra Lite) Series 6-Way Receptacle Kit

Deutsch
Item No. ASX002-06SN-HE
$37.56 / EA
Features & details

Deutsch ASX002-06SN-HE 6-way flanged receptacle connector kit with socket (female) contacts in the N (red) key configuration.

The connector's red band identifies the N keyway (only the same color keyways will mate together)

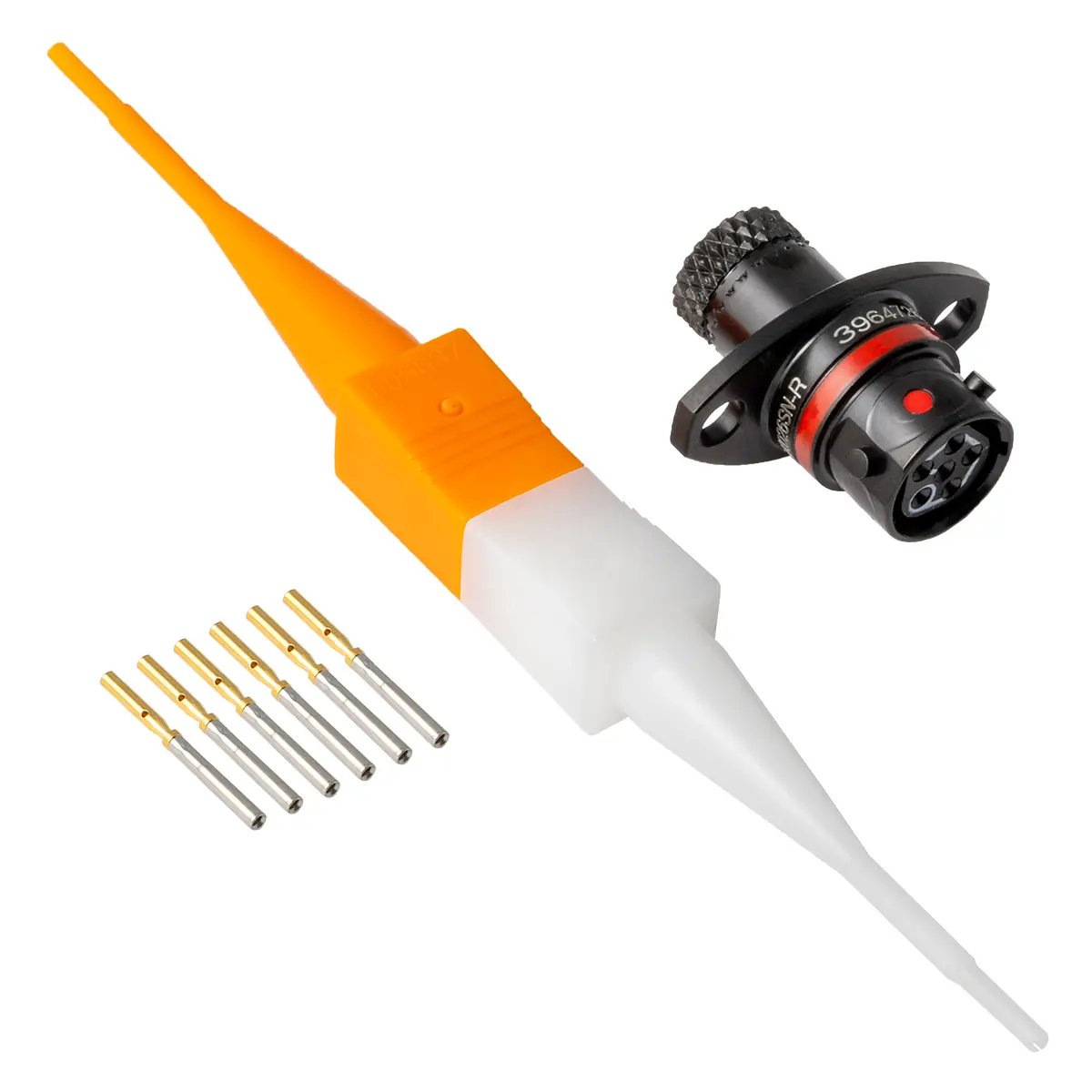

Kit Includes
  • (1) 6-Way Flanged Receptacle Connector Body with Screen and Boot Termination Feature.
  • (6) Size 24 socket (female) contacts (30-24 AWG, 3 A each) 605704
  • (1) Insert/Removal Tool 605837
Required Crimp Tooling
Shrink Boots
Technical Information
  • The Specifications Tab lists technical data as well as other helpful information.
  • The Documents section lists CAD models, technical drawings, and catalog pages when available.
Notes
  • Please see the Mating Connector, Related Items, and Crimp Tools tabs to purchase the mating connector, heat shrink boots, and accessories.
Product specification
Keyway N (Red)
Series / Range ASX
Shell Size 2
Wire Range (AWG) 30-24
Contact Gender Socket (Female)
Shell Style Flanged Oval Receptacle
Shell Plating Zinc (Black)
Replacement Contacts 605704
Insert Arrangement 46056
No. Of Positions 6
Contact Size 24
90º Shrink Boot 223W601-25-0
Connector O.D. .412" (10.46 mm)
DMC Crimp Frame M22520/2-01
Current Rating Per Contact 0.125
Filler Plug 600300-24
Receptacle Gasket GV-2
Insert / Removal Tool 605837
MFG. TE Connectivity

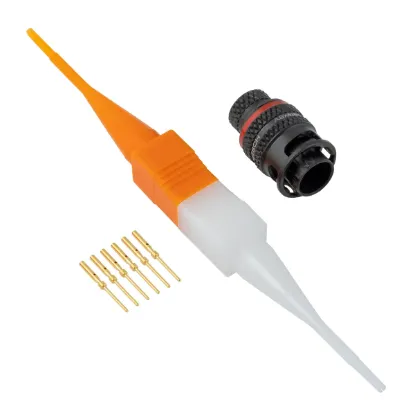

Mating Plug Connector ASX602-06SN-HE
Nut Plate AS-2
Panel Cutout .366" (9.3 mm)
Protective Cap 611545
DMC Positioner / Turret K1586
Shell Material Aluminum
Straight Shrink Boot 203W301-25-G02-0
Termination Style Crimp
