M22759/16-18-97-PRSP Mil-W-22759/16

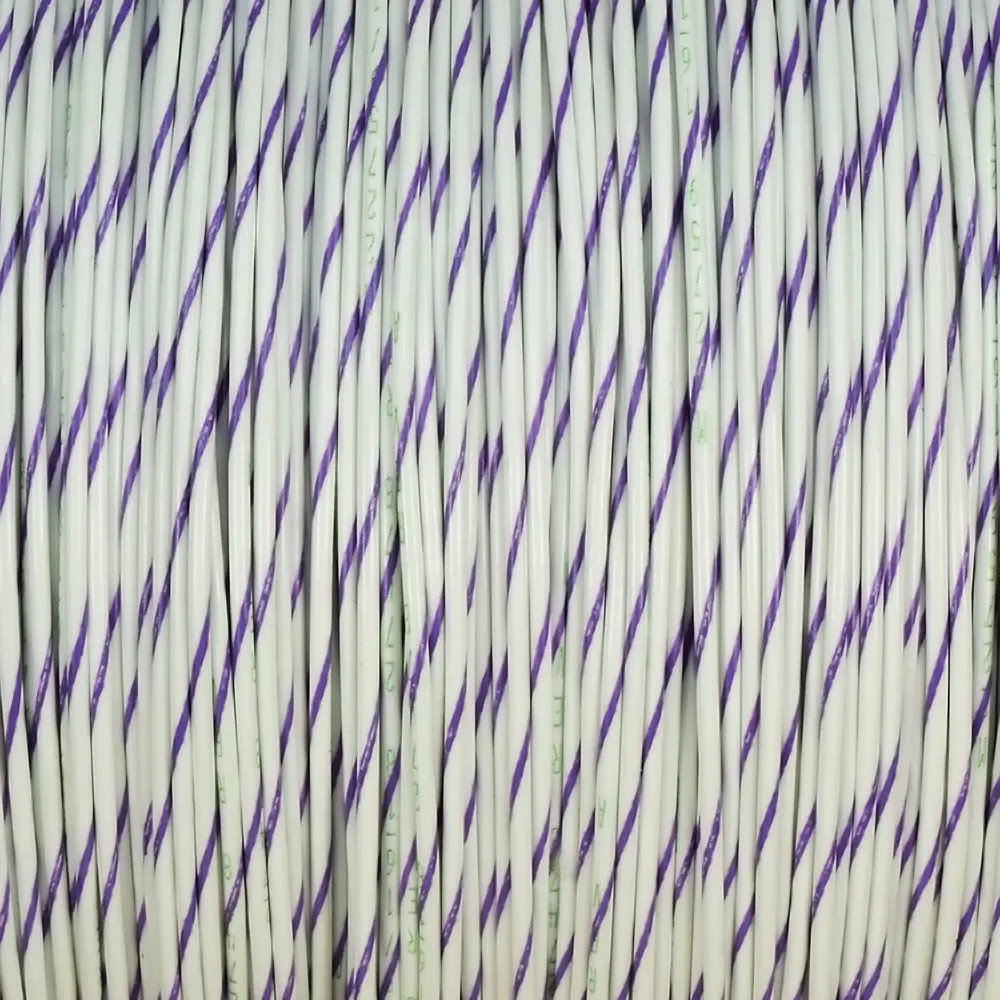

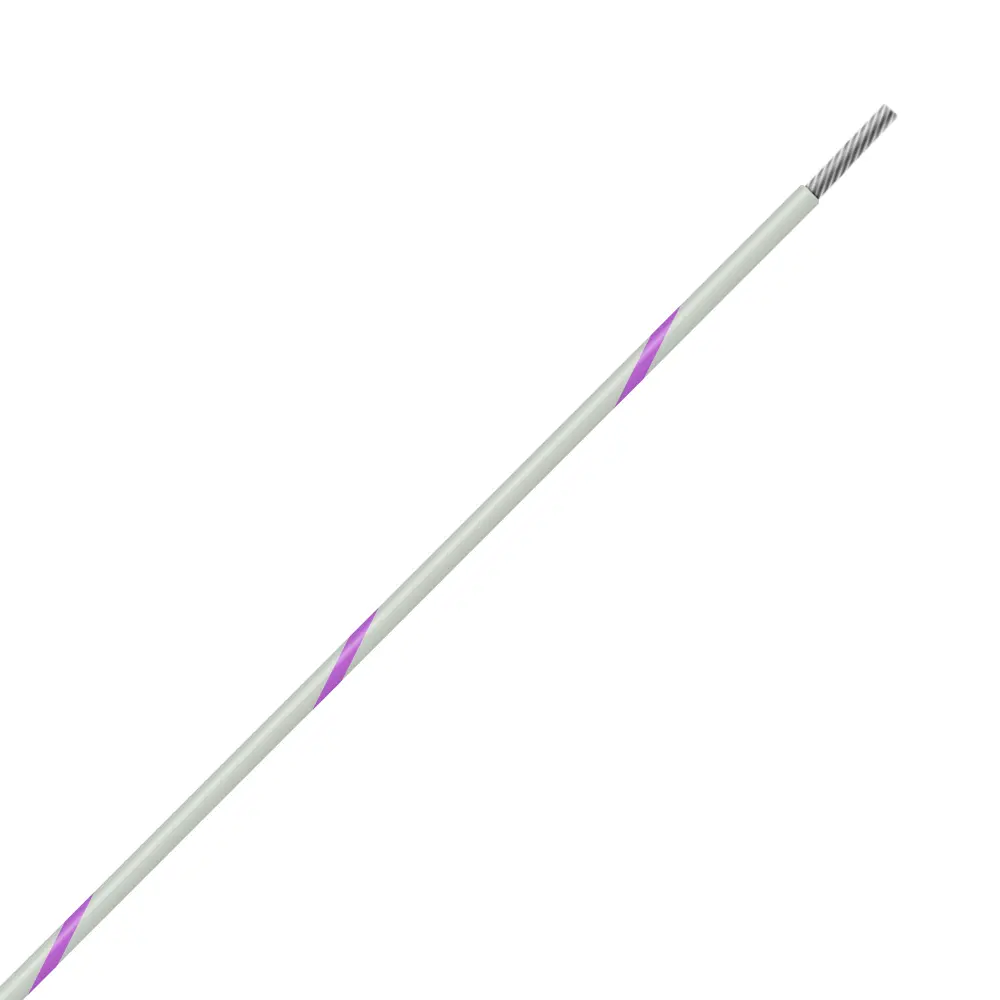

Name: M22759/16-18-97 WHITE/VIOLET BTF STRIPE
SKU: M22759/16-18-97-PRSP
Price: 1.33 USD
Availability: InStock

Thermax

Item No. M22759/16-18-97-PRSP

$1.325 / FT

Features & details

ALL WIRE IS CUT TO LENGTH — RETURNS ARE NOT ACCEPTED

Standard-wall extruded ETFE insulation, also known as Tefzel, over a tin-plated copper conductor. Built for aerospace and other work that needs low weight, tight diameter tolerance and mechanical toughness, and it stands up well to chemicals and radiation. Also specified as SAE AS22759/16 and MS22759/16.

Specifications

Specification: MIL-W-22759/16, SAE AS22759/16, MS22759/16
Conductor: Tin-plated copper, 19/30 stranding
Insulation: Extruded ethylene tetrafluoroethylene (ETFE), standard wall
Voltage rating: 600 V
Temperature rating: −55°C to 150°C (−67°F to 302°F)
Color coding: MIL-STD-104

18 AWG Dimensions and Electrical Data

Stranding	19/30
Conductor diameter	.048 in 1.22 mm
Insulation diameter, minimum	.069 in 1.75 mm
Insulation diameter, maximum	.073 in 1.85 mm
Weight	7.65 lb/1000 ft 11.4 kg/1000 m
Maximum resistance @ 20°C	6.23 Ω/1000 ft 20.4 Ω/km

Nominal values unless stated otherwise.

Wire Identification

Green or white print on the insulation
Military part number including AWG size

Standard Uses

Aircraft wire
Marine wire
Automotive wire
Motorsport and race car wire
Data acquisition looms
Chassis looms

Mil-Spec Wiring Color Codes

0 Black	1 Brown	2 Red	3 Orange	4 Yellow
5 Green	6 Blue	7 Violet	8 Grey	9 White

Price $1.325 / FT

Shipping details

Availability: 5,715 Feet In Stock, ready to be shipped

Wire and cable are supplied as continuous, unspliced lengths and are subject to Prowire's minimum cut-length policy. Click here for more details
