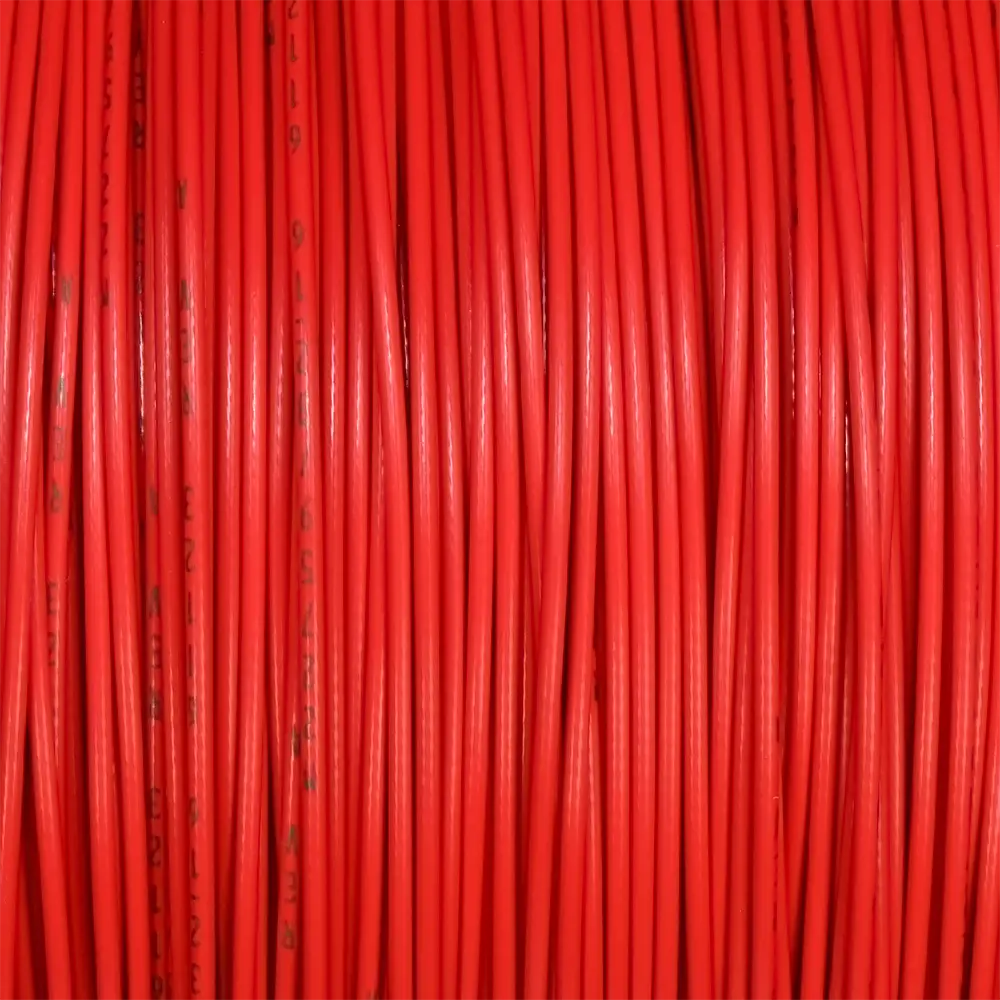

M22759/32-16-2 RED WIRE TEFZEL 16 AWG

Item Number : M22759/32-16-2
In stock
was $1.300 Special Price $0.800
Pricing Breaks
Quantity Ea. Price Ext. Price
10 $0.700 $7.000
25 $0.600 $15.000
50 $0.260 $13.000
100 $0.240 $24.000
250 $0.220 $55.000
500 $0.200 $100.000
1000 $0.170 $170.000
2500 $0.160 $400.000
5000 $0.150 $750.000
Foot

Mil-W-22759/32

ALL WIRE IS CUT TO LENGTH RETURNS ARE NOT ACCEPTED

SAE AS22759/32

MS22759/32

Insulation: Fluoropolymer Cross-linked Modified ETFE

  • Tin Plated Copper Conductor
  • Voltage Rating: 600 Volts
  • Temperature: 150 Degrees C (212F)

M22759/32 Wire Identification:

  • Green or white print on the insulation
  • Military part number including AWG

Fluoropolymer Cross-linked Modified ETFE Single Insulation ( also known as Tefzel ) designed for aerospace applications where weight, dimensional tolerance, and mechanical durability are required. This wire exhibits high chemical and radiation resistance.


Standard Uses:

  • Aircraft Wire
  • Marine Wire
  • Automotive Wire
  • Motorsport Wire
  • Race Car Wire
  • Data Aquistion Looms
  • Chassis Looms

Mil Spec Wiring Color Codes

  • 0 = Black
  • 1 = Brown
  • 2 = Red
  • 3 = Orange
  • 4 = Yellow
  • 5 = Green
  • 6 = Blue
  • 7 = Violet
  • 8 = Grey
  • 9 = White
1
1
More Information
Weight 0.001500
Display UOM Foot
