MS24523-27 ON-OFF-ON SWITCH 1TL1-7

Item Number : MS24523-27
In stock
was $36.540 Special Price $18.270
Pricing Breaks
Quantity Ea. Price Ext. Price
1 $18.270 $18.270
10 $17.660 $176.600
25 $17.050 $426.250
50 $16.440 $822.000
100 $15.830 $1,583.000
250 $14.010 $3,502.500
EA

MS24523-27 Mil-Spec ON-OFF-ON Sealed Switch SPDT 1TL1-7

The Honeywell Micro Switch MS24523-27 TL series toggle switch is an ideal switch for demanding applications, compliant to MIL-DTL-3950, this high performance switch is a logical choice for use in environments where sealing and resistance to shock and vibration are required. The MS24523-27 is particularly suitable for applications in off-highway, aviation, commercial and industrial equipment. This compact, environmentally sealed switch is available in single and double pole configurations.

Switch Operation:

With the switch mounted with the keyway facing in any direction, The switch acts as an ON-OFF-ON switch that is Momentary ON in either direction of the keyway. The center postion is OFF. Refer to the circuit diagram below for wiring specifics.

Common Uses:

  • Turn Indicators
  • Data acquistions systems
  • Winch controls
  • A/B contol
  • Weapons systems

Switch Specs:

  • Single Pole -Double Throw (SPDT)
  • 3 screw
  • Screw mounting holes are #6
  • Mounting threads are 15/32
  • .05-28 Volts DC switch will transfer 20 amps
  • .05-277 Volts AC switch will transfer 15 amps
  • A 6 screw DPST verison of this switch is available Here
  • Silver cadmuim oxided contacts

Circuitry / Operating Action:

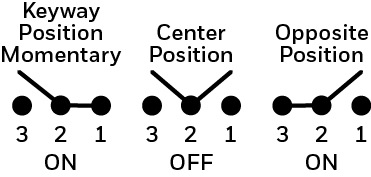

MS24523-22 diagram
