MS24524-27 ON-OFF-ON 2TL1-7

Item Number : MS24524-27
In stock
was $36.720 Special Price $23.400
Pricing Breaks
Quantity Ea. Price Ext. Price
1 $23.400 $23.400
10 $22.620 $226.200
25 $21.840 $546.000
50 $21.060 $1,053.000
100 $20.280 $2,028.000
250 $17.940 $4,485.000
EA

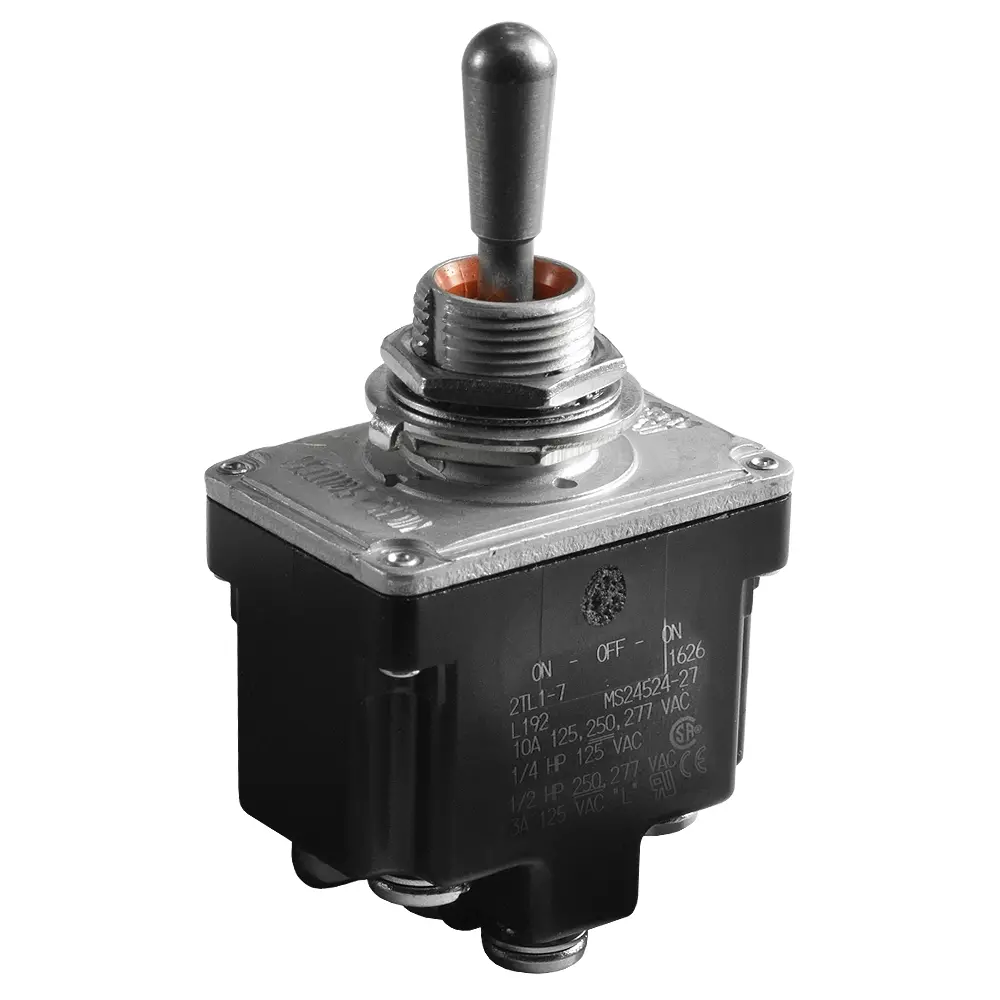

MS24524-27 Mil-Spec ON-OFF-ON Sealed Switch DPDT 2TL1-7

The Honeywell Micro Switch MS24524-27 TL series toggle switch is an ideal switch for demanding applications, compliant to MIL-DTL-3950, this high performance switch is a logical choice for use in environments where sealing and resistance to shock and vibration are required. The MS24524-27 is particularly suitable for applications in off-highway, aviation, commercial and industrial equipment. This compact, environmentally sealed switch is available in single and double pole configurations.

Switch Operation:

With the switch mounted with the keyway facing in any direction, The switch acts as an ON-OFF-ON switch that is Momentary ON in either direction of the keyway. The center postion is OFF. Bridge both poles together to get a full 30 amp capacity switch. Refer to the circuit diagram below for wiring specifics.

Common Uses:

  • Reverse polarity motor operations
  • Winch controls
  • Light bar actuators
  • A/B contol
  • Weapons systems

Switch Specs:

  • Double Pole -Double Throw (DPDT)
  • 6 screw
  • Screw mounting holes are #6
  • Mounting threads are 15/32
  • .05-28 Volts DC switch will transfer 20 amps
  • .05-277 Volts AC switch will transfer 15 amps
  • A 3 screw SPDT verison of this switch is available Here
  • Silver cadmuim oxided contacts

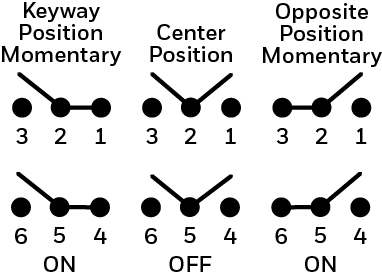

Circuitry / Operating Action:

MS24523-22 diagram
