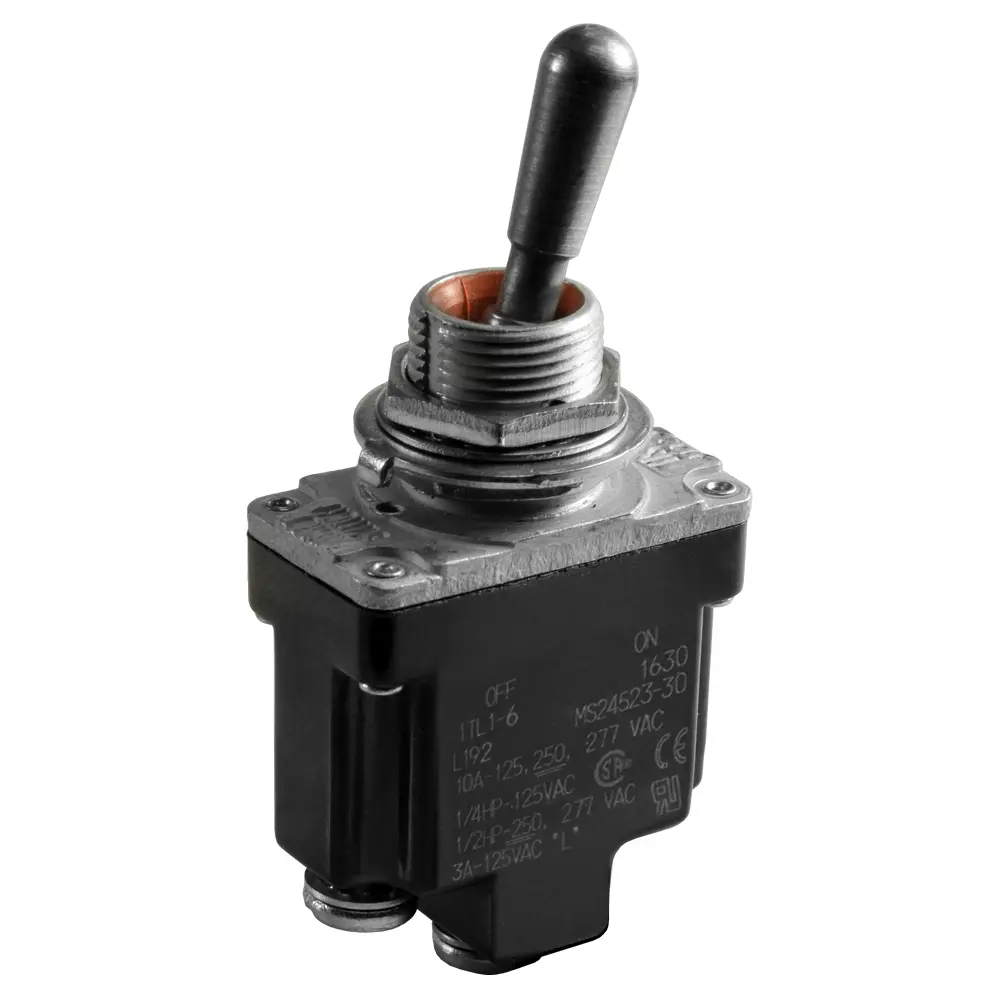

MS24523-30 Mil-Spec OFF-ON Sealed Switch SPST 1TL1-6

The Honeywell Micro Switch MS24523-30 TL series toggle switch is an ideal switch for demanding applications, compliant to MIL-DTL-3950, this high performance switch is a logical choice for use in environments where sealing and resistance to shock and vibration are required. The MS24523-30 is particularly suitable for applications in off-highway, aviation, commercial and industrial equipment. This compact, environmentally sealed switch is available in single and double pole configurations.

Switch Operation:

With the switch mounted with the keyway facing up , The switch acts as an OFF-ON switch that is Momentary in the ON position.

Common Uses:

• Starter switches
• Horns / Sirens
• Washer pumps
• Weapons systems
