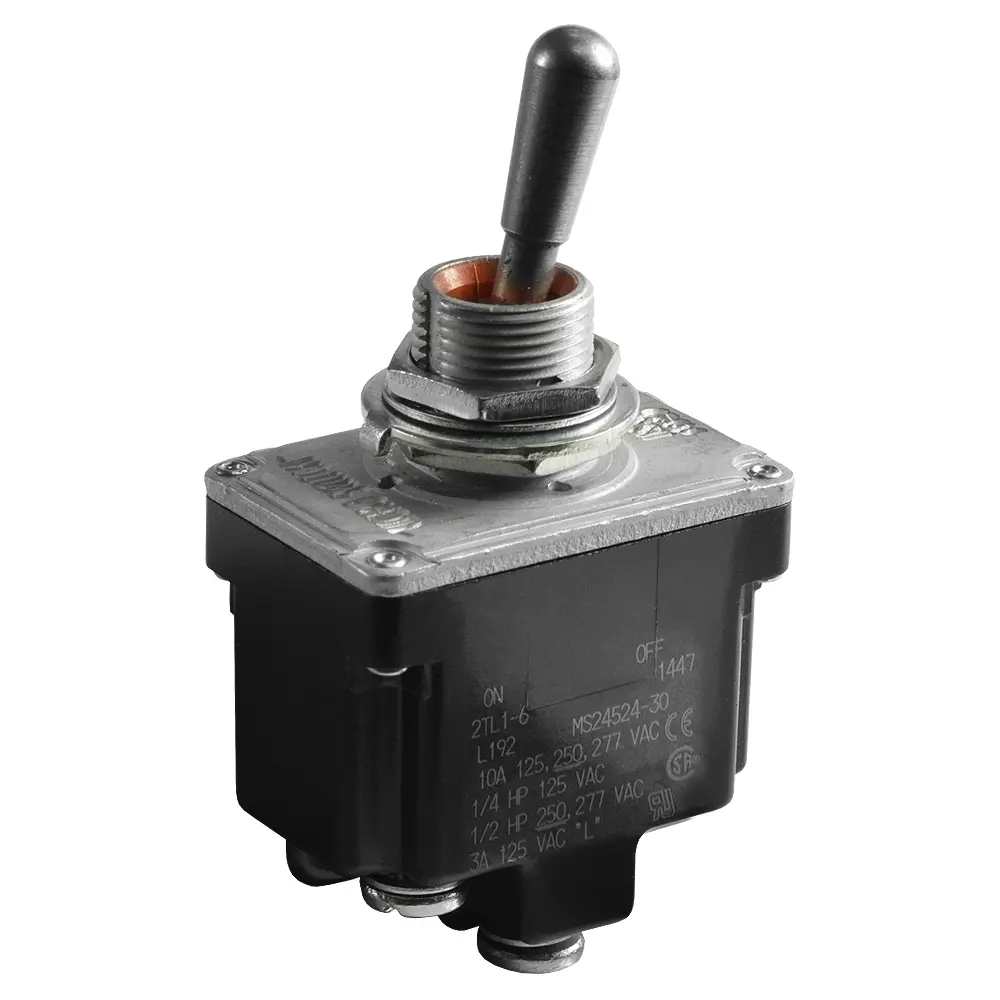

MS24524-30 Mil-Spec OFF-ON Sealed Switch DPST 2TL1-6

Name: MS24524-30 OFF- ON SW 2TL1-6
SKU: MS24524-30
Price: 54.22 USD
Availability: InStock

Item No. MS24524-30

$54.218 / EA

Price Breaks

PRICE BREAKS - The more you buy, the more you save

Quantity / EA	Price / EA	Ext. Price
1	$54.218	$54.22
10	$52.235	$522.35
25	$50.582	$1264.55
50	$48.598	$2429.90
100	$47.606	$4760.60
250	$46.945	$11736.25

Features & details

The Honeywell Micro Switch MS24524-30 TL series toggle switch is an ideal switch for demanding applications, compliant to MIL-DTL-3950, this high performance switch is a logical choice for use in environments where sealing and resistance to shock and vibration are required. The MS24524-30 is particularly suitable for applications in off-highway, aviation, commercial and industrial equipment. This compact, environmentally sealed switch is available in single and double pole configurations.

Switch Operation:

With the switch mounted with the keyway facing down, The switch acts as an OFF-ON switch that is Momentary ON. Bridge both poles together to get a full 30 amp capacity switch. Refer to the circuit diagram below for wiring specifics.

Common Uses:

Starter switches
Horns / sirens
Washer pumps
Weapons systems

Switch Specs

Double Pole -Double Throw (DPST)
4 screw
Screw mounting holes are #6
Mounting threads are 15/32
.05-28 Volts DC switch will transfer 20 amps
.05-277 Volts AC switch will transfer 15 amps
A 2 screw SPDT verison of this switch is available Here
Silver cadmium oxide contacts

Circuitry / Operating Action

MS24523-22 diagram

Datasheets

MS24524-30 / 2TL1-6 Datasheet
