MS24524-23 ON-ON SW

Item Number : MS24524-23
In stock
was $48.960 Special Price $23.400
Pricing Breaks
Quantity Ea. Price Ext. Price
1 $23.400 $23.400
11 $21.060 $231.660
25 $18.720 $468.000
50 $17.550 $877.500
100 $15.210 $1,521.000
250 $13.100 $3,275.000
EA

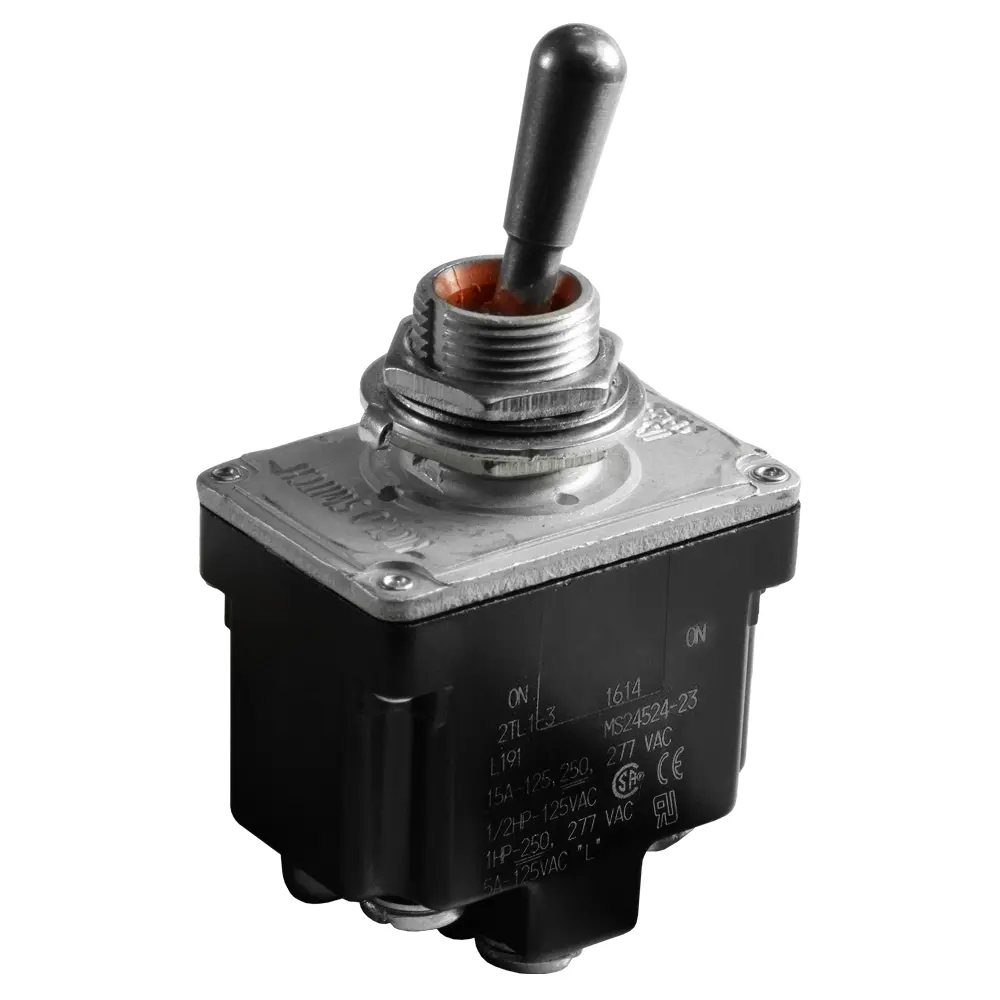

MS24524-23 Mil-Spec ON-ON Sealed Switch DPST 2TL1-3

The Honeywell Micro Switch MS24524-23 TL series toggle switch is an ideal switch for demanding applications, compliant to MIL-DTL-3950, this high performance switch is a logical choice for use in environments where sealing and resistance to shock and vibration are required. The MS24524-23 is particularly suitable for applications in off-highway, aviation, commercial and industrial equipment. This compact, environmentally sealed switch is available in single and double pole configurations.

Switch Operation:

With the switch mounted with the keyway facing in any direction, The switch acts as an ON-ON switch that is Latched ON in the opposite direction of the keyway. Bridge both poles together to get a full 30 amp capacity switch. Refer to the circuit diagram below for wiring specifics.

Common Uses:

  • Multiple Igniton boxes
  • A/B contols
  • Weapons systems

Switch Specs:

  • Double Pole -Single Throw (DPST)
  • 6 screw
  • Screw mounting holes are #6
  • Mounting threads are 15/32
  • .05-28 Volts DC switch will transfer 20 amps
  • .05-277 Volts AC switch will transfer 15 amps
  • A 3 screw SPST verison of this switch is available Here
  • Silver cadmuim oxided contacts

Circuitry / Operating Action:

MS24523-22 diagram
