DTM8-G-SB Deutsch DTM 8-Way Full Kit

Name: DTM 8 Way Kit Gold Solid SB
SKU: DTM8-G-SB
Price: 19.68 USD
Availability: InStock

Item No. DTM8-G-SB

$19.682 / EA

Price Breaks

PRICE BREAKS - The more you buy, the more you save

Quantity / EA	Price / EA	Ext. Price
1	$19.682	$19.68
10	$19.32	$193.20
25	$18.162	$454.05
50	$15.774	$788.70
100	$14.979	$1497.90
250	$13.821	$3455.25
500	$11.867	$5933.50
1,000	$10.275	$10275.00

What's in this kit

Some items in this kit may not be listed below, as they may not be available for purchase separately.

Part	In kit	Price
M39029/5-115 SIZE 20 SKT GOLD MIL SPEC 8,951 in stock	×8	$0.71
M39029/4-110 SIZE 20 PIN GOLD MIL SPEC Backorder	×8	$0.492
DTM04-08PA DTM04-08PA 690 in stock	×1	$3.208
WM-8P WM-8P 891 in stock	×1	$0.339
DTM06-08SA-E007 DTM06-08SA-E007 225 in stock	×1	$2.144
WM-8S WM-8S 2,864 in stock	×1	$0.20

Features & details

DTM8-G-SB is a ProWireUSA DTM connector kit built from genuine TE Connectivity/DEUTSCH parts. It includes everything to build one complete 8-way connector pair: the plug and receptacle housings, both wedgelocks, and the contacts for both sides, packed together so nothing is missing when you sit down to build the harness.

Need a different size, plating, color or boot option? Build your own kit with our Deutsch Kit Builder Tool

To purchase a master kit, also known as a shop kit, please visit our Master Kits Page

DTM8-G-SB Details

Series: Deutsch DTM
Kit Type: Full Kit
Positions: 8
Contacts: Solid barrel, size 20, gold plated, 22-18 AWG
Housing Color: Gray
Keyway: A
Mounting: Inline / Free Hang
Shrink Boot Adapter: Shrink Boot Plug Side

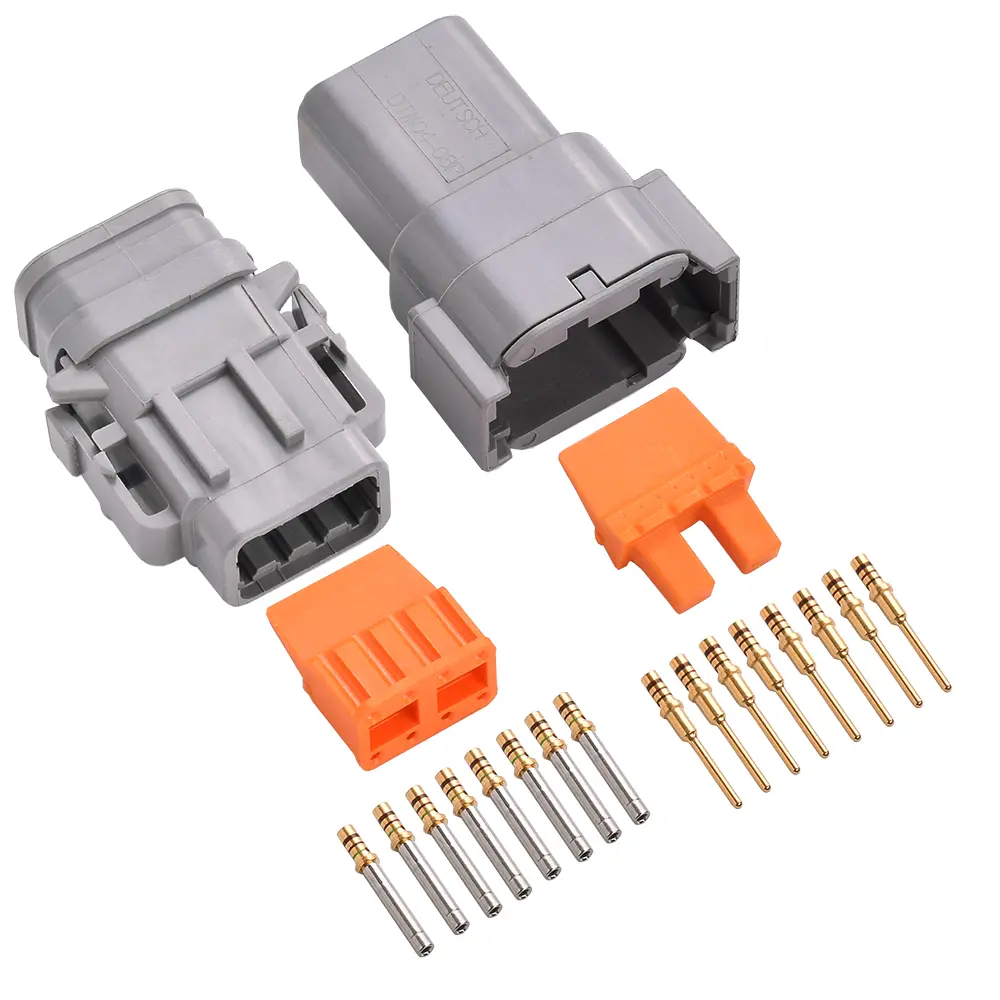

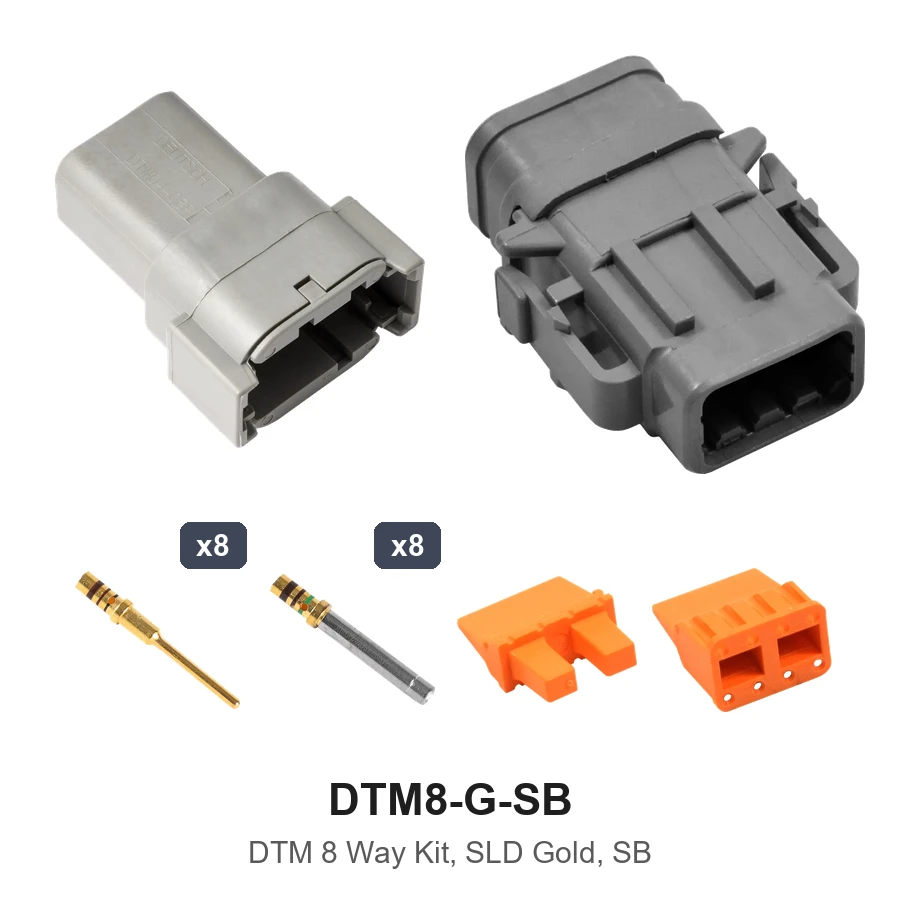

This Kit Includes

1 x DTM04-08PA - 8-way receptacle housing
1 x DTM06-08SA-E007 - 8-way plug housing (shrink boot adapter)
8 x M39029/4-110 - solid gold pin contacts (mil-spec)
8 x M39029/5-115 - solid gold socket contacts (mil-spec)
1 x WM-8P - receptacle wedgelock
1 x WM-8S - plug wedgelock

Recommended Tools (sold separately)

HDT-48-00 - DEUTSCH HDT-48-00 SOLID BARREL CRIMP TOOL
18890 - DEUTSCH DTM/MIL SIZE 20 CRIMP TOOL
DT-RT1 - DT DTM DTP WEDGELOCK REMOVAL TOOL

Optional Add-Ons

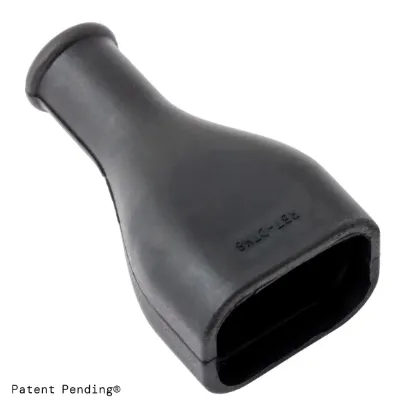

RBT-DTM8 - DTM,8 WAY, STRAIGHT, RUBBER BOOT
202K232-25-0 - DOUBLE REDUCTION LIPPED STRAIGHT BOOT
ADHESIVES-KIT - EPOXY /DISPENSER/ 10 PC MIXER KIT
RT125-DS-050 - RESINTECH RT125 EPOXY
62-9170-9930-1 - RESIN TECH EPOXY APPLICATOR
RT-NOZZLE - EPOXY MIXER
0413-204-2005 - SEALING PLUG, SIZE 20, RED

Technical Information

Each part in this kit has its own page with TE's datasheet and 3D CAD model under Documents.
DTM series connectors are compatible with Amphenol ATM series connectors and related accessories.

Product specification

Mounting Type	Inline / Free Hang
SERIES	DTM
Kit Type	Full Kit
Housing Color	Gray
No Of Positions	8
Wire Gauge Range	22-18 Ga.
Voltage Rating	250 VDC
OEM Crimp Tool	HDT-48-00
Minimum Operating Temp	-55C
Max Operating Temp	125C
Ingess Sealing	IP68
Econo Crimp Tool	18890
Current Rating	13 Amps
Conn.Gender	Male/Female
DTM Kit Type	Full Kit
TERMINAL PLATING	Gold
TERMINAL TYPE	Solid 22-18 GA
GENDER	Male & Female
DTM Shrink Boot Lip (Plug Side Only)	Shrink Boot Lip
DT Shrink Boot Lip (Plug Side Only)	SHRINK BOOT LIP
