AS608-35SN Deutsch AS Series 6-Way Plug Kit

Name: AS,6 WAY,PLG,SKT,N KEY,RED
SKU: AS608-35SN
Price: 64.00 USD
Availability: InStock

Deutsch

Item No. AS608-35SN

$64.00 / EA

Features & details

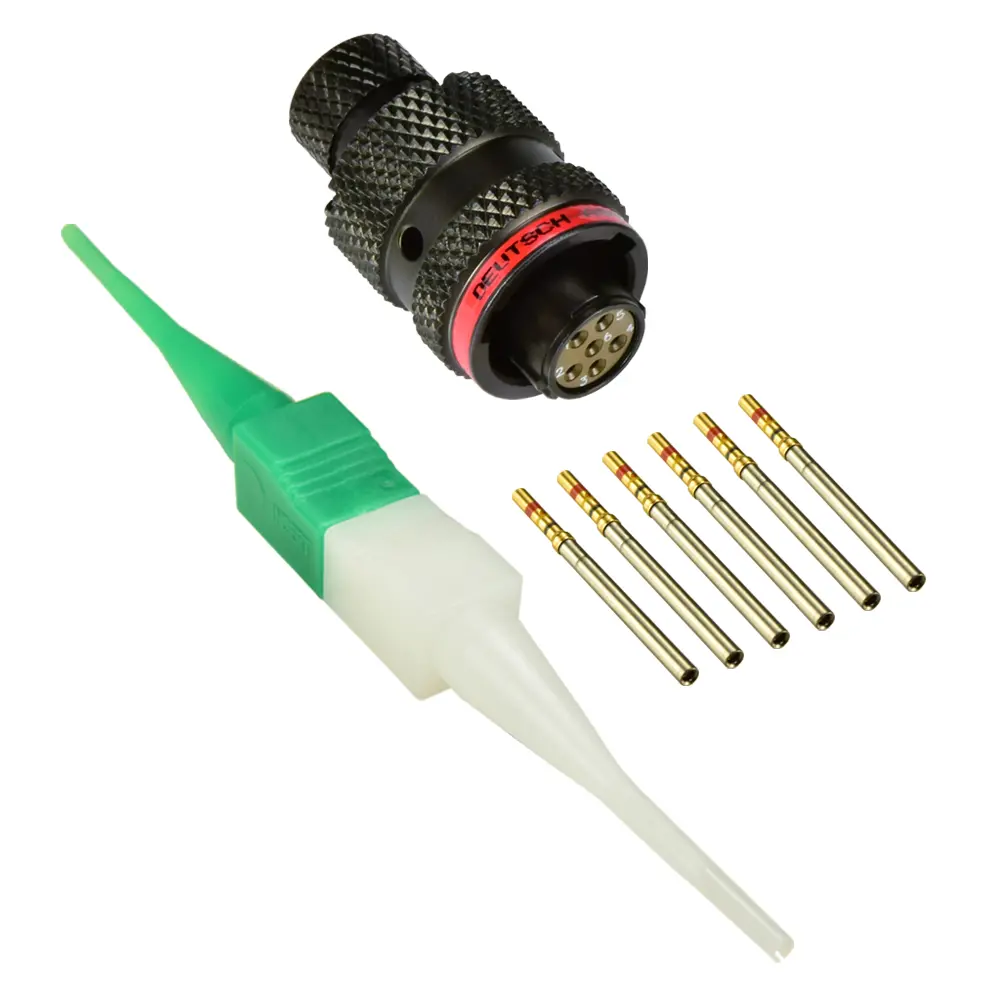

Deutsch Autosport AS608-35SN 6-way plug connector kit with socket (female) contacts in the N (red) key configuration.

The connector's red band identifies the N keyway (only the same color keyways will mate together)

Kit Includes

(1) 6-Way Plug Connector Body with Screen and Boot Termination Feature.
(6) Size 22 socket (female) contacts (26-22 AWG, 5 A each) 38943-22
(1) Insert/Removal Tool M81969/14-01

Required Crimp Tooling

Crimp FrameM22520/2-01
Positioner/TurretM22520/2-07

Shrink Boots

Straight202K121-25-0
90°222K121-25-0

Technical Information

The Specifications Tab lists technical data as well as other helpful information.
The Documents section lists CAD models, technical drawings, and catalog pages when available.

Notes

Please see the Mating Connector, Related Items, and Crimp Tools tabs to purchase the mating connector, heat shrink boots, and accessories.

Product specification

Keyway	N (Red)
Series / Range	AS
Shell Size	8
Wire Range (AWG)	26-22
Contact Gender	Socket (Female)
Shell Style	Plug
Shell Plating	Zinc (Black)
Replacement Contacts	38943-22
Insert Arrangement	49522
No. Of Positions	6
Contact Size	22
90º Shrink Boot	222K121-25-0
Connector O.D.	.697" (17.7 mm)
DMC Crimp Frame	M22520/2-01
Current Rating Per Contact	5 A
Filler Plug	600300-22
Insert / Removal Tool	M81969/14-01
MFG.	TE Connectivity

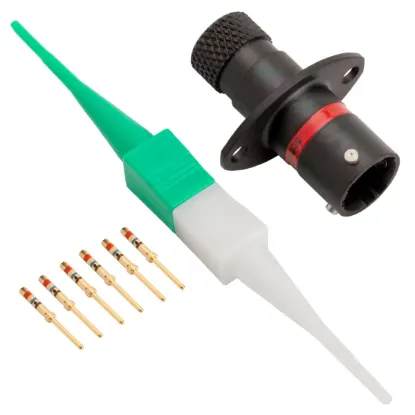

Mating Flange Connector	AS008-35PN

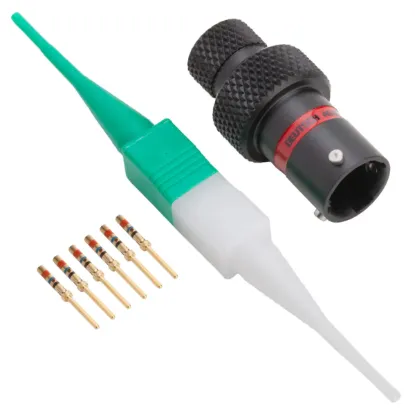

Mating Inline Connector	AS108-35PN
Mating PCB Connector	AS208-35PN
Protective Cap	AS808
DMC Positioner / Turret	M22520/2-07
Shell Material	Aluminum
Souriau Part Nbr	8STA60835SN
Souriau Part Nbr_1	8STA6-08-35SN
Straight Shrink Boot	202K121-25-0
Alumel Contact	605348
Chromel Contact	605346
Termination Style	Crimp

Price $64.00 / EA

Shipping details

Availability: 9 Each In Stock, ready to be shipped

Quantity:

Documents

CAD File for AS608-35SN

Drawing AS608-35SN

Deutsch AS Series Catalog Pages
