RAYCHEM 202K185-25-0 LIPPED SHRINK BOOT

Raychem
Item No. 202K185-25-0
$78.81 / EA
Features & details

Raychem 202K185-25-0 is the largest boot in the 202K lineup at just under 7" long; this boot has no actual use on Mil-Spec or Deutsch AS connectors; this boot's primary use in motorsport looms is for large straight transitions.
Raychem heat shrink boots used in conjunction with Raychem DR-25 sleeving and M22759/32 Tefzel Wire provides a proper motorsport/military-grade wiring loom. Need to seal your shrink boots to your tubing? by far, the best choice is ResinTech RT125 Adhesive.

202K Heat Shrink Boots Datasheet (PDF, 238 KB)
Deutsch DT, DTM, Shrink Boot Pictorial (PDF, 564 KB)

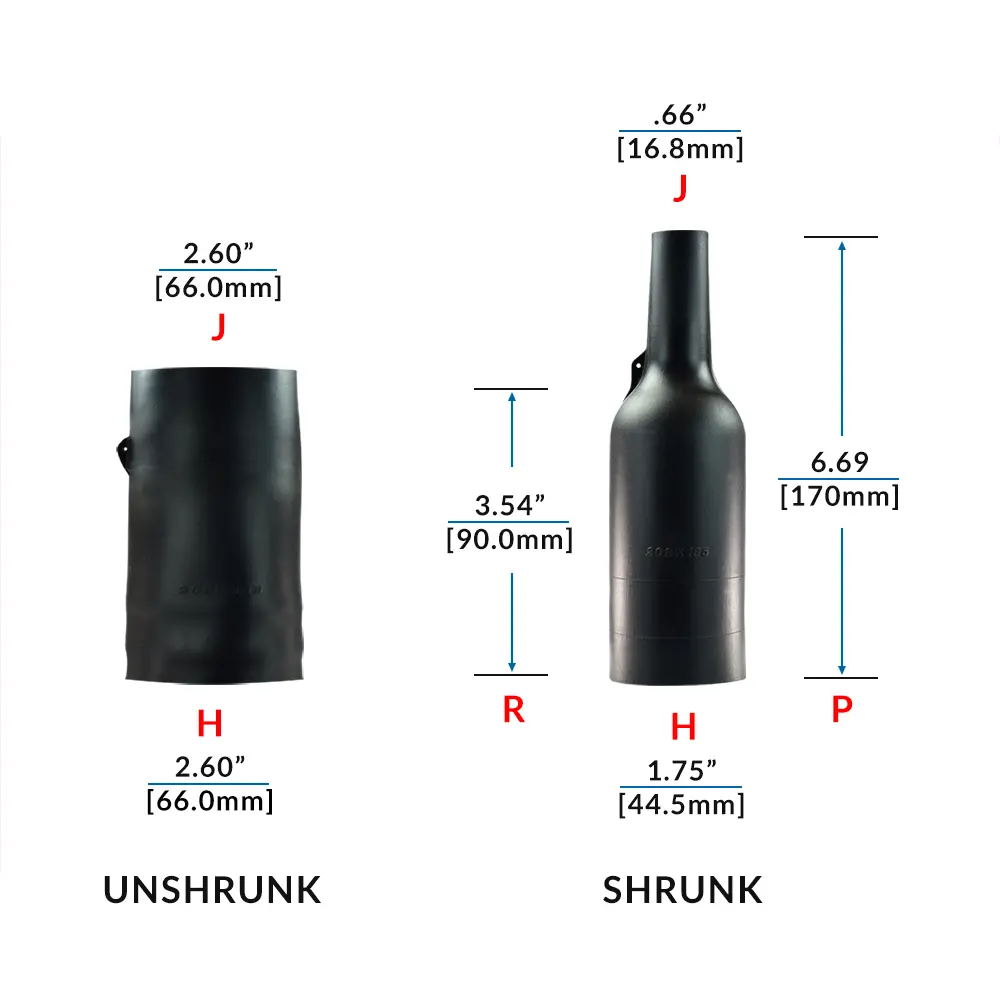

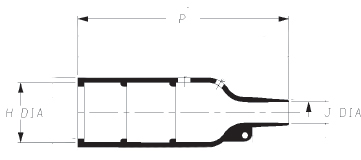

Raychem 202K185-25-0 Boot Dimensions
Part
Number
(H) Big End( J) Small End P
UN
SHRUNK
SHRUNKUN
SHRUNK
SHRUNKTotal
 Length
202K185-25-066mm
[2.60"]
44.5mm
[1.75"]
66mm
[2.60"]
16.8mm
[.66"]
170mm
[6.69"]
 Motorsport/Military-Grade Heat Shrink Tubing
DR-25 Yellow PrintDR-25 White PrintV25 No Print
