DT8-N-SB Deutsch DT 8-Way Full Kit

Name: DT 8 Pin Conn Kit Nickle Solid SB
SKU: DT8-N-SB
Price: 12.27 USD
Availability: InStock

Item No. DT8-N-SB

DT 8 Pin Conn Kit Nickel Solid SB

$12.267 / EA

Price Breaks

PRICE BREAKS - The more you buy, the more you save

Quantity / EA	Price / EA	Ext. Price
1	$12.267	$12.27
10	$12.042	$120.42
25	$11.32	$283.00
50	$9.832	$491.60
100	$9.336	$933.60
250	$8.614	$2153.50
500	$7.396	$3698.00
1,000	$6.404	$6404.00

What's in this kit

Some items in this kit may not be listed below, as they may not be available for purchase separately.

Part	In kit	Price
0462-201-16141 SOC, SOLID, SIZE 16, 16-20 AWG, NI 22,105 in stock	×8	$0.479
0460-202-16141 PIN, SOLID, SIZE 16, 16-20AWG, NI 40,626 in stock	×8	$0.313
DT04-08PA DT 8 WAY RECEPTACLE 367 in stock	×1	$2.448
DT06-08SA-E008 DT06-08SA-E008 149 in stock	×1	$2.113
W8P W8P 2,442 in stock	×1	$0.147
W8S W8S 527 in stock	×1	$0.139

Features & details

DT8-N-SB is a ProWireUSA DT connector kit built from genuine TE Connectivity/DEUTSCH parts. It includes everything to build one complete 8-way connector pair: the plug and receptacle housings, both wedgelocks, and the contacts for both sides, packed together so nothing is missing when you sit down to build the harness.

Need a different size, plating, color or boot option? Build your own kit with our Deutsch Kit Builder Tool

To purchase a master kit, also known as a shop kit, please visit our Master Kits Page

DT8-N-SB Details

Series: Deutsch DT
Kit Type: Full Kit
Positions: 8
Contacts: Solid barrel, size 16, nickel plated, 20-16 AWG
Housing Color: Gray
Keyway: A
Mounting: Inline / Free Hang
Shrink Boot Adapter: Shrink Boot Plug Side

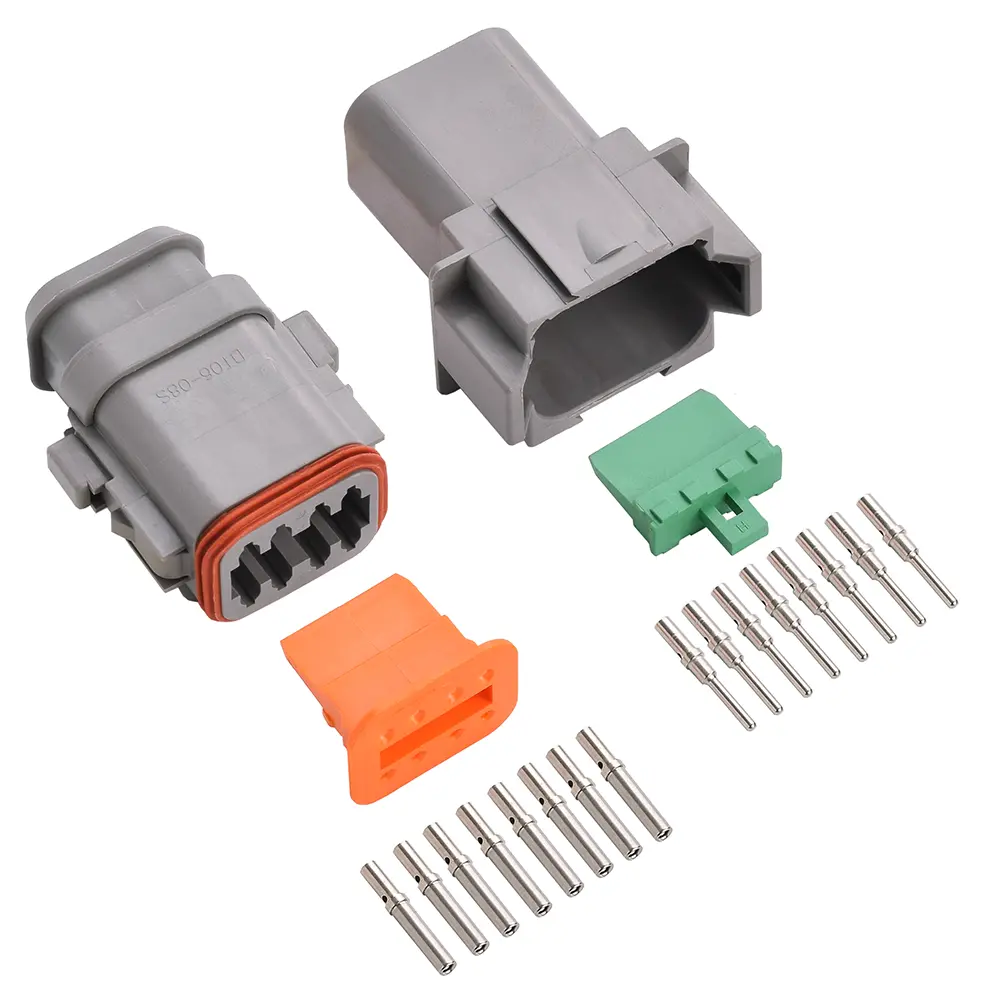

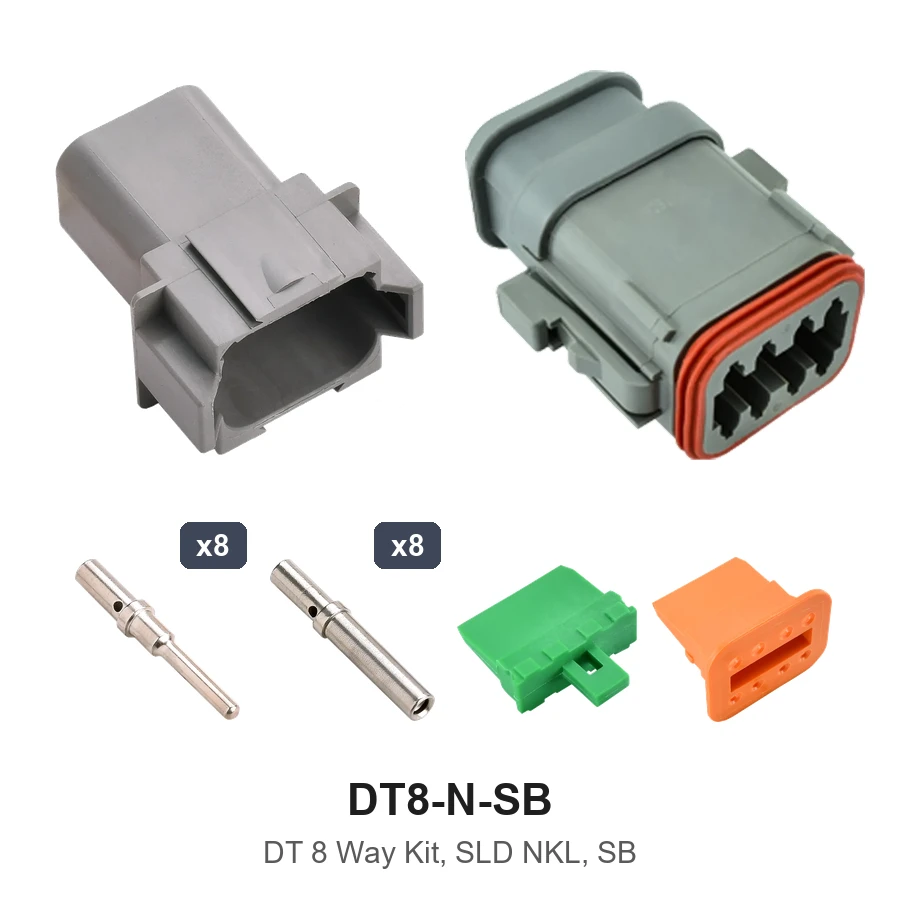

This Kit Includes

8 x 0460-202-16141 - solid nickel pin contacts
8 x 0462-201-16141 - solid nickel socket contacts
1 x DT04-08PA - 8-way receptacle housing
1 x DT06-08SA-E008 - 8-way plug housing (shrink boot adapter)
1 x W8P - receptacle wedgelock
1 x W8S - plug wedgelock

Recommended Tools (sold separately)

HDT-48-00 - DEUTSCH HDT-48-00 SOLID BARREL CRIMP TOOL
18880 - DEUTSCH DT/MIL SIZE 16 CRIMP TOOL
DT-RT1 - DT DTM DTP WEDGELOCK REMOVAL TOOL

Optional Add-Ons

RBT-DT8 - DT,8 WAY, STRAIGHT, RUBBER BOOT
202K232-25-0 - DOUBLE REDUCTION LIPPED STRAIGHT BOOT
ADHESIVES-KIT - EPOXY /DISPENSER/ 10 PC MIXER KIT
RT125-DS-050 - RESINTECH RT125 EPOXY
62-9170-9930-1 - RESIN TECH EPOXY APPLICATOR
RT-NOZZLE - EPOXY MIXER
114017 - DT/DTP SIZE 16/12 CAVITY SEALING PLUG

Technical Information

Each part in this kit has its own page with TE's datasheet and 3D CAD model under Documents.
DT series connectors are compatible with Amphenol AT series connectors and related accessories.

Product specification

Mounting Type	Inline / Free Hang
SERIES	DT
Kit Type	Full Kit
Housing Color	Gray
No Of Positions	8
Wire Gauge Range	20-16 Ga.
Voltage Rating	250 VDC
OEM Crimp Tool	HDT-48-00
Minimum Operating Temp	-55C
Max Operating Temp	125C
Ingess Sealing	IP68
Econo Crimp Tool	18880
Current Rating	13 Amps
Conn.Gender	Male/Female
DT Kit Type	Full Kit
TERMINAL PLATING	Nickle
TERMINAL TYPE	Solid 20-16 GA
GENDER	Male & Female
DT Shrink Boot Lip (Plug Side Only)	Shrink Boot
