DTHD-1-4-N Deutsch DTHD Size 4 Full Kit

Name: DTHD Size 4 Complete Kit
SKU: DTHD-1-4-N
Price: 29.24 USD
Availability: InStock

Item No. DTHD-1-4-N

$29.24 / EA

Price Breaks

PRICE BREAKS - The more you buy, the more you save

Quantity / EA	Price / EA	Ext. Price
1	$29.24	$29.24
10	$28.703	$287.03
25	$26.983	$674.58
50	$23.435	$1171.75
100	$22.253	$2225.30
250	$20.533	$5133.25
500	$17.63	$8815.00
1,000	$15.265	$15265.00

What's in this kit

Some items in this kit may not be listed below, as they may not be available for purchase separately.

Part	In kit	Price
0462-203-04141 SOC, SOLID, SIZE 4, 6 AWG, NI 23 in stock	×1	$6.366
0460-204-0490 PIN, SOLID, SIZE 4, 6AWG, NI 22 in stock	×1	$5.10
DTHD06-1-4S DTHD PLUG SIZE 4 CONTACT 123 in stock	×1	$4.54
DTHD04-1-4P DTHD RECEPTACLE SIZE 4 CONTACT 149 in stock	×1	$6.084

Features & details

DTHD-1-4-N is a ProWireUSA DTHD connector kit built from genuine TE Connectivity/DEUTSCH parts. It includes everything to build one complete connector pair: the plug and receptacle housings, both wedgelocks, and the contacts for both sides, packed together so nothing is missing when you sit down to build the harness.

Need a different size, plating, color or boot option? Build your own kit with our Deutsch Kit Builder Tool

To purchase a master kit, also known as a shop kit, please visit our Master Kits Page

DTHD-1-4-N Details

Series: Deutsch DTHD
Kit Type: Full Kit
Contacts: Solid barrel, size 4, nickel plated, 6 AWG
Housing Color: Black
Mounting: Inline / Free Hang

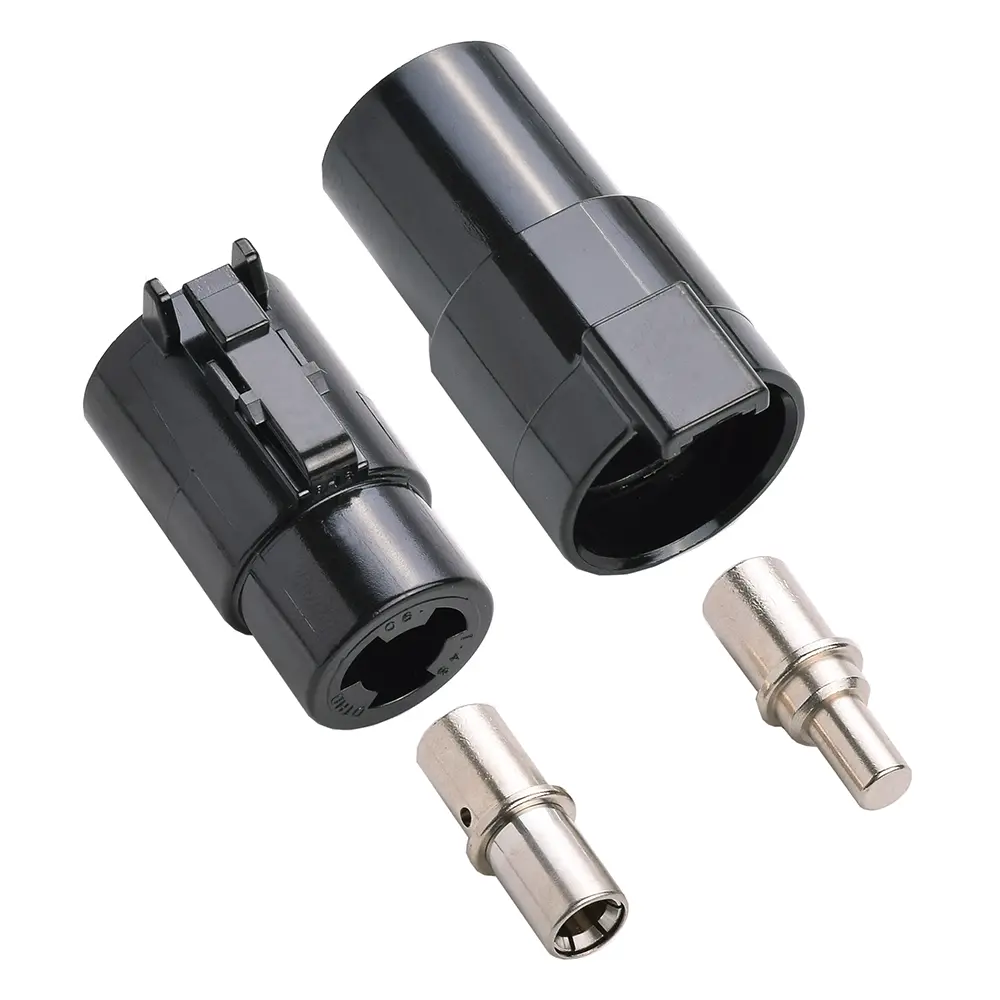

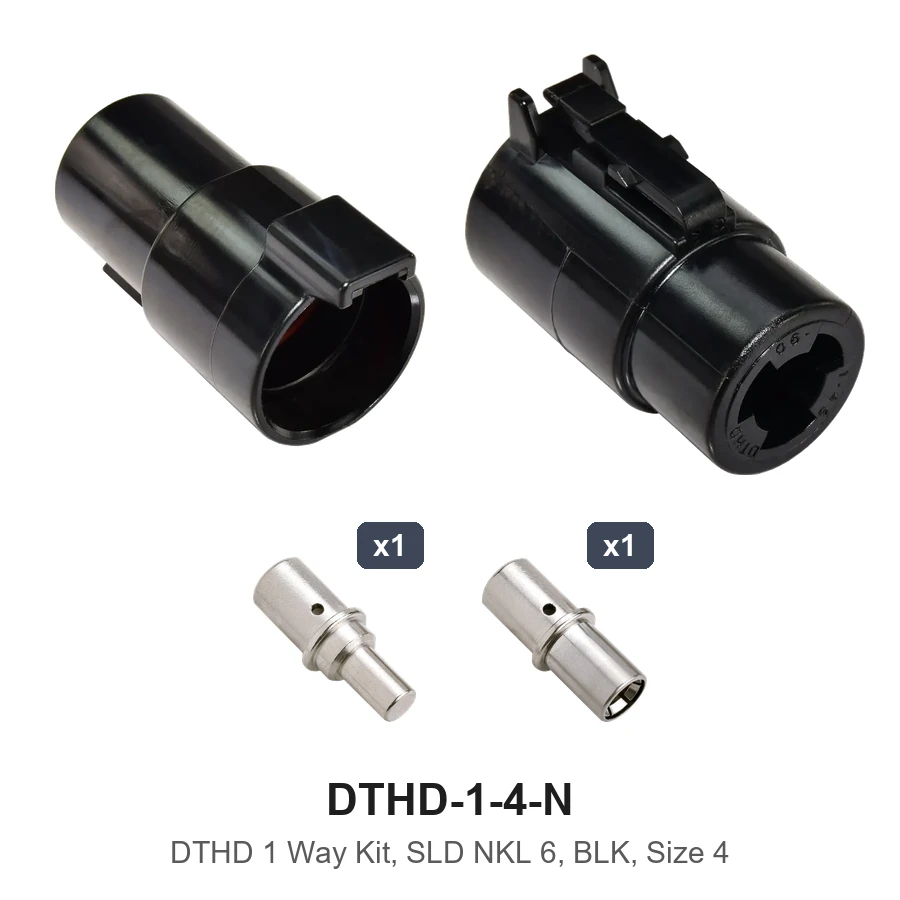

This Kit Includes

1 x 0460-204-0490 - solid nickel pin contact
1 x 0462-203-04141 - solid nickel socket contact
1 x DTHD04-1-4P - size 4 receptacle housing
1 x DTHD06-1-4S - size 4 plug housing

Recommended Tools (sold separately)

18870 - DEUTSCH HDT CRIMPER SIZE 8,4 CRIMP TOOL

Technical Information

Each part in this kit has its own page with TE's datasheet and 3D CAD model under Documents.
DTHD series connectors are compatible with Amphenol ATHD series connectors and related accessories.

Product specification

Mounting Type	Inline / Free Hang
SERIES	DTHD
Kit Type	Full Kit
Housing Color	Black
No Of Positions	1
Wire Gauge Range	6 Ga.
Voltage Rating	250 VDC
OEM Crimp Tool	HDT-04-08
Minimum Operating Temp	-55C
Max Operating Temp	125C
Ingess Sealing	IP68
Econo Crimp Tool	18870
Current Rating	100 Amps
Conn.Gender	Male/Female
DTHD Kit Type	Full Kit
TERMINAL PLATING	Nickle
TERMINAL TYPE	Solid 6 GA
GENDER	Male & Female
DT Shrink Boot Lip (Plug Side Only)	None
