DTHD-1-12-N-RCP Deutsch DTHD Size 12 Receptacle Kit

Name: DTHD Size 12 Receptacle Kit
SKU: DTHD-1-12-N-RCP
Price: 3.90 USD
Availability: InStock

Item No. DTHD-1-12-N-RCP

$3.898 / EA

Price Breaks

PRICE BREAKS - The more you buy, the more you save

Quantity / EA	Price / EA	Ext. Price
1	$3.898	$3.90
10	$3.826	$38.26
25	$3.597	$89.93
50	$3.124	$156.20
100	$2.966	$296.60
250	$2.737	$684.25
500	$2.35	$1175.00
1,000	$2.035	$2035.00

What's in this kit

Some items in this kit may not be listed below, as they may not be available for purchase separately.

Picture	Part	In kit	Price	Buy extra
	0460-204-12141 PIN, SOLID, SIZE 12, 12-14AWG, NI 9,898 in stock	×1	$0.412
	DTHD04-1-12P DTHD RECP ASM 81 in stock	×1	$2.338

Features & details

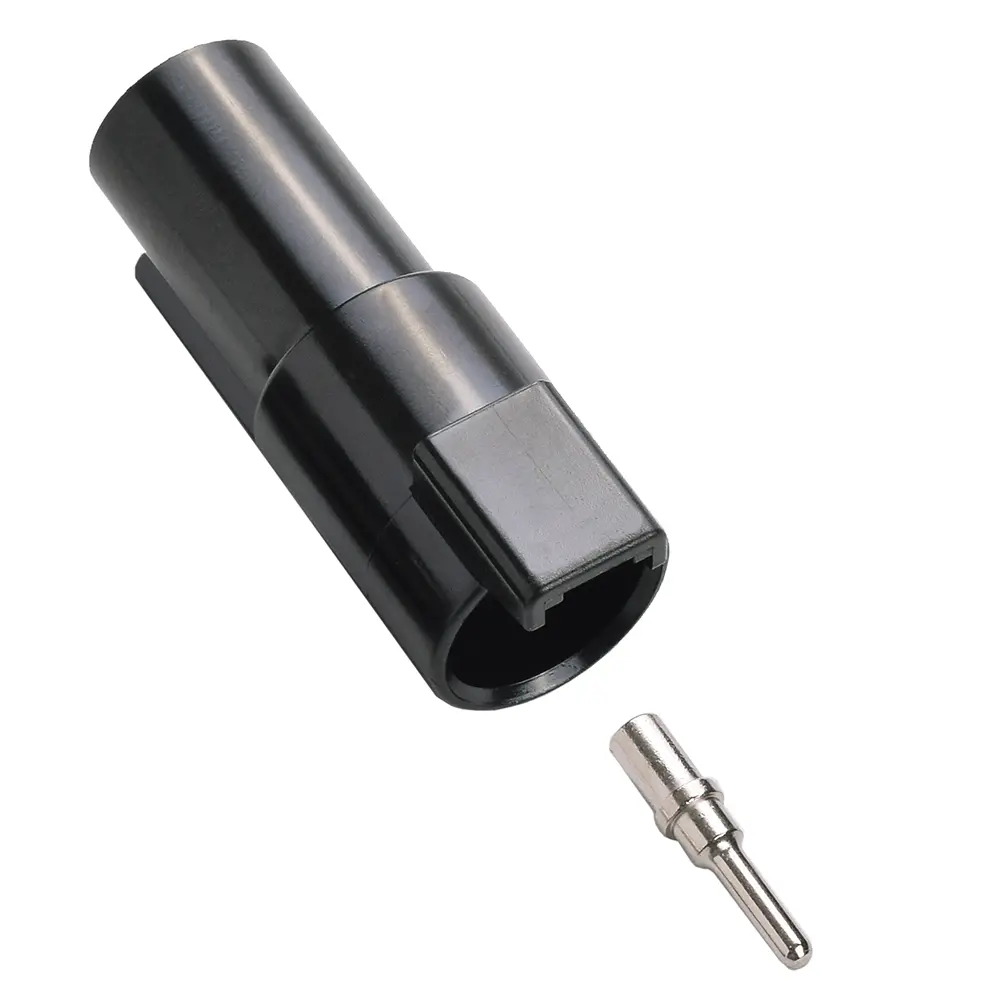

DTHD-1-12-N-RCP is a ProWireUSA DTHD connector kit built from genuine TE Connectivity/DEUTSCH parts. It includes everything to build one receptacle: the receptacle housing and its pin contacts, packed together so nothing is missing when you sit down to build the harness.

Need a different size, plating, color or boot option? Build your own kit with our Deutsch Kit Builder Tool

To purchase a master kit, also known as a shop kit, please visit our Master Kits Page

DTHD-1-12-N-RCP Details

Series: Deutsch DTHD
Kit Type: Receptacle Kit
Contacts: Solid barrel, size 12, nickel plated, 14-12 AWG
Housing Color: Black
Mounting: Inline / Free Hang

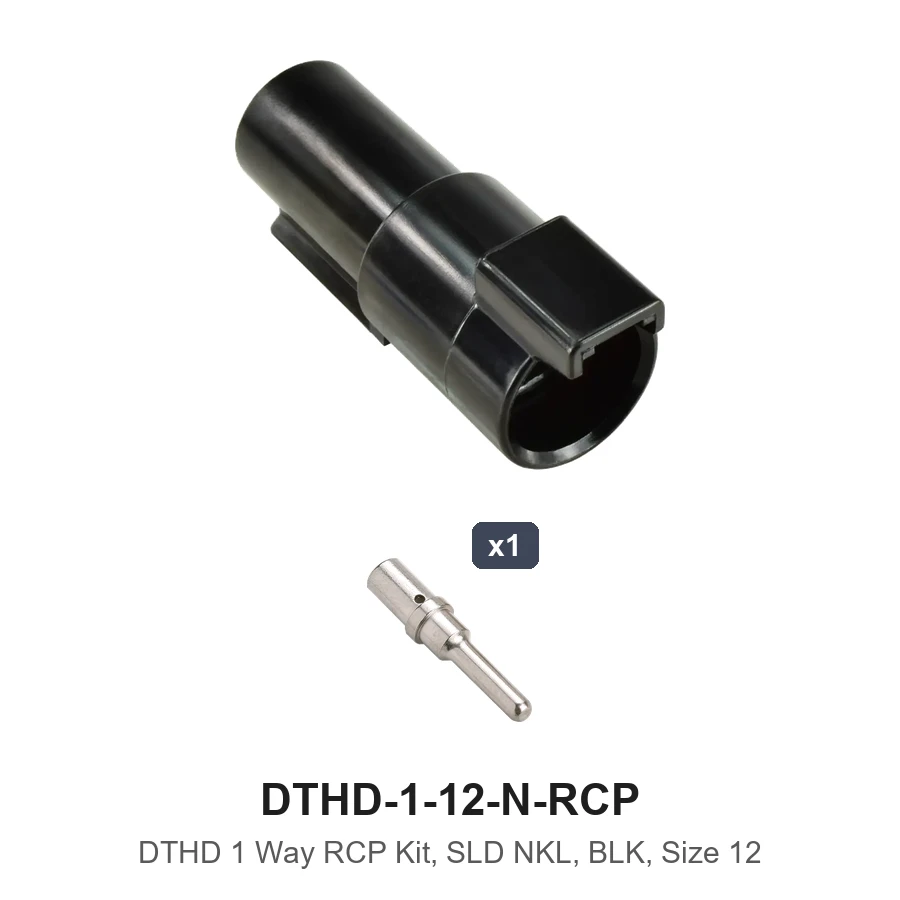

This Kit Includes

1 x 0460-204-12141 - solid nickel pin contact
1 x DTHD04-1-12P - size 12 receptacle housing

Recommended Tools (sold separately)

HDT-48-00 - DEUTSCH HDT-48-00 SOLID BARREL CRIMP TOOL
18860 - DEUTSCH DTP/MIL SIZE 12 CRIMP TOOL

Technical Information

Each part in this kit has its own page with TE's datasheet and 3D CAD model under Documents.
DTHD series connectors are compatible with Amphenol ATHD series connectors and related accessories.

Product specification

Mounting Type	Inline / Free Hang
SERIES	DTHD
Kit Type	Receptacle Kit
Housing Color	Black
No Of Positions	1
Wire Gauge Range	14-12 Ga..
Voltage Rating	250 VDC
OEM Crimp Tool	HDT-48-00
Minimum Operating Temp	-55C
Max Operating Temp	125C
Ingess Sealing	IP68
Econo Crimp Tool	18870
Current Rating	25 Amps
Conn.Gender	Receptacle-Female
DTHD Kit Type	Receptacle Kit
TERMINAL PLATING	Nickle
TERMINAL TYPE	Solid 14-12 GA
GENDER	Pin-Male
DT Shrink Boot Lip (Plug Side Only)	None

Price $3.898 / EA

Shipping details

Availability: 81 Each In Stock, ready to be shipped

Quantity:

AS9120B & ISO 9001 certified
Genuine components
We only sell genuine components and have a strict counterfeit policy.
How we prevent counterfeits
- Vetted suppliers only. We buy from thoroughly vetted suppliers, and every receipt is inspected and stored securely.
- Manufacturer markings kept. Where the manufacturer brands or marks its parts, those markings stay on them. Not every manufacturer marks its parts.
- Suspect parts are quarantined. If we encounter a suspect part, it's quarantined and investigated, and reported to the relevant authorities.
Our processes are audited under AS9120B. Buying from the gray market carries a real counterfeit risk, even when lead times are long. If you suspect a counterfeit, quarantine it and contact us. Read more
