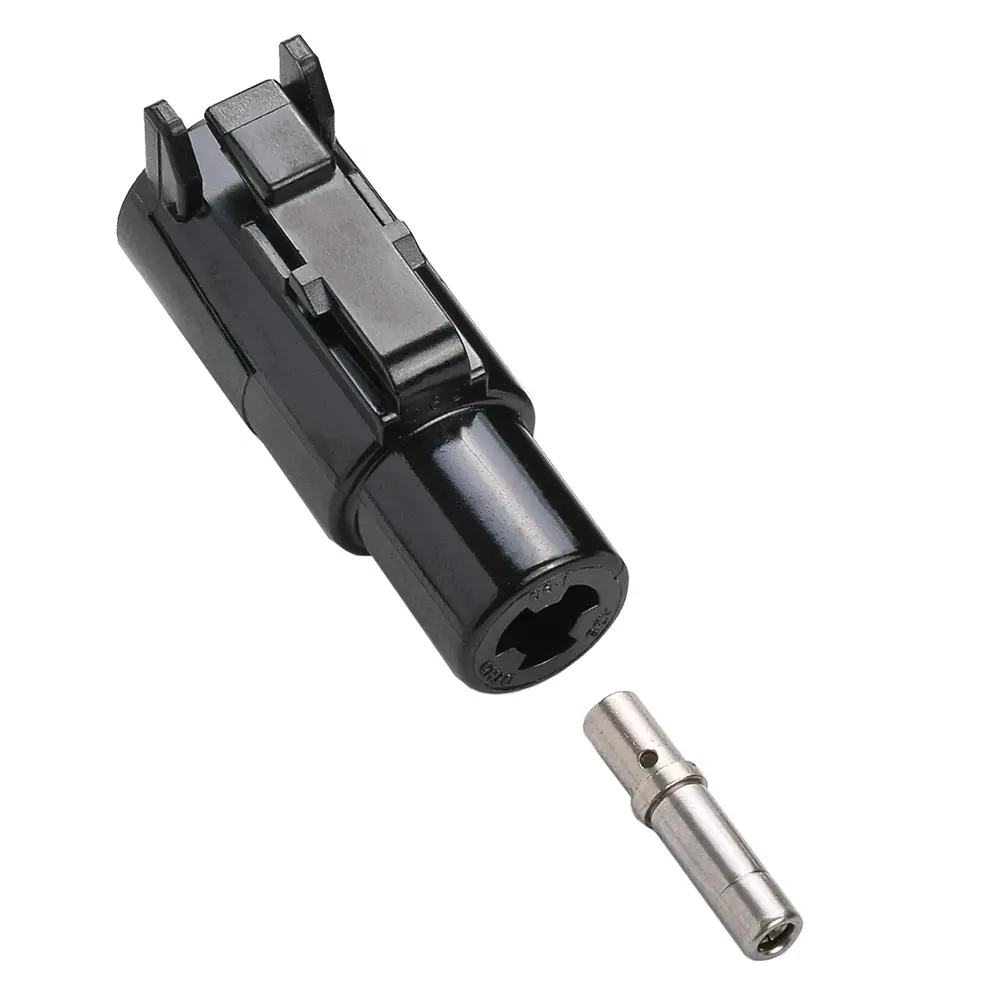

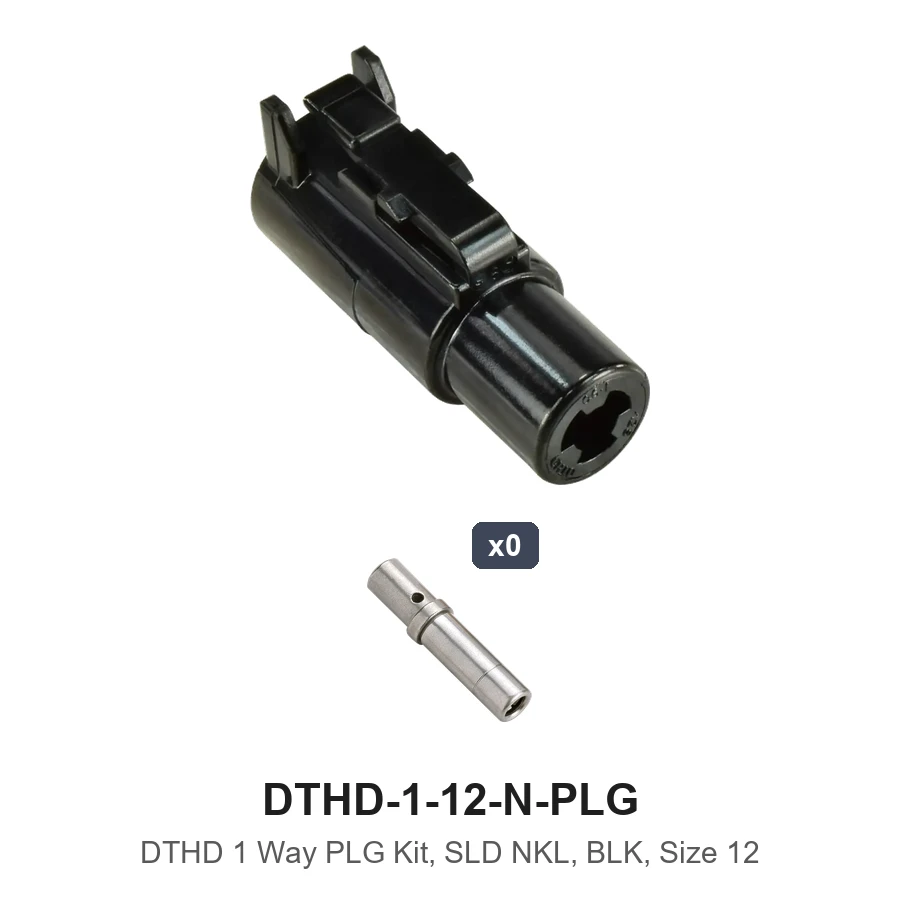

DTHD-1-12-N-PLG Deutsch DTHD Size 12 Plug Kit

Name: DTHD Size 12 Plug Kit
SKU: DTHD-1-12-N-PLG
Price: 5.06 USD
Availability: InStock

Item No. DTHD-1-12-N-PLG

$5.059 / EA

Price Breaks

PRICE BREAKS - The more you buy, the more you save

Quantity / EA	Price / EA	Ext. Price
1	$5.059	$5.06
10	$4.966	$49.66
25	$4.669	$116.73
50	$4.055	$202.75
100	$3.85	$385.00
250	$3.553	$888.25
500	$3.05	$1525.00
1,000	$2.641	$2641.00

What's in this kit

Some items in this kit may not be listed below, as they may not be available for purchase separately.

Picture	Part	In kit	Price	Buy extra
	0462-203-12141 SOC, SOLID, SIZE 12, 12-14 AWG, NI 568 in stock	×1	$0.835
	DTHD06-1-12S DTHD PLUG ASM 144 in stock	×1	$3.029

Features & details

DTHD-1-12-N-PLG is a ProWireUSA DTHD connector kit built from genuine TE Connectivity/DEUTSCH parts. It includes everything to build one plug: the plug housing and its socket contacts, packed together so nothing is missing when you sit down to build the harness.

Need a different size, plating, color or boot option? Build your own kit with our Deutsch Kit Builder Tool

To purchase a master kit, also known as a shop kit, please visit our Master Kits Page

DTHD-1-12-N-PLG Details

Series: Deutsch DTHD
Kit Type: Plug Kit
Contacts: Solid barrel, size 12, nickel plated, 14-12 AWG
Housing Color: Black
Mounting: Inline / Free Hang

This Kit Includes

1 x 0462-203-12141 - solid nickel socket contact
1 x DTHD06-1-12S - size 12 plug housing

Recommended Tools (sold separately)

HDT-48-00 - DEUTSCH HDT-48-00 SOLID BARREL CRIMP TOOL
18860 - DEUTSCH DTP/MIL SIZE 12 CRIMP TOOL

Technical Information

Each part in this kit has its own page with TE's datasheet and 3D CAD model under Documents.
DTHD series connectors are compatible with Amphenol ATHD series connectors and related accessories.

Product specification

Mounting Type	Inline / Free Hang
SERIES	DTHD
Kit Type	Plug Kit
Housing Color	Black
No Of Positions	1
Wire Gauge Range	14-12 Ga.
Voltage Rating	250 VDC
OEM Crimp Tool	HDT-48-00
Minimum Operating Temp	-55C
Max Operating Temp	125C
Ingess Sealing	IP68
Econo Crimp Tool	18870
Current Rating	25 Amps
Conn.Gender	Plug-Male
DTHD Kit Type	Plug Kit
TERMINAL PLATING	Nickle
TERMINAL TYPE	Solid 14-12 GA
GENDER	Socket-Female
DT Shrink Boot Lip (Plug Side Only)	None
