DTM3-G-BK-RCP Deutsch DTM 3-Way Receptacle Kit

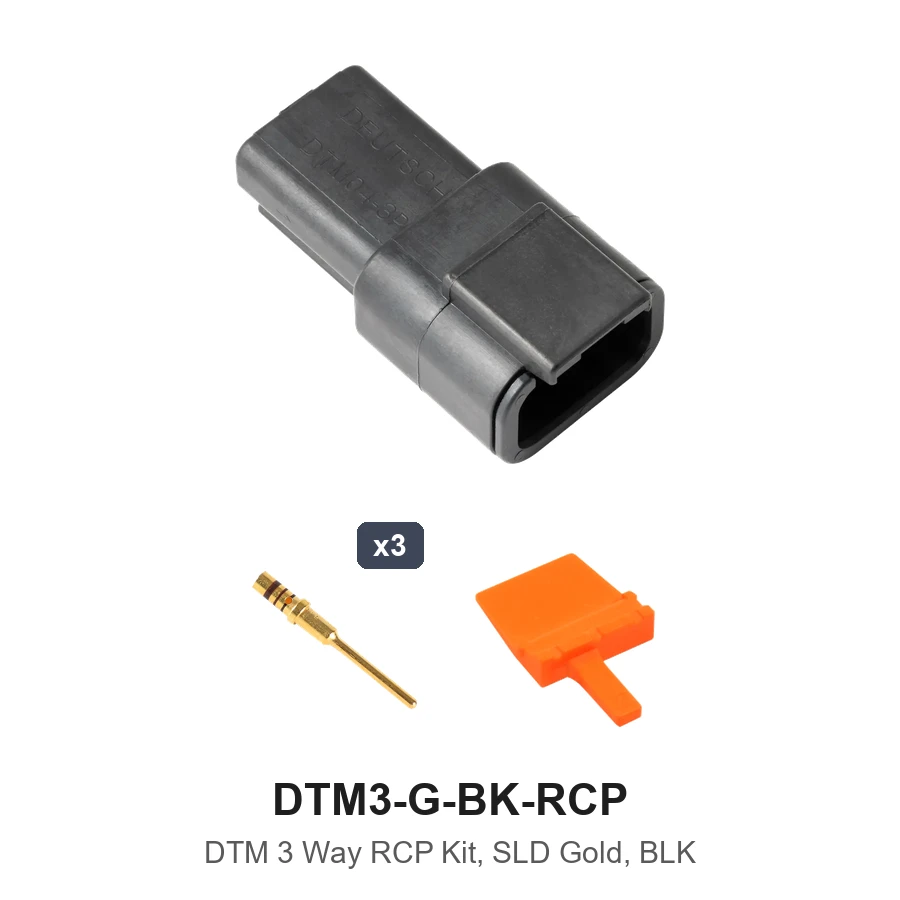

Name: DTM 3 Way Receptacle Kit Gold Solid Black
SKU: DTM3-G-BK-RCP
Price: 4.51 USD
Availability: InStock

Item No. DTM3-G-BK-RCP

$4.514 / EA

Price Breaks

PRICE BREAKS - The more you buy, the more you save

Quantity / EA	Price / EA	Ext. Price
1	$4.514	$4.51
10	$4.433	$44.33
25	$4.159	$103.98
50	$3.611	$180.55
100	$3.434	$343.40
250	$3.16	$790.00
500	$2.708	$1354.00
1,000	$2.354	$2354.00

What's in this kit

Some items in this kit may not be listed below, as they may not be available for purchase separately.

Part	In kit	Price
M39029/4-110 SIZE 20 PIN GOLD MIL SPEC Backorder	×3	$0.492
WM-3P WM-3P 1,731 in stock	×1	$0.128
DTM04-3P-E004 DTM04-3P-E004 BLACK RECEPTACLE	×1	$2.025

Features & details

DTM3-G-BK-RCP is a ProWireUSA DTM connector kit built from genuine TE Connectivity/DEUTSCH parts. It includes everything to build one 3-way receptacle: the receptacle housing, its wedgelock, and the pin contacts, packed together so nothing is missing when you sit down to build the harness.

Need a different size, plating, color or boot option? Build your own kit with our Deutsch Kit Builder Tool

To purchase a master kit, also known as a shop kit, please visit our Master Kits Page

DTM3-G-BK-RCP Details

Series: Deutsch DTM
Kit Type: Receptacle Kit
Positions: 3
Contacts: Solid barrel, size 20, gold plated, 22-18 AWG
Housing Color: Black
Keyway: A
Mounting: Inline / Free Hang

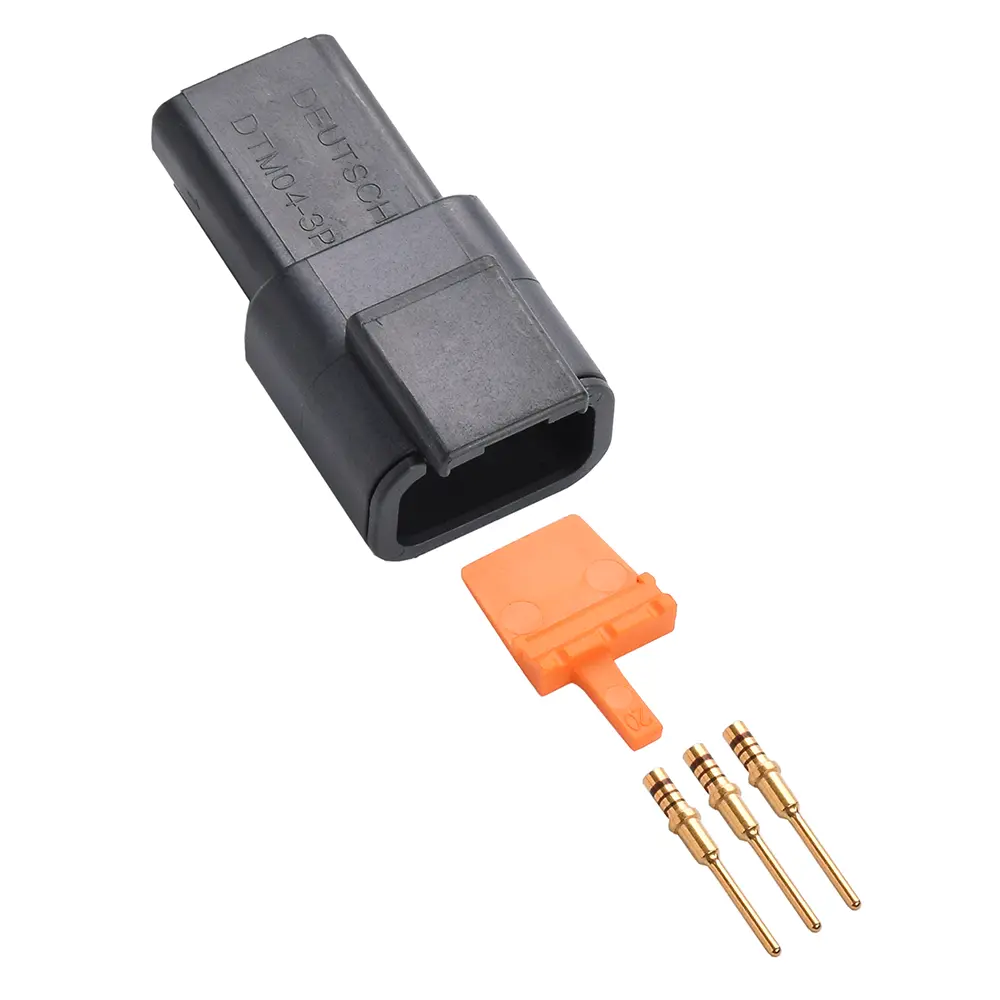

This Kit Includes

1 x DTM04-3P-E004 - 3-way receptacle housing (black)
3 x M39029/4-110 - solid gold pin contacts (mil-spec)
1 x WM-3P - receptacle wedgelock

Recommended Tools (sold separately)

HDT-48-00 - DEUTSCH HDT-48-00 SOLID BARREL CRIMP TOOL
18890 - DEUTSCH DTM/MIL SIZE 20 CRIMP TOOL
DT-RT1 - DT DTM DTP WEDGELOCK REMOVAL TOOL

Optional Add-Ons

202K111-25-0 - 202K111-25-0 RAYCHEM SHRINK BOOT
ADHESIVES-KIT - EPOXY /DISPENSER/ 10 PC MIXER KIT
RT125-DS-050 - RESINTECH RT125 EPOXY
62-9170-9930-1 - RESIN TECH EPOXY APPLICATOR
RT-NOZZLE - EPOXY MIXER
0413-204-2005 - SEALING PLUG, SIZE 20, RED

Technical Information

Each part in this kit has its own page with TE's datasheet and 3D CAD model under Documents.
DTM series connectors are compatible with Amphenol ATM series connectors and related accessories.

Product specification

Mounting Type	Inline / Free Hang
SERIES	DTM
Kit Type	Receptacle Kit
Housing Color	Black
No Of Positions	3
Wire Gauge Range	22-18 Ga.
Voltage Rating	250 VDC
OEM Crimp Tool	HDT-48-00
Minimum Operating Temp	-55C
Max Operating Temp	125C
Ingess Sealing	IP68
Econo Crimp Tool	18890
Current Rating	13 Amps
Conn.Gender	Receptacle-Female
DTM Kit Type	Receptacle Kit
TERMINAL PLATING	Gold
TERMINAL TYPE	Solid 22-18 GA
GENDER	Pin-Male
DTM Shrink Boot Lip (Plug Side Only)	Without Shrink Boot Lip
DT Shrink Boot Lip (Plug Side Only)	Without Shrink Boot Lip

Price $4.514 / EA

Shipping details

Availability: Out of Stock - on backorder and will be dispatched once in stock.

Quantity:

AS9120B & ISO 9001 certified
Genuine components
We only sell genuine components and have a strict counterfeit policy.
How we prevent counterfeits
- Vetted suppliers only. We buy from thoroughly vetted suppliers, and every receipt is inspected and stored securely.
- Manufacturer markings kept. Where the manufacturer brands or marks its parts, those markings stay on them. Not every manufacturer marks its parts.
- Suspect parts are quarantined. If we encounter a suspect part, it's quarantined and investigated, and reported to the relevant authorities.
Our processes are audited under AS9120B. Buying from the gray market carries a real counterfeit risk, even when lead times are long. If you suspect a counterfeit, quarantine it and contact us. Read more
