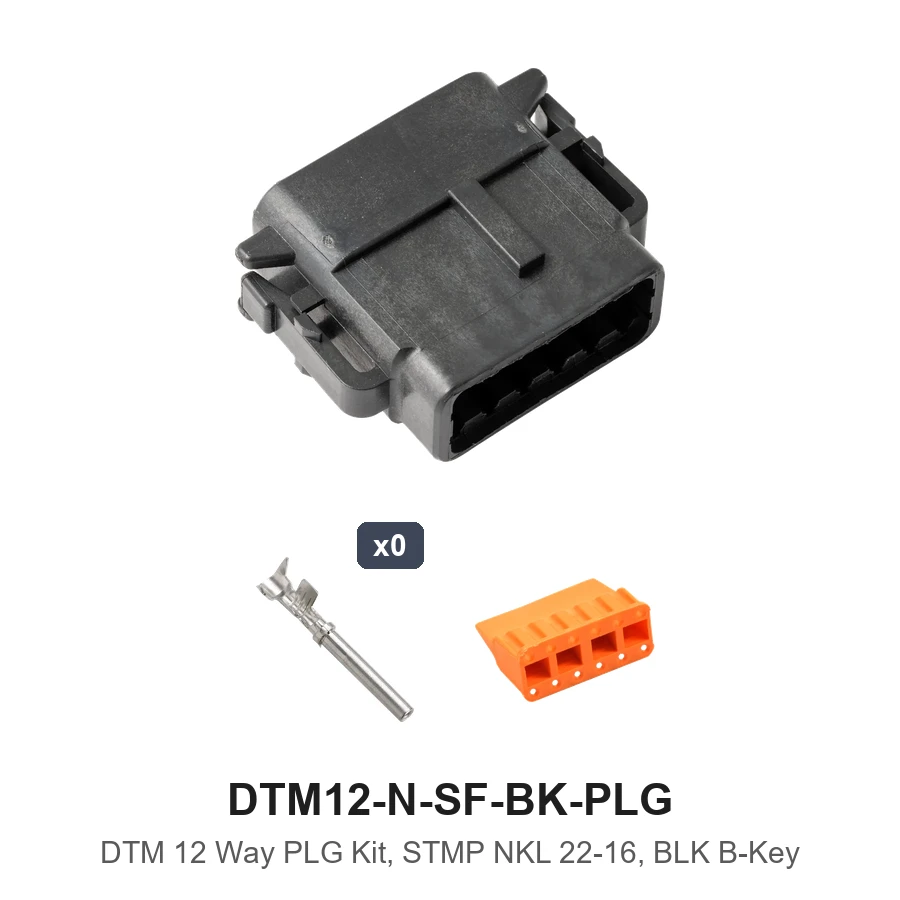

DTM12-N-SF-BK-PLG Deutsch DTM 12-Way Plug Kit

Name: DTM 12 Way Plug Kit Nickle Stamped Black
SKU: DTM12-N-SF-BK-PLG
Price: 8.23 USD
Availability: InStock

Item No. DTM12-N-SF-BK-PLG

DTM 12 Way Plug Kit Nickel Stamped Black

$8.23 / EA

Price Breaks

PRICE BREAKS - The more you buy, the more you save

Quantity / EA	Price / EA	Ext. Price
1	$8.23	$8.23
10	$8.075	$80.75
25	$7.58	$189.50
50	$6.59	$329.50
100	$6.25	$625.00
250	$5.755	$1438.75
500	$4.95	$2475.00
1,000	$4.27	$4270.00

What's in this kit

Some items in this kit may not be listed below, as they may not be available for purchase separately.

Part	In kit	Price
WM-12S WM-12S 2,280 in stock	×1	$0.206
DTM06-12SB DTM06-12SB BLACK B KEYWAY 148 in stock	×1	$3.402
1062-20-0122 SOC, SF, SIZE 20, 16-22 AWG, NI 242 in stock	×12	$0.393

Features & details

DTM12-N-SF-BK-PLG is a ProWireUSA DTM connector kit built from genuine TE Connectivity/DEUTSCH parts. It includes everything to build one 12-way plug: the plug housing, its wedgelock, and the socket contacts, packed together so nothing is missing when you sit down to build the harness.

Need a different size, plating, color or boot option? Build your own kit with our Deutsch Kit Builder Tool

To purchase a master kit, also known as a shop kit, please visit our Master Kits Page

DTM12-N-SF-BK-PLG Details

Series: Deutsch DTM
Kit Type: Plug Kit
Positions: 12
Contacts: Stamped barrel, size 20, nickel plated, 22-16 AWG
Housing Color: Black
Keyway: B
Mounting: Inline / Free Hang

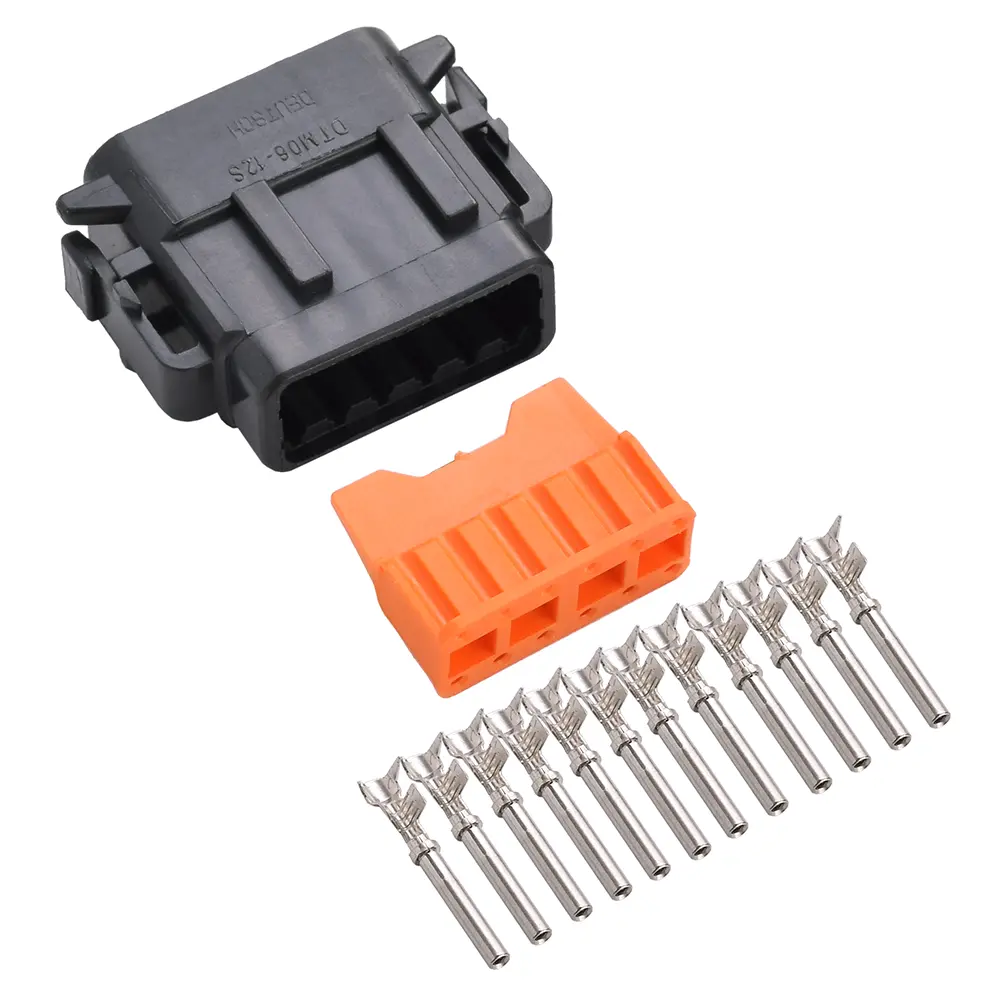

This Kit Includes

12 x 1062-20-0122 - stamped nickel socket contacts
1 x DTM06-12SB - 12-way plug housing
1 x WM-12S - plug wedgelock

Recommended Tools (sold separately)

DTT-20-00 - HAND CRIMP TOOL STAMPED CONTACTS SIZE 20
1026-CT - OPEN BARREL CONTACT CRIMP TOOL 30-16 AWG
DT-RT1 - DT DTM DTP WEDGELOCK REMOVAL TOOL

Optional Add-Ons

0413-204-2005 - SEALING PLUG, SIZE 20, RED

Technical Information

Each part in this kit has its own page with TE's datasheet and 3D CAD model under Documents.
DTM series connectors are compatible with Amphenol ATM series connectors and related accessories.

Product specification

Mounting Type	Inline / Free Hang
SERIES	DTM
Kit Type	Plug Kit
Housing Color	Black
No Of Positions	12
Wire Gauge Range	22-16 Ga.
Voltage Rating	250 VDC
OEM Crimp Tool	DTT-20-00
Minimum Operating Temp	-55C
Max Operating Temp	125C
Ingess Sealing	IP68
Econo Crimp Tool	1026 CT
Current Rating	13 Amps
Conn.Gender	Plug-Male
DTM Kit Type	Plug Kit
TERMINAL PLATING	Nickle
TERMINAL TYPE	Stamped 22-16 GA
GENDER	Socket-Female
DTM Shrink Boot Lip (Plug Side Only)	Without Shrink Boot Lip
DT Shrink Boot Lip (Plug Side Only)	Without Shrink Boot Lip
