DT6-N-SF-RCP-FLG Deutsch DT 6-Way Flanged Receptacle Kit

Name: DT 6 Way Flanged Kit Stamped Nickle Recep
SKU: DT6-N-SF-RCP-FLG
Price: 9.96 USD
Availability: InStock

Item No. DT6-N-SF-RCP-FLG

DT 6 Way Flanged Kit Stamped Nickel Recep

$9.955 / EA

Price Breaks

PRICE BREAKS - The more you buy, the more you save

Quantity / EA	Price / EA	Ext. Price
1	$9.955	$9.96
10	$9.772	$97.72
25	$9.187	$229.68
50	$7.979	$398.95
100	$7.576	$757.60
250	$6.991	$1747.75
500	$6.002	$3001.00
1,000	$5.197	$5197.00

What's in this kit

Some items in this kit may not be listed below, as they may not be available for purchase separately.

Part	In kit	Price
DT04-6P-L012 DT 6 WAY FLANGED RECEPTACLE 36 in stock	×1	$6.285
1060-16-0122 DT SIZE 16 PIN NICKEL STAMPED 14-18 GA 1,716 in stock	×6	$0.246
W6P W6P 2,187 in stock	×1	$0.111

Features & details

DT6-N-SF-RCP-FLG is a ProWireUSA DT connector kit built from genuine TE Connectivity/DEUTSCH parts. It includes everything to build one 6-way panel-mount flanged receptacle: the flanged receptacle housing, its wedgelock, and the pin contacts, packed together so nothing is missing when you sit down to build the harness.

Need a different size, plating, color or boot option? Build your own kit with our Deutsch Kit Builder Tool

To purchase a master kit, also known as a shop kit, please visit our Master Kits Page

DT6-N-SF-RCP-FLG Details

Series: Deutsch DT
Kit Type: Flanged Receptacle Kit
Positions: 6
Contacts: Stamped barrel, size 16, nickel plated, 18-14 AWG
Housing Color: Gray
Keyway: A
Mounting: 4 Bolt Flange

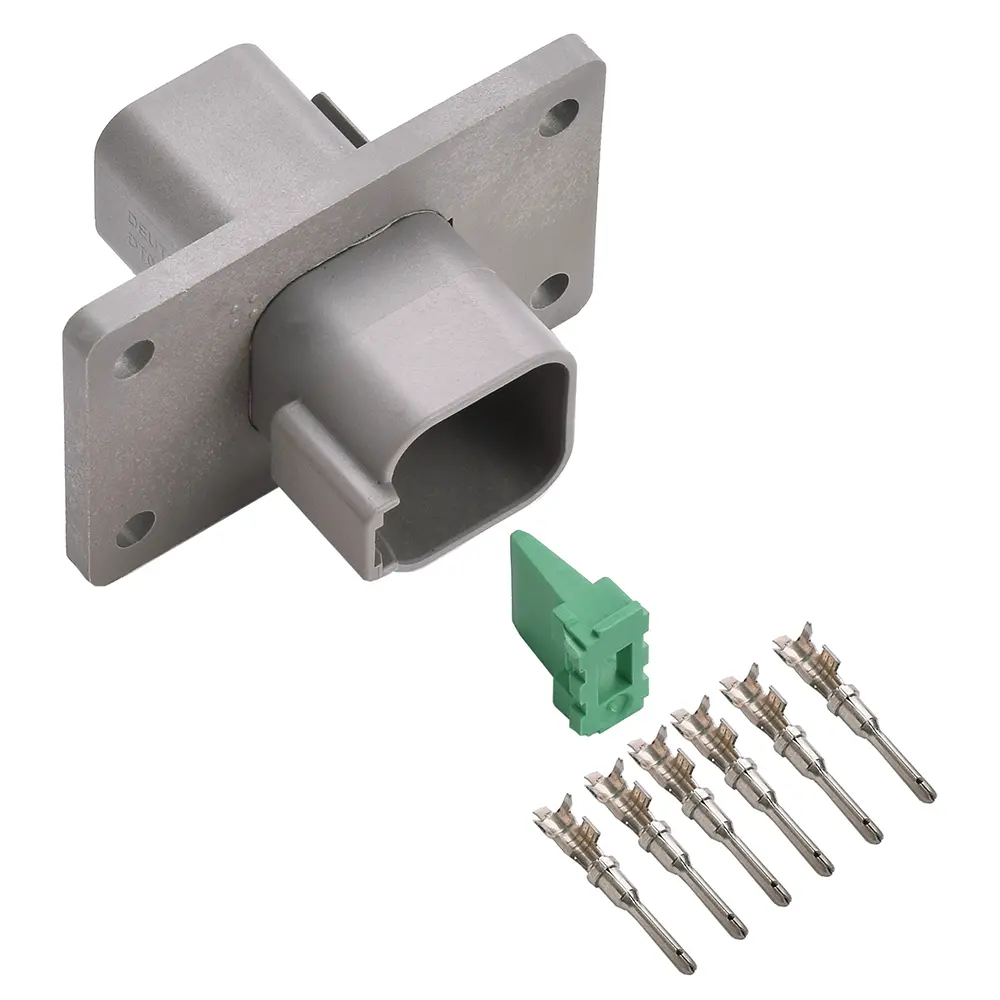

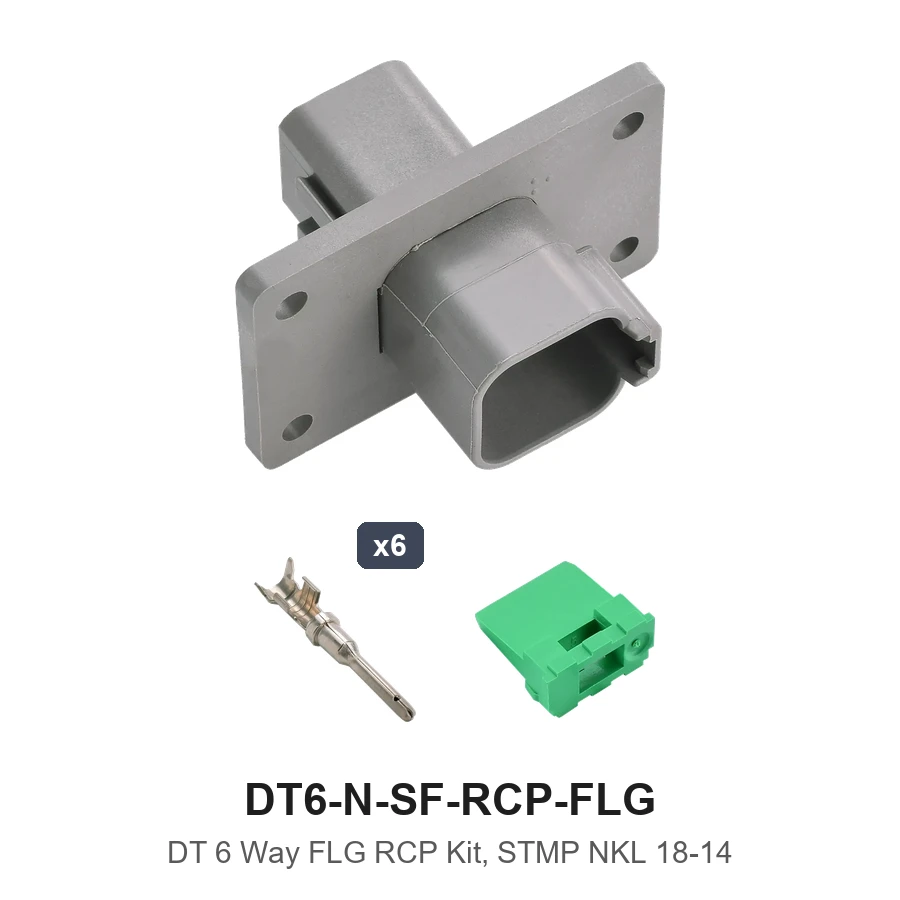

This Kit Includes

6 x 1060-16-0122 - stamped nickel pin contacts
1 x DT04-6P-L012 - 6-way receptacle housing (flanged)
1 x W6P - receptacle wedgelock

Recommended Tools (sold separately)

DTT-16-00 - HAND CRIMP TOOL STAMPED CONTACTS SIZE 16
1028-CT - OPEN BARREL CONTACT CRIMP TOOL 24-14 AWG
DT-RT1 - DT DTM DTP WEDGELOCK REMOVAL TOOL

Optional Add-Ons

202K232-25-0 - DOUBLE REDUCTION LIPPED STRAIGHT BOOT
ADHESIVES-KIT - EPOXY /DISPENSER/ 10 PC MIXER KIT
RT125-DS-050 - RESINTECH RT125 EPOXY
62-9170-9930-1 - RESIN TECH EPOXY APPLICATOR
RT-NOZZLE - EPOXY MIXER
114017 - DT/DTP SIZE 16/12 CAVITY SEALING PLUG

Technical Information

Each part in this kit has its own page with TE's datasheet and 3D CAD model under Documents.
DT series connectors are compatible with Amphenol AT series connectors and related accessories.

Product specification

Mounting Type	4 Bolt Flange
SERIES	DT
Kit Type	Flanged Receptacle Kit
Housing Color	Gray
No Of Positions	6
Wire Gauge Range	18-14 Ga
Voltage Rating	250 VDC
OEM Crimp Tool	HDT-48-00
Minimum Operating Temp	-55C
Max Operating Temp	125C
Ingess Sealing	IP68
Econo Crimp Tool	18880
Current Rating	13 Amps
Conn.Gender	Receptacle-Female
DT Kit Type	Flanged Receptacle Kit
TERMINAL PLATING	Nickle
TERMINAL TYPE	Stamped 18-14 GA
GENDER	Pin-Male
DT Shrink Boot Lip (Plug Side Only)	Without Shrink Boot Lip

Price $9.955 / EA

Shipping details

Availability: 36 Each In Stock, ready to be shipped

Quantity:

AS9120B & ISO 9001 certified
Genuine components
We only sell genuine components and have a strict counterfeit policy.
How we prevent counterfeits
- Vetted suppliers only. We buy from thoroughly vetted suppliers, and every receipt is inspected and stored securely.
- Manufacturer markings kept. Where the manufacturer brands or marks its parts, those markings stay on them. Not every manufacturer marks its parts.
- Suspect parts are quarantined. If we encounter a suspect part, it's quarantined and investigated, and reported to the relevant authorities.
Our processes are audited under AS9120B. Buying from the gray market carries a real counterfeit risk, even when lead times are long. If you suspect a counterfeit, quarantine it and contact us. Read more
