DTM12-N-16-FLG Deutsch DTM 12-Way Flanged Kit

Name: DTM 12 Way Flanged Nickle Solid 18-16
SKU: DTM12-N-16-FLG
Price: 31.66 USD
Availability: InStock

Item No. DTM12-N-16-FLG

DTM 12 Way Flanged Nickel Solid 18-16

$31.661 / EA

Price Breaks

PRICE BREAKS - The more you buy, the more you save

Quantity / EA	Price / EA	Ext. Price
1	$31.661	$31.66
10	$31.079	$310.79
25	$29.216	$730.40
50	$25.375	$1268.75
100	$24.095	$2409.50
250	$22.232	$5558.00
500	$19.09	$9545.00
1,000	$16.529	$16529.00

What's in this kit

Some items in this kit may not be listed below, as they may not be available for purchase separately.

Part	In kit	Price
0462-005-20141 SOC, SOLID, SIZE 20, 16-18 AWG, NI 3,859 in stock	×12	$0.872
WM-12S WM-12S 2,280 in stock	×1	$0.206
0460-010-20141 PIN, SOLID, SIZE 20, 16-18 AWG, NI 4,737 in stock	×12	$0.423
DTM06-12SA DTM06-12SA 56 in stock	×1	$4.551
DTM04-12PA-L012 DTM 12 WAY FLANGED RECEPTACLE CONNECTOR 101 in stock	×1	$6.758
WM-12P WM-12P 4,210 in stock	×1	$0.225

Features & details

DTM12-N-16-FLG is a ProWireUSA DTM connector kit built from genuine TE Connectivity/DEUTSCH parts. It includes everything to build one complete 12-way connector pair with a panel-mount flange receptacle: the plug and flanged receptacle housings, both wedgelocks, and the contacts for both sides, packed together so nothing is missing when you sit down to build the harness.

Need a different size, plating, color or boot option? Build your own kit with our Deutsch Kit Builder Tool

To purchase a master kit, also known as a shop kit, please visit our Master Kits Page

DTM12-N-16-FLG Details

Series: Deutsch DTM
Kit Type: Flanged Kit
Positions: 12
Contacts: Solid barrel, size 20, nickel plated, 18-16 AWG
Housing Color: Gray
Keyway: A
Mounting: 4 Bolt Flange

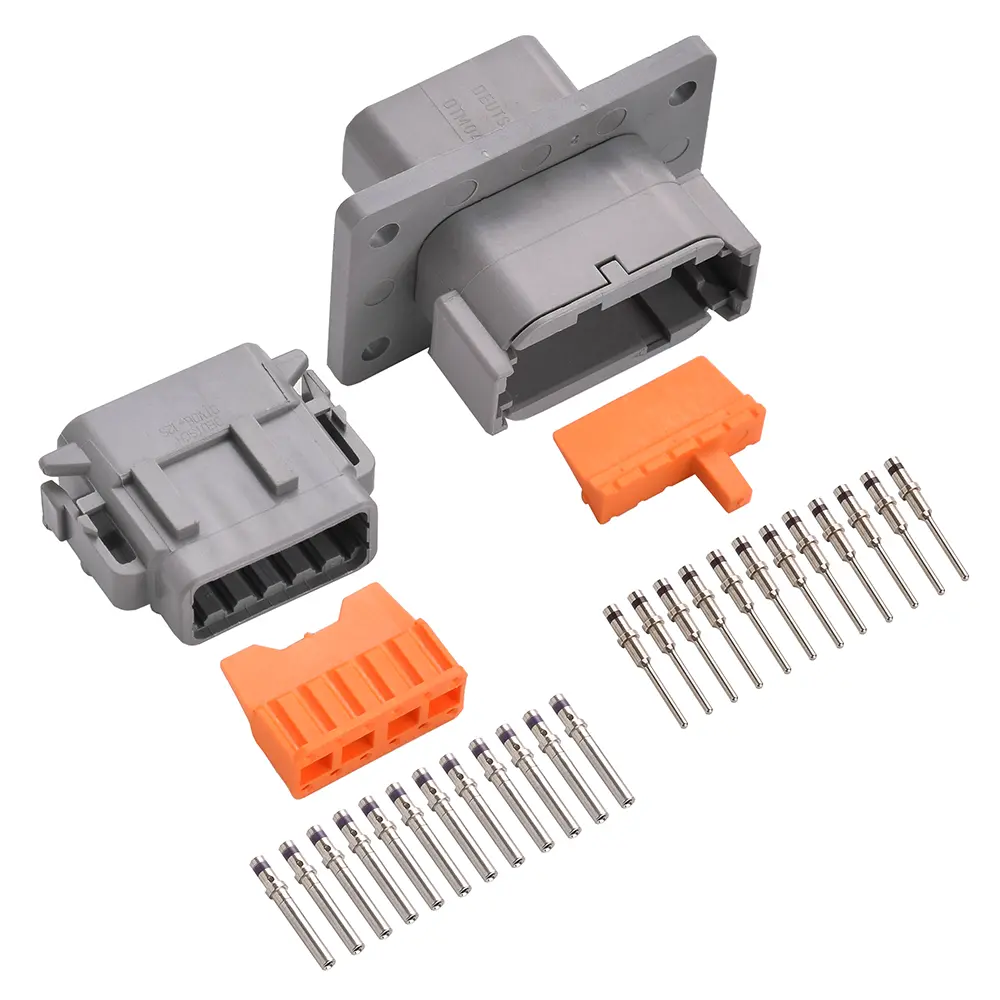

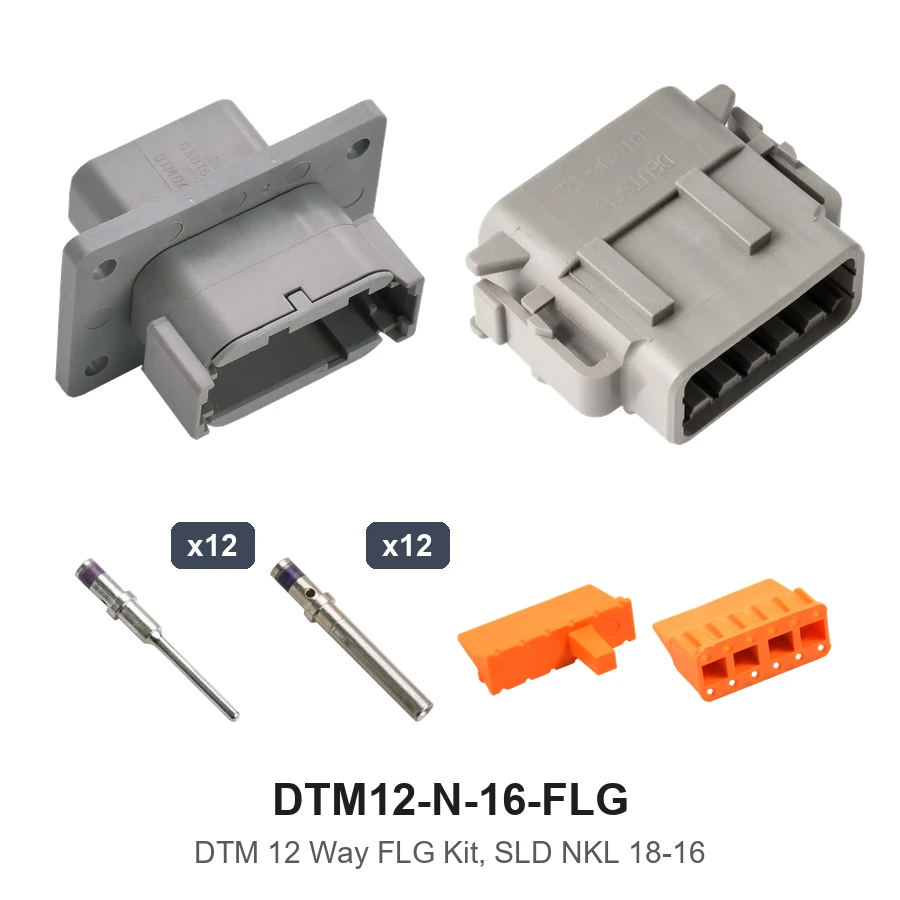

This Kit Includes

12 x 0460-010-20141 - solid nickel pin contacts
12 x 0462-005-20141 - solid nickel socket contacts
1 x DTM04-12PA-L012 - 12-way receptacle housing (flanged)
1 x DTM06-12SA - 12-way plug housing
1 x WM-12P - receptacle wedgelock
1 x WM-12S - plug wedgelock

Recommended Tools (sold separately)

HDT-48-00 - DEUTSCH HDT-48-00 SOLID BARREL CRIMP TOOL
18890 - DEUTSCH DTM/MIL SIZE 20 CRIMP TOOL
DT-RT1 - DT DTM DTP WEDGELOCK REMOVAL TOOL

Optional Add-Ons

202K232-25-0 - DOUBLE REDUCTION LIPPED STRAIGHT BOOT
ADHESIVES-KIT - EPOXY /DISPENSER/ 10 PC MIXER KIT
RT125-DS-050 - RESINTECH RT125 EPOXY
62-9170-9930-1 - RESIN TECH EPOXY APPLICATOR
RT-NOZZLE - EPOXY MIXER
0413-204-2005 - SEALING PLUG, SIZE 20, RED

Technical Information

Each part in this kit has its own page with TE's datasheet and 3D CAD model under Documents.
DTM series connectors are compatible with Amphenol ATM series connectors and related accessories.

Product specification

Mounting Type	Inline / Free Hang
SERIES	DTM
Kit Type	Flanged Kit
Housing Color	Gray
No Of Positions	12
Wire Gauge Range	18-16 Ga.
Voltage Rating	250 VDC
OEM Crimp Tool	HDT-48-00
Minimum Operating Temp	-55C
Max Operating Temp	125C
Ingess Sealing	IP68
Econo Crimp Tool	18890
Current Rating	13 Amps
Conn.Gender	Male/Female
DTM Kit Type	Flanged Kit
TERMINAL PLATING	Nickle
TERMINAL TYPE	Solid 18-16 GA
GENDER	Male & Female
DTM Shrink Boot Lip (Plug Side Only)	Without Shrink Boot Lip
DT Shrink Boot Lip (Plug Side Only)	Without Shrink Boot Lip

Price $31.661 / EA

Shipping details

Availability: 58 Each In Stock, ready to be shipped

Quantity:

AS9120B & ISO 9001 certified
Genuine components
We only sell genuine components and have a strict counterfeit policy.
How we prevent counterfeits
- Vetted suppliers only. We buy from thoroughly vetted suppliers, and every receipt is inspected and stored securely.
- Manufacturer markings kept. Where the manufacturer brands or marks its parts, those markings stay on them. Not every manufacturer marks its parts.
- Suspect parts are quarantined. If we encounter a suspect part, it's quarantined and investigated, and reported to the relevant authorities.
Our processes are audited under AS9120B. Buying from the gray market carries a real counterfeit risk, even when lead times are long. If you suspect a counterfeit, quarantine it and contact us. Read more
