DTP4-N-SF-RCP-FLG Deutsch DTP 4-Way Flanged Receptacle Kit

Name: DTP 4 Way Flanged Recep Kit Stamped Nickel
SKU: DTP4-N-SF-RCP-FLG
Price: 19.35 USD
Availability: InStock

Item No. DTP4-N-SF-RCP-FLG

$19.347 / EA

What's in this kit

Some items in this kit may not be listed below, as they may not be available for purchase separately.

Part	In kit	Price
1060-12-0166 DTP SIZE 12 (14-12 GA) PIN NICKEL STAMPED 1,590 in stock	×4	$0.549
WP-4P WP-4P 1,393 in stock	×1	$0.323
DTP04-4P-L012 DTP 4 WAY FLANGED RECEPTACLE 94 in stock	×1	$7.275

Features & details

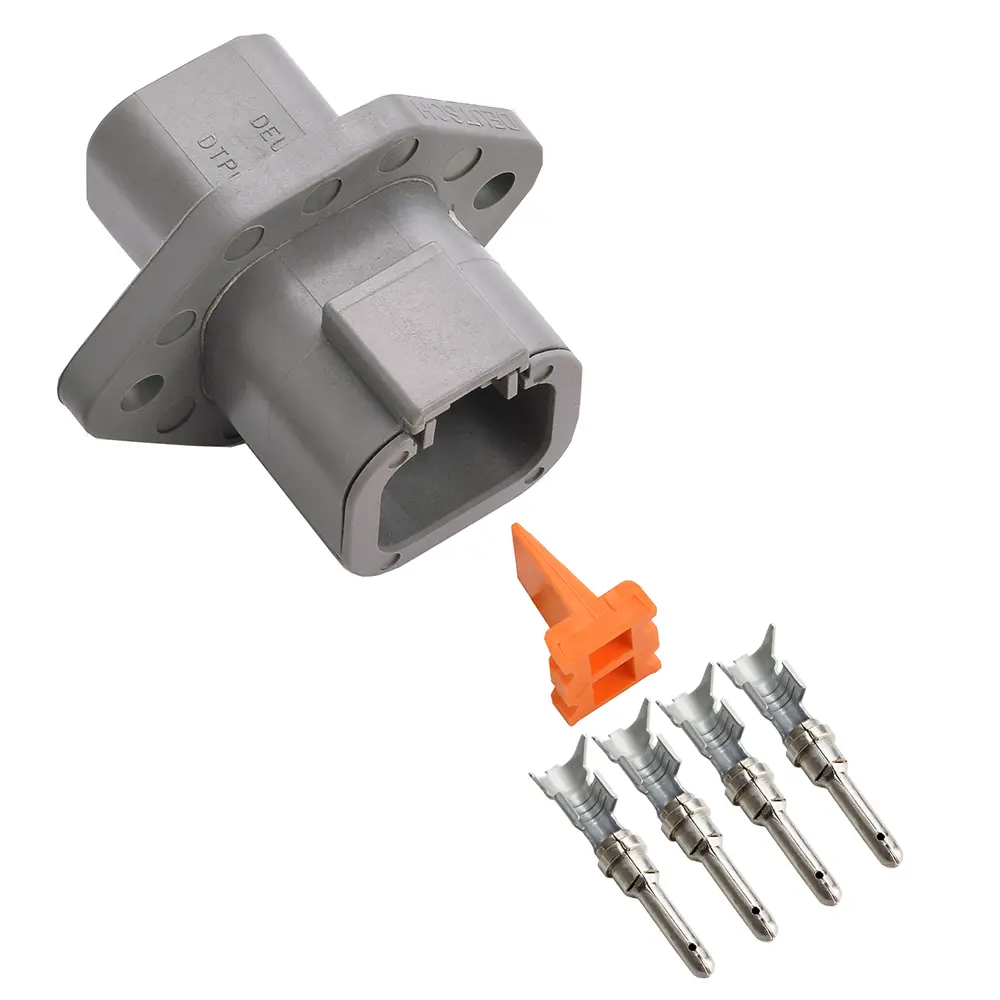

DTP4-N-SF-RCP-FLG is a ProWireUSA DTP connector kit built from genuine TE Connectivity/DEUTSCH parts. It includes everything to build one 4-way panel-mount flanged receptacle: the flanged receptacle housing, its wedgelock, and the pin contacts, packed together so nothing is missing when you sit down to build the harness.

Need a different size, plating, color or boot option? Build your own kit with our Deutsch Kit Builder Tool

To purchase a master kit, also known as a shop kit, please visit our Master Kits Page

DTP4-N-SF-RCP-FLG Details

Series: Deutsch DTP
Kit Type: Flanged Receptacle Kit
Positions: 4
Contacts: Stamped barrel, size 12, nickel plated, 14-12 AWG
Housing Color: Gray
Keyway: A
Mounting: 4 Bolt Flange

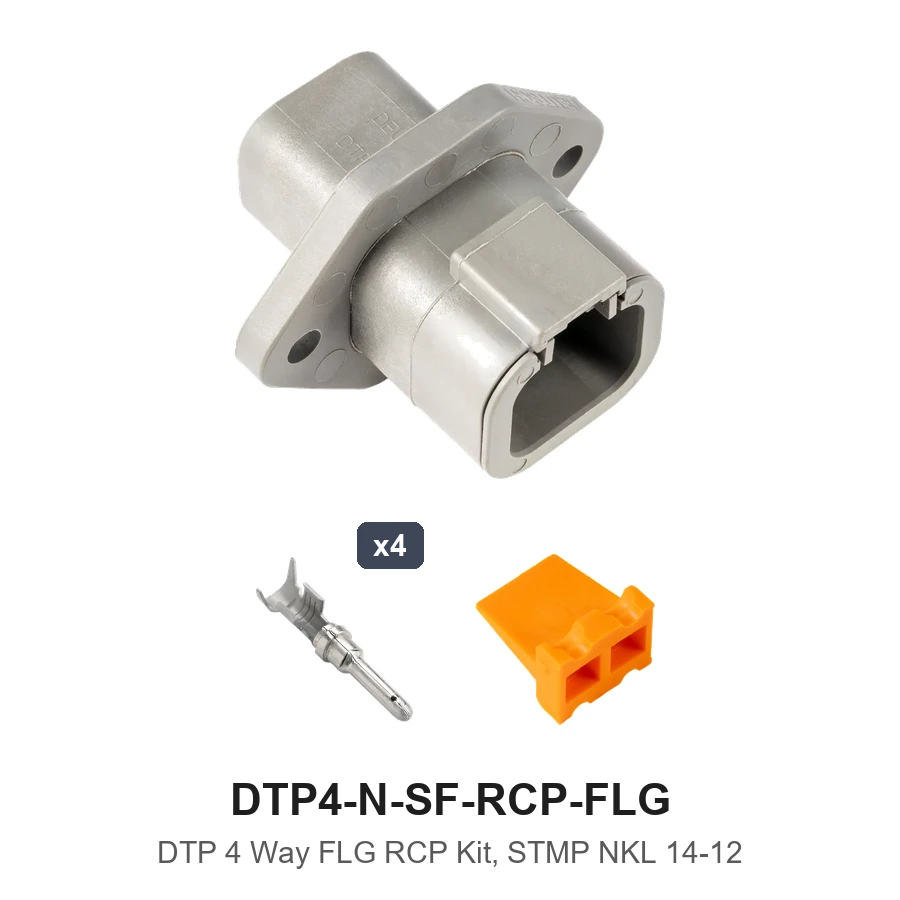

This Kit Includes

4 x 1060-12-0166 - stamped nickel pin contacts
1 x DTP04-4P-L012 - 4-way receptacle housing (flanged)
1 x WP-4P - receptacle wedgelock

Recommended Tools (sold separately)

DTT-12-00 - HAND CRIMP TOOL STAMPED CONTACTS SIZE 12
18610 - OPEN BARREL CRIMPING TOOL FOR 10-26 AWG TERMINALS
DT-RT1 - DT DTM DTP WEDGELOCK REMOVAL TOOL

Optional Add-Ons

114017 - DT/DTP SIZE 16/12 CAVITY SEALING PLUG

Technical Information

Each part in this kit has its own page with TE's datasheet and 3D CAD model under Documents.
DTP series connectors are compatible with Amphenol ATP series connectors and related accessories.

Product specification

Mounting Type	Inline / Free Hang
SERIES	DTP
Kit Type	Flanged Receptacle Kit
Housing Color	Gray
No Of Positions	4
Wire Gauge Range	10 Ga.
Voltage Rating	250 VDC
OEM Crimp Tool	DTT-12-00
Minimum Operating Temp	-55C
Max Operating Temp	125C
Ingess Sealing	IP68
Current Rating	25 Amps
Conn.Gender	Receptacle-Female
DTP Kit Type	Flanged Receptacle Kit
TERMINAL PLATING	Nickle
TERMINAL TYPE	Stamped 14-12 GA
GENDER	Pin-Male
DT Shrink Boot Lip (Plug Side Only)	None

Price $19.347 / EA
