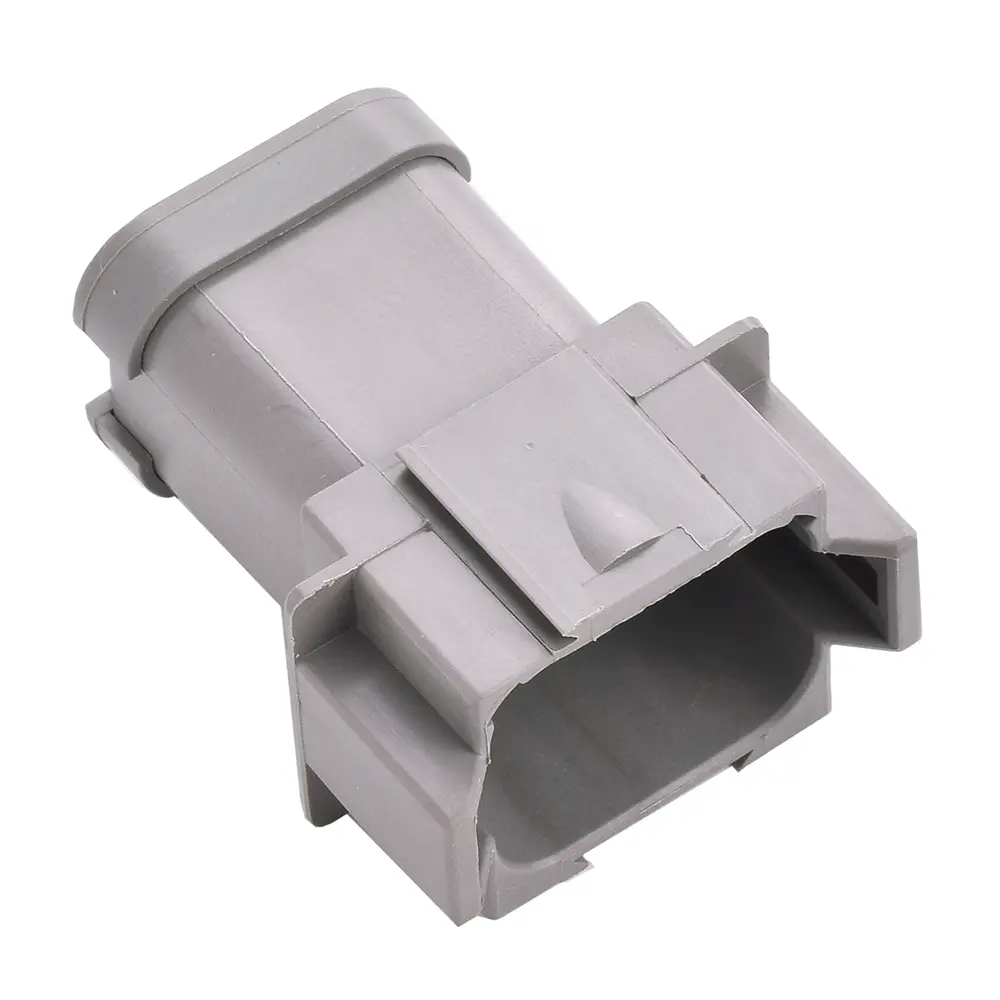

DT04-08PA-P026 DT 8 Way Receptacle A Key, Bussed

Deutsch
Item No. DT04-08PA-P026
$14.858 / EA
Features & details

Deutsch DT series 8 way bussed receptacle connector, perfect when you need to join multiple power or ground wires together at a single point.

Specifications:

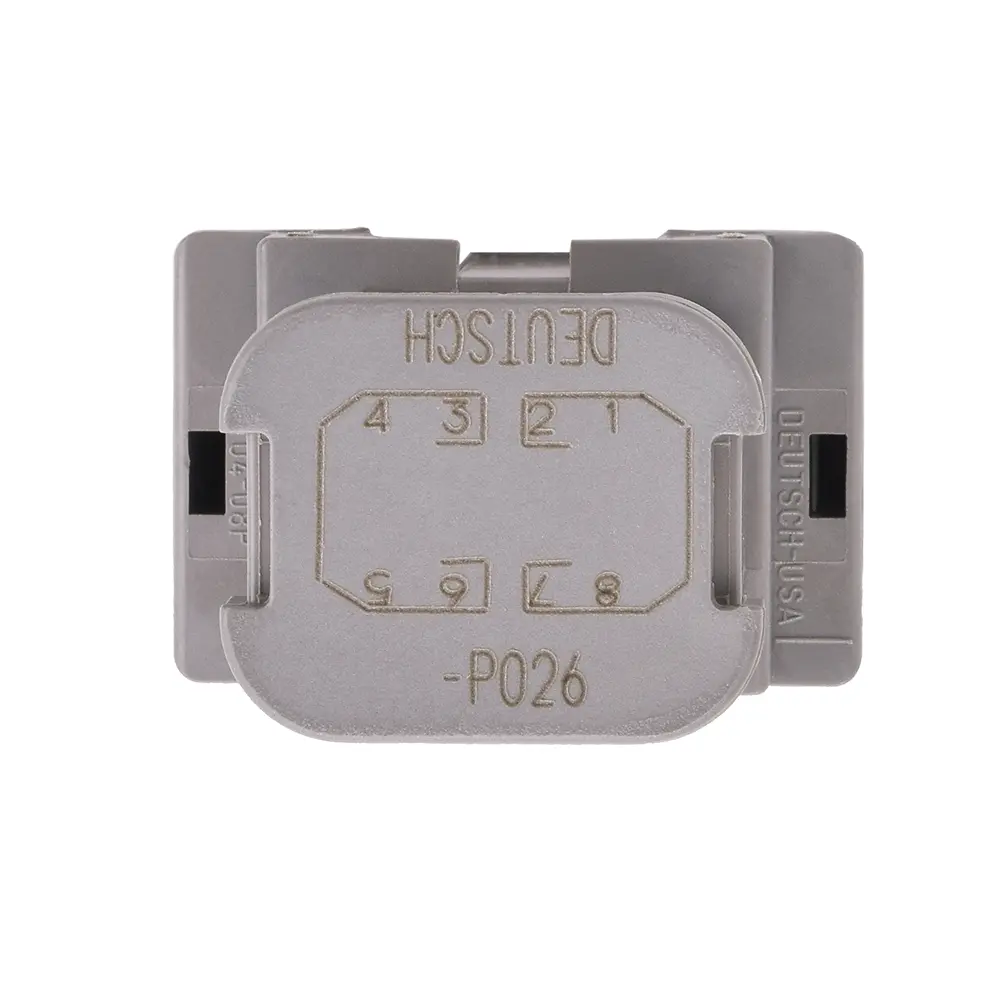

  • 2 separate 4 pin busses
  • Pins 1,2,7,8 are bussed together 26 amps max
  • Pins 3,4,5,6 are bussed together 26 amps max
  • The 8 pin bussbar connector has a maximum current rating of 52 amps
  • Contacts are molded into connector, wedgelock is included
  • Mating connector is DT06-08SA or DT06-08SA-E008
