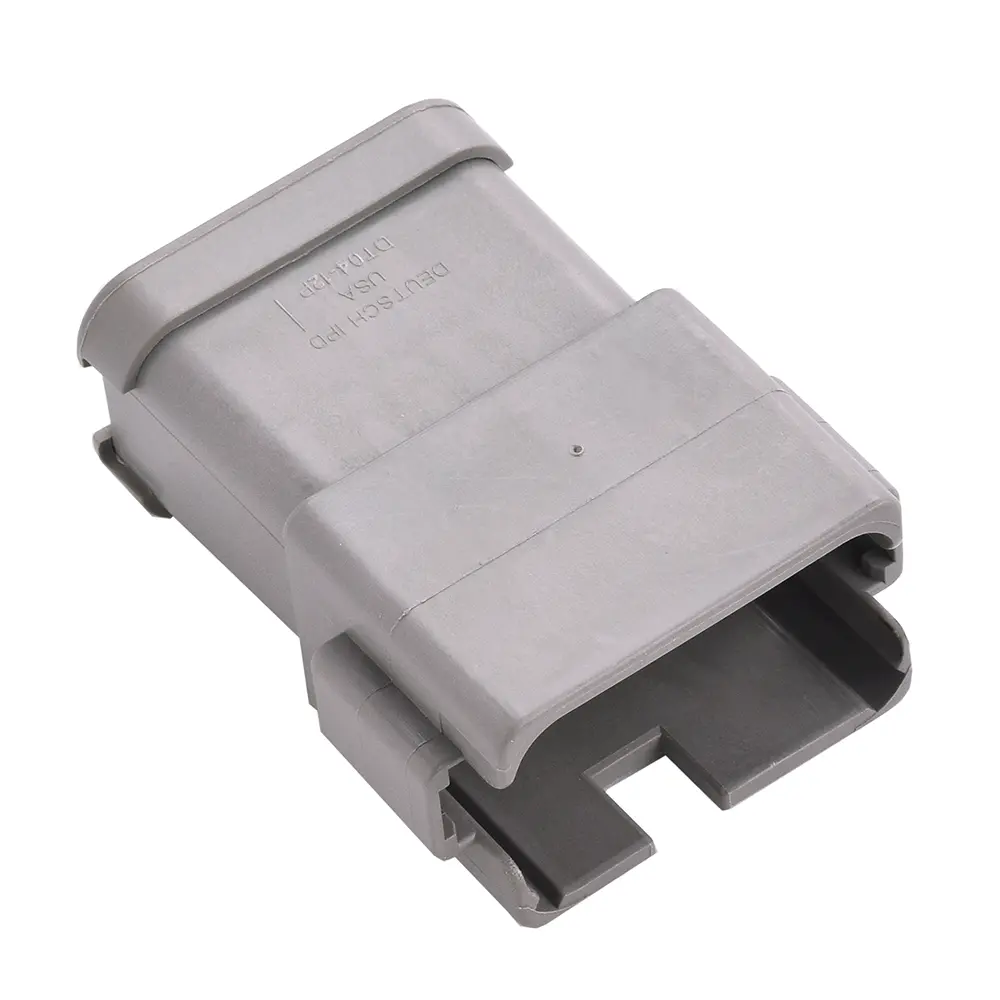

DT04-12PA-P026 DT 12 Way Receptacle A Key, Bussed

Deutsch
Item No. DT04-12PA-P026
$17.048 / EA
Features & details

Deutsch DT series 12 way bussed receptacle connector, perfect when you need to join multiple power or ground wires together at a single point.

Specifications:

  • 2 separate busses

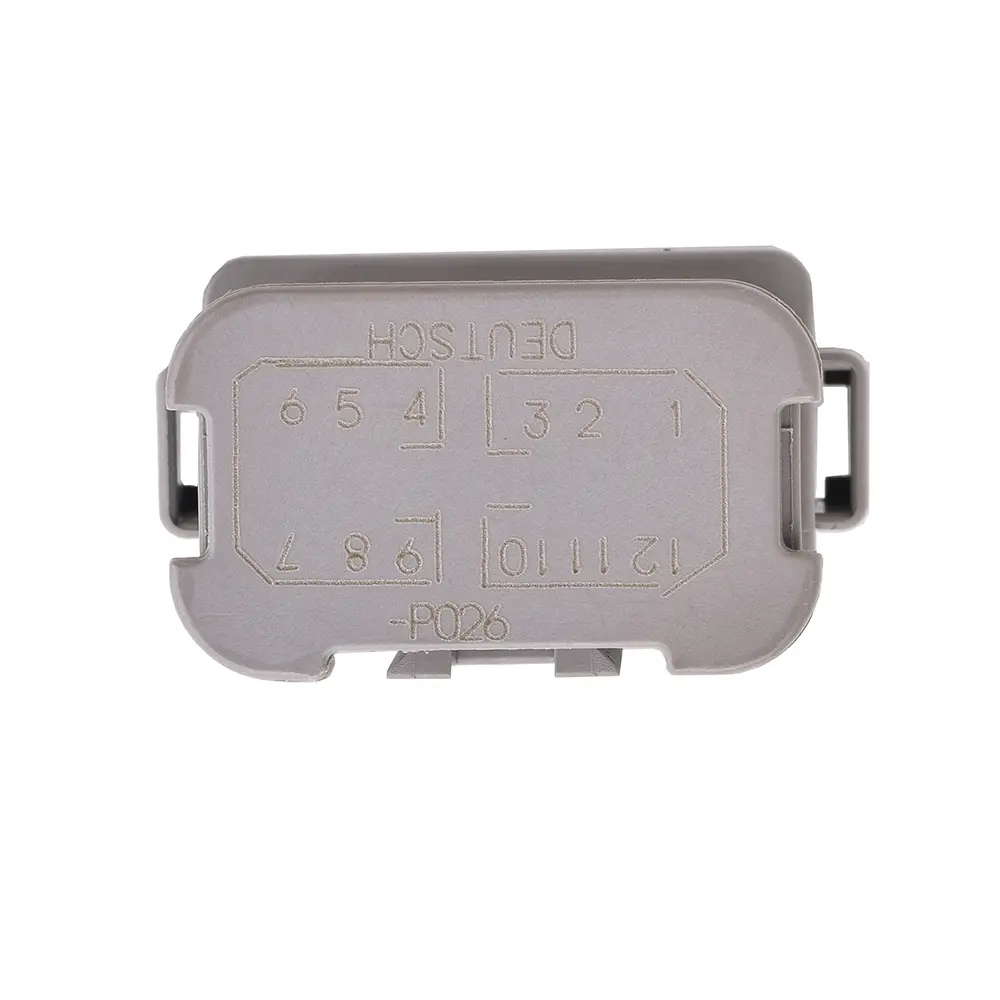

  • Pins 1,2,3,10,11 are bussed together 39 amps max
  • Pins 4,5,6,7,8,9 are bussed together 39 amps max
  • The 12 pin connector bussbar has a maximum current rating of 78 amps
  • Contacts are molded into connector, wedgelock is included
  • Mating connector is DT06-12SA or DT06-12SA-E008
